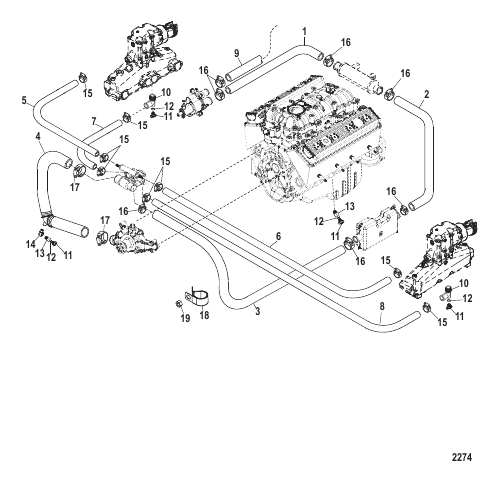

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863611 |
РУКАВ Sea Water Pump to Transmision Cooler HOSE Sea Water Pump to Transmision Cooler |
1 | |
| 10 | 862210A01 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА Слив ELBOW KIT Drain |
2 | |
| 11 | 806608A1 |
Комплект пробки (0.500-13), королевский синий PLUG KIT (.500-13) Royal Blue |
1 | superseded |
| 12 | 62706 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.426 x 0.070) O-RING (.426 x .070) |
1 | |
| 13 | 860088 |
ВТУЛКА BUSHING |
1 | superseded |
| 14 | 46982 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 15 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
AR | |
| 16 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
AR | superseded |
| 17 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
AR | |
| 18 | 47715 |
ЗАЖИМ Hose CLIP Hose |
1 | disc. |
| 19 | 29250 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 2 | 8600891 |
РУКАВ Литой Transmision Cooler to Fuel Cooler HOSE Molded Transmision Cooler to Fuel Cooler |
1 | |
| 3 | 808033 |
РУКАВ Литой Fuel Cooler to Thermostat Housing HOSE Molded Fuel Cooler to Thermostat Housing |
1 | |
| 4 | 861590A05 |
ШЛАНГ В СБОРЕ Circulation Pump to Thermostat Housing HOSE ASSEMBLY Circulation Pump to Thermostat Housing |
1 | |
| 5 | 864979 |
РУКАВ Inline HOSE Inline |
1 | |
| 5 | 863813 |
РУКАВ Tee Fitting to Port Elbow V-Drive HOSE Tee Fitting to Port Elbow V-Drive |
1 | |
| 6 | 864979 |
РУКАВ Tee Fitting to Starboard Elbow Inline HOSE Tee Fitting to Starboard Elbow Inline |
1 | |
| 6 | 863813 |
РУКАВ Tee Fitting to Starboard Elbow V-Drive) HOSE Tee Fitting to Starboard Elbow V-Drive) |
1 | |
| 7 | 807697 |
РУКАВ Thermosat Housing to Starboard Manifold HOSE Thermosat Housing to Starboard Manifold |
1 | |
| 8 | 862139 |
РУКАВ Thermosat Housing to Port Manifold HOSE Thermosat Housing to Port Manifold |
1 | |
| 9 | 86334379 |
РУКАВ (Общая длина 96.00") Water Pickup to Seawater Pump HOSE (96.00 Inches Bulk) Water Pickup to Seawater Pump |
1 | superseded |
| NS | 8079923 |
КРЫШКА Hose Clamp End COVER Hose Clamp End |
AR | superseded |
