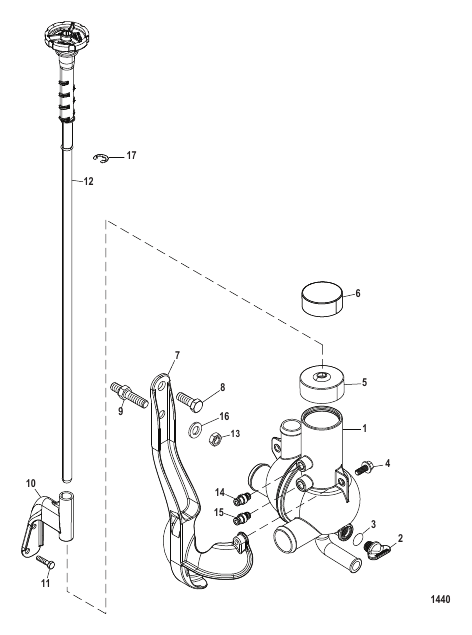

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863631T1 |
КОРПУС Water Distribution (Manual Drain) HOUSING Water Distribution (Manual Drain) |
1 | |
| 1 | 863444T1 |
КОРПУС Water Distribution (Rod Actuated) HOUSING Water Distribution (Rod Actuated) |
1 | |
| 1 | 863802T2 |
КОРПУС Water Distribution (Air Actuated) (Closed Cool) HOUSING Water Distribution (Air Actuated) (Closed Cool) |
1 | |
| 1 | 863444T2 |
КОРПУС Water Distribution (Air Actuated) (Standard Cool) HOUSING Water Distribution (Air Actuated) (Standard Cool) |
1 | |
| 10 | 863451T |
КРОНШТЕЙН Water Drain Actuator BRACKET Water Drain Actuator |
1 | |
| 11 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 12 | 863381A1 |
СТЕРЖЕНЬ ДЛЯ ПРОЧИСТКИ В СБОРЕ DRAIN ROD ASSEMBLY |
1 | |
| 13 | 82671112 |
ГАЙКА (.375-16) NUT (.375-16) |
1 | |
| 14 | 863499 |
ФИТИНГ Серый Air Valve (Component Of Air Actuated Housing Only) FITTING Gray Air Valve (Component Of Air Actuated Housing Only) |
1 | |
| 15 | 863467 |
ФИТИНГ Оранжевый Air Valve (Component Of Air Actuated Housing Only) FITTING Orange Air Valve (Component Of Air Actuated Housing Only) |
1 | |
| 16 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 17 | 863741 |
E-ОБРАЗНОЕ КОЛЬЦО E-RING |
1 | |
| 2 | 806608A1 |
Комплект пробки (0.500-13), королевский синий PLUG KIT (.500-13) Royal Blue |
1 | superseded |
| 3 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
1 | |
| 4 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
3 | |
| 5 | 863839 |
КРЫШКА (Rod Actuated) COVER (Rod Actuated) |
1 | |
| 6 | 863865 |
КРЫШКА (Manual Drain) COVER (Manual Drain) |
1 | |
| 7 | 863449T |
КРОНШТЕЙН Water Distribution Housing BRACKET Water Distribution Housing |
1 | |
| 8 | 98260 |
ВИНТ (0.375-16 x 0.620) SCREW (.375-16 x .620) |
1 | |
| 9 | 805357 |
ШПИЛЬКА (0.375-16 x 2.130) STUD (.375-16 x 2.130) |
1 | superseded |
