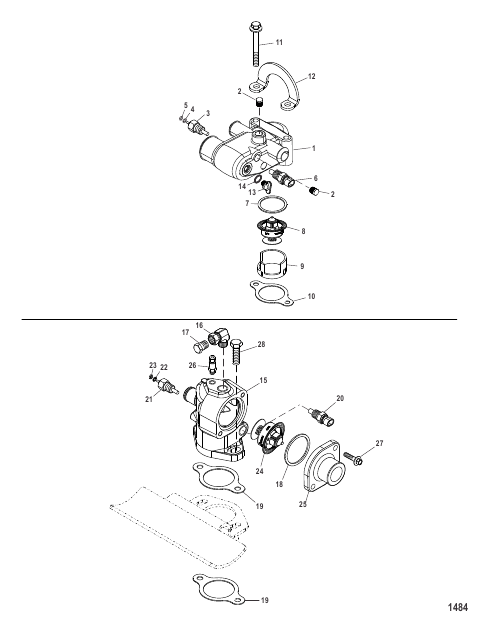

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 807756A01 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 863457A2 |
КОРПУС В СБОРЕ Термостат (Raw Water Cool) (With E/Z Drain Cooling System) HOUSING ASSEMBLY Thermostat (Raw Water Cool) (With E/Z Drain Cooling System) |
1 | |
| 10 | 530451 |
ПРОКЛАДКА Lower Thermostat Housing GASKET Lower Thermostat Housing |
1 | |
| 11 | 4010775 |
ВИНТ (M8 x 75) SCREW (M8 x 75) |
2 | |
| 12 | 12552 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 13 | 806608A1 |
Комплект пробки (0.500-13), королевский синий PLUG KIT (.500-13) Royal Blue |
1 | superseded |
| 14 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
1 | |
| 15 | 863708A2 |
КОРПУС В СБОРЕ Термостат (Fresh Water Cool) (With E/Z Drain Cooling System) HOUSING ASSEMBLY Thermostat (Fresh Water Cool) (With E/Z Drain Cooling System) |
1 | disc. |
| 16 | 35580 |
ФИТИНГ Elbow FITTING Elbow |
1 | |
| 17 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 18 | 8071341 |
УПЛОТНЕНИЕ Thermostat SEAL Thermostat Thermostat |
1 | |
| 19 | 530451 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
2 | |
| 2 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 20 | 805218 |
ДАТЧИК Temperature SENSOR Temperature |
1 | superseded |
| 21 | 806490T |
ДАТЧИК Temperature SENDER Temperature |
1 | |
| 21 | 49734 |
ДАТЧИК Water Temperature (Dual Station) SENDER Water Temperature (Dual Station) |
OPT | |
| 22 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 23 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 24 | 991551 |
ТЕРМОСТАТ THERMOSTAT |
1 | |
| 25 | 807075 |
КРЫШКА Thermostat Housing COVER Thermostat Housing |
1 | superseded |
| 26 | 818390 |
КРАН СЛИВА DRAIN COCK |
1 | |
| 27 | 29198 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 0.875) SCREW AND LOCKWASHER (.312-18 x .875) |
2 | |
| 28 | 40011151 |
ВИНТ (M8 x 35), нержавеющая сталь SCREW (M8 x 35) Stainless Steel |
2 | |
| 3 | 806490T |
ДАТЧИК Water Temperature SENDER Water Temperature |
1 | |
| 3 | 49734 |
ДАТЧИК Water Temperature (Dual Station) SENDER Water Temperature (Dual Station) |
OPT | |
| 4 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
1 | |
| 5 | 68219 |
ГАЙКА (№10-32), нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 6 | 805218T |
ДАТЧИК SENSOR |
1 | |
| 7 | 806871 |
ПРОКЛАДКА Thermostat Housing GASKET Thermostat Housing |
1 | superseded |
| 8 | 807252T2 |
ТЕРМОСТАТ 71 град. Цельсия (160 град. Фаренгейта) THERMOSTAT 71DegreeC (160 Degree F) |
1 | superseded |
| 9 | 806922 |
РУКАВ Thermostat SLEEVE Thermostat |
1 | superseded |
