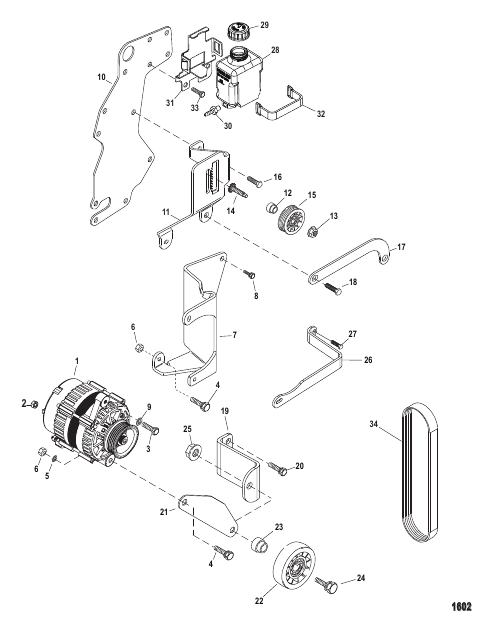

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 862031T1 |
ГЕНЕРАТОР В СБОРЕ (65 Amp - With 62mm Pulley) [0M320024] & Below ALTERNATOR ASSEMBLY (65 Amp - With 62mm Pulley) [0M320024] & Below |
1 | |
| 1 | 863077T |
ГЕНЕРАТОР В СБОРЕ Черный (65 Amp - With 50mm Pulley) (Non Serviceable) [0M320025] & Up ALTERNATOR ASSEMBLY Black (65 Amp - With 50mm Pulley) (Non Serviceable) [0M320025] & Up |
1 | |
| 10 | 863443T1 |
КРОНШТЕЙН (Standard Cooling) BRACKET (Standard Cooling) |
1 | |
| 10 | 863443T3 |
КРОНШТЕЙН (Closed Cooling) BRACKET (Closed Cooling) |
1 | |
| 11 | 862083T |
КРОНШТЕЙН Idler Adjusting BRACKET Idler Adjusting |
1 | |
| 12 | 818380T |
ВТУЛКА BUSHING |
1 | superseded |
| 13 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием NUT (.437-20) Brass/Nickel Plated |
1 | |
| 14 | 8183812 |
ШПИЛЬКА ШЕСТЕРНИ (.437-20), нержавеющая сталь PINION STUD (.437-20) Stainless Steel |
1 | superseded |
| 15 | 807757T |
ШКИВ В СБОРЕ Холостой ролик – черный (3 Inch Diameter) [0M320024] & Below PULLEY ASSEMBLY Idler - Black (3 Inch Diameter) [0M320024] & Below |
1 | |
| 15 | 864625T |
ШКИВ (4.25 Inch Diameter) (With Power Steering) [0M320025] & Up PULLEY (4.25 Inch Diameter) (With Power Steering) [0M320025] & Up |
1 | |
| 15 | 807757T |
ШКИВ В СБОРЕ Холостой ролик – черный (3 Inch Diameter) (CHS and Non Power Steering) [0M320025] & Up PULLEY ASSEMBLY Idler - Black (3 Inch Diameter) (CHS and Non Power Steering) [0M320025] & Up |
1 | |
| 16 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 17 | 862082T |
СКОБА Power Steering Brace BRACE Power Steering Brace |
1 | |
| 18 | 40001188 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
1 | disc. |
| 19 | 864456T |
КРОНШТЕЙН Alternator Brace (Bravo) (Alpha With Sea Pump) BRACKET Alternator Brace (Bravo) (Alpha With Sea Pump) |
1 | |
| 2 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
2 | |
| 20 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 21 | 862085T |
СКОБА Idler Bracket (Bravo) (Alpha With Sea Pump) BRACE Idler Bracket (Bravo) (Alpha With Sea Pump) |
1 | |
| 22 | 818382 |
ШКИВ (Bravo) (Alpha With Sea Pump) PULLEY (Bravo) (Alpha With Sea Pump) |
1 | superseded |
| 23 | 818380T |
ВТУЛКА (Bravo) (Alpha With Sea Pump) BUSHING (Bravo) (Alpha With Sea Pump) |
1 | superseded |
| 24 | 32132 |
ВИНТ (0.375-16 x 1.750) (Bravo) (Alpha With Sea Pump) SCREW (.375-16 x 1.750) (Bravo) (Alpha With Sea Pump) |
1 | |
| 25 | 859135 |
ГАЙКА (0.437-20), с латунным/никелевым покрытием (Bravo) (Alpha With Sea Pump) NUT (.437-20) Brass/Nickel Plated (Bravo) (Alpha With Sea Pump) |
1 | |
| 26 | 862778 |
КРОНШТЕЙН Alternator Brace (Alpha With Out Sea Pump) BRACKET Alternator Brace (Alpha With Out Sea Pump) |
1 | |
| 27 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
1 | |
| 28 | 806193A30 |
РЕЗЕРВУАР Drive Lube Reservoir RESERVOIR Drive Lube Reservoir |
1 | superseded |
| 29 | 8067271 |
ПРОБКА Монитор смазки привода Drive Lube Reservoir Bottle CAP Drive Lube Monitor Drive Lube Reservoir Bottle |
1 | |
| 3 | 40001134 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
1 | |
| 30 | 808624 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 31 | 860065A1 |
КОМПЛЕКТ КРОНШТЕЙНА Oil Bottle - Reservoir Mounting BRACKET KIT Oil Bottle - Reservoir Mounting |
1 | |
| 32 | 808023T |
СКОБА Bracket - Retaining STRAP Bracket - Retaining |
1 | |
| 33 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
3 | |
| 34 | 8620861 |
РЕМЕНЬ Поликлиновый (Alpha) (With Power Steering) [0M320024] & Below BELT Serpentine (Alpha) (With Power Steering) [0M320024] & Below |
1 | superseded |
| 34 | 8638764 |
РЕМЕНЬ Поликлиновый (Alpha Standard Cooling) (With Power Steering) [0M320025] & Up BELT Serpentine (Alpha Standard Cooling) (With Power Steering) [0M320025] & Up |
1 | superseded |
| 34 | 862088 |
РЕМЕНЬ Поликлиновый (Alpha) (CHS And Non Power Steering) [0M320024] & Below BELT Serpentine (Alpha) (CHS And Non Power Steering) [0M320024] & Below |
1 | superseded |
| 34 | 8638769 |
РЕМЕНЬ Поликлиновый (Alpha Standard Cooling) ( CHS And Non Power Steering) [0M320025] & Up BELT Serpentine (Alpha Standard Cooling) ( CHS And Non Power Steering) [0M320025] & Up |
1 | superseded |
| 34 | 862087 |
РЕМЕНЬ Поликлиновый (Bravo) (With Power Steering) [0M320024] & Below BELT Serpentine (Bravo) (With Power Steering) [0M320024] & Below |
1 | superseded |
| 34 | 8638763 |
РЕМЕНЬ Поликлиновый (Bravo) (Alpha Closed Cooling) (With Power Steering) [0M320025] & Up BELT Serpentine (Bravo) (Alpha Closed Cooling) (With Power Steering) [0M320025] & Up |
1 | superseded |
| 34 | 862089 |
РЕМЕНЬ Поликлиновый (Bravo) (CHS And Non Power Steering) [0M320024] & Below BELT Serpentine (Bravo) (CHS And Non Power Steering) [0M320024] & Below |
1 | superseded |
| 34 | 8638768 |
РЕМЕНЬ Поликлиновый (Bravo) (Alpha Closed Cooling) (CHS And Non Power Steering) [0M320025] & Up BELT Serpentine (Bravo) (Alpha Closed Cooling) (CHS And Non Power Steering) [0M320025] & Up |
1 | superseded |
| 4 | 828213 |
ВИНТ Шестигранный фланец (0.312-18 x 1.500) SCREW (.312-18 x 1.500) Hex Flange |
2 | |
| 5 | 57792 |
ШАЙБА WASHER |
2 | |
| 6 | 859119 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 7 | 862055T |
КРОНШТЕЙН Установка генератора BRACKET Alternator Mounting |
1 | superseded |
| 8 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 | |
| 9 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 |
