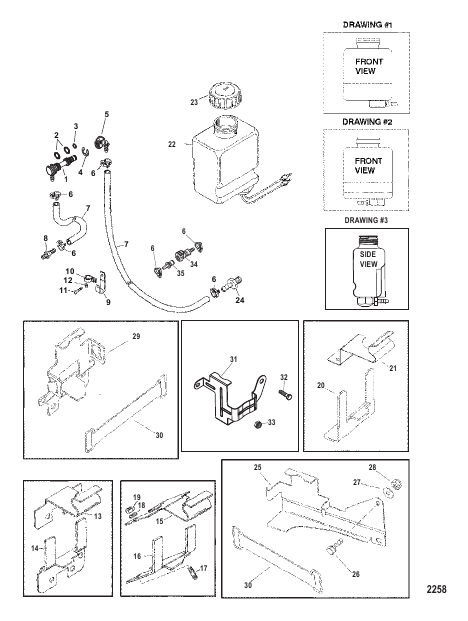

OIL RESERVOIR COMPONENTS
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 806054A1 |
КОМПЛЕКТ ДЛЯ ПЕРЕМЕЩЕНИЯ Масляный резервуар RELOCATION KIT Oil Reservoir |
1 | |
| 1 | 861150A2 |
ФИТИНГИ В СБОРЕ FITTING ASSEMBLY |
1 | superseded |
| 10 | 23567 |
ЗАЖИМ CLIP |
1 | |
| 11 | 60605 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
1 | |
| 12 | 69205 |
C-ШАЙБА C WASHER |
1 | superseded |
| 13 | 806293T |
КРОНШТЕЙН Зажим Clip - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET Clip Clip - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | discontinued |
| 14 | 860065A1 |
КОМПЛЕКТ КРОНШТЕЙНА Oil Bottle - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET KIT Oil Bottle - (3.0L/3.6L4.2L DIESEL 7.4L/7.4LX/454/502) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | |
| 15 | 806292T1 |
КРОНШТЕЙН (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | discontinued |
| 16 | 807025T |
КРОНШТЕЙН (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | discontinued |
| 17 | 805357 |
ШПИЛЬКА (0.375-16 x 2.130) (4.3LX/5.7L/5.7LX) (CARB) STUD (.375-16 x 2.130) (4.3LX/5.7L/5.7LX) (CARB) |
2 | superseded |
| 18 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 19 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 2 | 201951 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.487 x 0.103) O-RING (.487 x .103) |
2 | |
| 20 | 806649T |
КРОНШТЕЙН (262 MAG. EFI) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET (262 MAG. EFI) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | discontinued |
| 21 | 806650T |
КРОНШТЕЙН (5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) BRACKET (5.7L/5.7LX/350 MAGNUM (EFI) 262 MAG. EFI) (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS) |
1 | discontinued |
| 22 | 806193A33 |
МОНИТОР В СБОРЕ Масло (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1) MONITOR ASSEMBLY Oil (FITTING POINTING TOWARD RIGHT SIDE) (SEE DRAWING #1) |
1 | superseded |
| 22 | 806193A30 |
РЕЗЕРВУАР (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2) RESERVOIR (FITTING POINTING TOWARD LEFT SIDE) (SEE DRAWING #2) |
1 | superseded |
| 22 | 806193A37 |
РЕЗЕРВУАР (FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3) RESERVOIR (FITTING POINTING TOWARD FRONT SIDE)(SEE DRAWING #3) |
1 | superseded |
| 23 | 8067271 |
ПРОБКА Монитор смазки привода CAP Drive Lube Monitor |
1 | |
| 24 | 808624 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 25 | 807839T1 |
КРОНШТЕЙН (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS 4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI BRACKET (SEE OIL RESERVOIR COMPONENTS FOR ILLUSTRATIONS 4.3LX/4.3LXH/262 MAG. EFI 7.4L/454/7.4LX EFI |
1 | discontinued |
| 26 | 657461 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) SCREW AND LOCKWASHER (.250-20 x .625) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) |
1 | |
| 27 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) WASHER (.281 x .734 x .063) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) |
1 | |
| 28 | 8267088 |
ГАЙКА (0.250-20) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) NUT (.250-20) (4.3LX/4.3LXH/262 MAG EFI 7.4L/454/7.4LX EFI) |
1 | |
| 29 | 860065A1 |
КОМПЛЕКТ КРОНШТЕЙНА Oil Bottle (SEE NOTE) (5.7L/5.7LX/350 MAGNUM) (CARB AND EFI) (3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502) BRACKET KIT Oil Bottle (SEE NOTE) (5.7L/5.7LX/350 MAGNUM) (CARB AND EFI) (3.0L/3.6L4.2L DIESEL/7.4L/7.4LX/454/502) |
1 | |
| 3 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
1 | |
| 30 | 808023T |
СКОБА Bracket STRAP Bracket |
1 | |
| 31 | 865175T |
КРОНШТЕЙН (4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION) BRACKET (4.3L/5.0L/5.7L/350 MAG/MX6.2L)(SEE COMPONENT ILLISTRATION) |
1 | |
| 32 | 828552 |
ВИНТ (0.375-16 x 0.500) SCREW (.375-16 x .500) |
1 | |
| 33 | 8267098 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
1 | |
| 34 | 865190 |
СОЕДИНИТЕЛЬ Гнездо Quick Connect CONNECTOR Female Quick Connect |
1 | superseded |
| 35 | 865191 |
ФИТИНГ Вилка Quick Connect FITTING Male Quick Connect |
1 | |
| 4 | 87843 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 5 | 861163 |
БЫСТРОРАЗЪЕМНОЕ СОЕДИНЕНИЕ (90 градусов) QUICK CONNECTOR (90 Degree) |
1 | |
| 6 | 415825 |
ЗАЖИМ Нейлон CLAMP Nylon |
4 | |
| 7 | 1940971 |
РУКАВ (Общая длина 54.00") (Cut to 9.5 Inches and 36 Inches) HOSE (54.00 Inches Bulk) (Cut to 9.5 Inches and 36 Inches) |
2 | superseded |
| 8 | 16739 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | superseded |
| 9 | 642351 |
J-ЗАЖИМ J CLIP |
1 | superseded |
