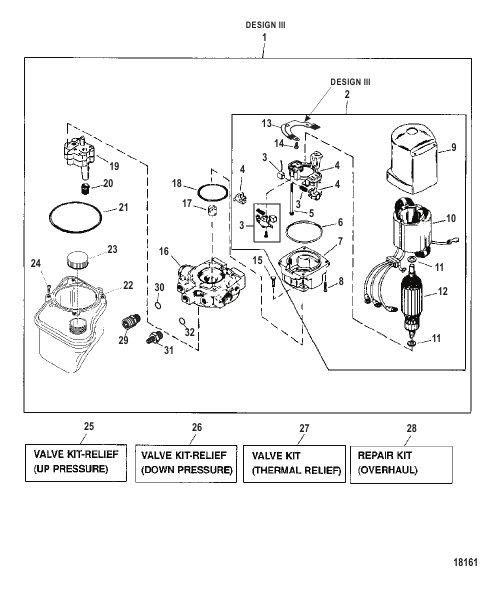

PUMP/MOTOR (Top Mount Reservoir) (Design III - 14336A31)
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14336A31 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ (Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) PUMP/MOTOR ASSEMBLY (Design III, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
1 | superseded |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Field And Frame Assembly NOT SOLD SEPARATE Field And Frame Assembly |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Washer, Thrust NOT SOLD SEPARATE Washer, Thrust |
2 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Armature NOT SOLD SEPARATE Armature |
1 | |
| 13 | 892608 |
БОРТ В СБОРЕ Цепь – фильтр радиопомех BOARD ASSEMBLY Circuit - Radio Frequency Interference Filter |
1 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw NOT SOLD SEPARATE Screw |
2 | |
| 15 | 823444 |
ВИНТ SCREW |
2 | |
| 16 | 808728T |
ПЕРЕХОДНИК В СБОРЕ ADAPTER ASSEMBLY |
1 | |
| 17 | 803852 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | |
| 18 | 89498 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Motor End O-RING Motor End |
1 | |
| 19 | 18529 |
НАСОС В СБОРЕ Includes Screws PUMP ASSEMBLY Includes Screws |
1 | |
| 2 | 891736T |
ДВИГАТЕЛЬ В СБОРЕ Complete (Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) MOTOR ASSEMBLY Complete (Design II, Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
1 | |
| 20 | 89496 |
ФИЛЬТР FILTER |
2 | |
| 21 | 17645 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reservoir End O-RING Reservoir End |
1 | |
| 22 | 883166A2 |
КОМПЛЕКТ РЕЗЕРВУАРА With Filters And O-Ring (Reference 20 And Reference 21) RESERVOIR KIT With Filters And O-Ring (Reference 20 And Reference 21) |
1 | |
| 23 | 861597 |
ПРОБКА Standard CAP Standard |
1 | discontinued |
| 23 | 865448A01 |
ПРОБКА Масляный резервуар Rough Water Application CAP Oil Reservoir Rough Water Application |
OPT | superseded |
| 24 | 883167 |
ВИНТ (№8-32) SCREW (#8-32) |
4 | |
| 25 | 812498A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Up Pressure VALVE KIT Relief Up Pressure |
1 | |
| 26 | 812499A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Down Pressure VALVE KIT Relief Down Pressure |
1 | |
| 27 | 95353A1 |
КОМПЛЕКТ КЛАПАНА Тепловая разгрузка Thermal VALVE KIT Thermal Relief Thermal |
1 | |
| 28 | 18545A1 |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | |
| 29 | 865413001 |
ФИТИНГ Нержавеющая сталь [0W100000] & Up FITTING Stainless Steel [0W100000] & Up |
1 | superseded |
| 3 | 891737 |
КОМПЛЕКТ ЩЕТКИ BRUSH KIT |
1 | |
| 30 | 891868 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0W100000] & Up O-RING [0W100000] & Up |
1 | |
| 31 | 865412001 |
ФИТИНГ Нержавеющая сталь [0W100000] & Up FITTING Stainless Steel [0W100000] & Up |
1 | |
| 32 | 891868 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [0W100000] & Up O-RING [0W100000] & Up |
1 | |
| 4 | 891738 |
ДЕРЖАТЕЛЬ В СБОРЕ Brushes HOLDER ASSEMBLY Brushes |
1 | |
| 5 | 891739 |
ВИНТ Brush Holder SCREW Brush Holder |
2 | discontinued |
| 6 | 891740 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО End Cap Assembly NOT SOLD SEPARATE End Cap Assembly |
1 | |
| 8 | 891741 |
ВИНТ SCREW |
4 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover Assembly, With Bearing NOT SOLD SEPARATE Cover Assembly, With Bearing |
1 |
