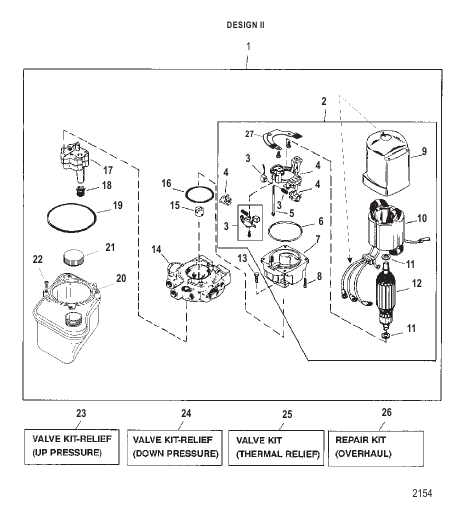

(PUMP/MOTOR (TOP MT RESERVOIR) (DESIGN II - 14336A25)
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14336A25 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) PUMP/MOTOR ASSEMBLY (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
1 | superseded |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО FIELD AND FRAME ASSEMBLY NOT SOLD SEPARATE FIELD AND FRAME ASSEMBLY |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО WASHER-Thrust NOT SOLD SEPARATE WASHER-Thrust |
2 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО ARMATURE NOT SOLD SEPARATE ARMATURE |
1 | |
| 13 | 823444 |
ВИНТ SCREW |
2 | |
| 14 | 808728T |
ПЕРЕХОДНИК В СБОРЕ ADAPTER ASSEMBLY |
1 | |
| 15 | 803852 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | |
| 16 | 89498 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Motor End O-RING Motor End |
1 | |
| 17 | 18529 |
НАСОС В СБОРЕ Includes Screws PUMP ASSEMBLY Includes Screws |
1 | |
| 18 | 89496 |
ФИЛЬТР FILTER |
2 | |
| 19 | 17645 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reservoir End O-RING Reservoir End |
1 | |
| 2 | 891736T |
ДВИГАТЕЛЬ В СБОРЕ Complete (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) MOTOR ASSEMBLY Complete (Design II - Etch Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line) |
1 | |
| 20 | 883166A2 |
КОМПЛЕКТ РЕЗЕРВУАРА (With Filters and O-Ring References 18 and 19) RESERVOIR KIT (With Filters and O-Ring References 18 and 19) |
1 | |
| 21 | 861597 |
ПРОБКА Oil Reservoir CAP Oil Reservoir |
1 | discontinued |
| 22 | 883167 |
ВИНТ (№8-32) SCREW (#8-32) |
4 | |
| 23 | 812498A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка UP Pressure VALVE KIT Relief UP Pressure |
1 | |
| 24 | 812499A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Down Pressure VALVE KIT Relief Down Pressure |
1 | |
| 25 | 95353A1 |
КОМПЛЕКТ КЛАПАНА Тепловая разгрузка Thermal VALVE KIT Thermal Relief Thermal |
1 | |
| 26 | 18545A1 |
РЕМОНТНЫЙ КОМПЛЕКТ REPAIR KIT |
1 | |
| 27 | 892608 |
БОРТ В СБОРЕ Цепь – фильтр радиопомех BOARD ASSEMBLY Circuit - Radio Frequency Interference Filter |
1 | |
| 3 | 891737 |
КОМПЛЕКТ ЩЕТКИ BRUSH KIT |
1 | |
| 4 | 891738 |
ДЕРЖАТЕЛЬ В СБОРЕ Brushes HOLDER ASSEMBLY Brushes |
1 | |
| 5 | 891739 |
ВИНТ Brush Holder SCREW Brush Holder |
2 | discontinued |
| 6 | 891740 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО END CAP ASSEMBLY NOT SOLD SEPARATE END CAP ASSEMBLY |
1 | |
| 8 | 891741 |
ВИНТ SCREW |
4 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО COVER ASSEMBLY - (With Bearing) NOT SOLD SEPARATE COVER ASSEMBLY - (With Bearing) |
1 |
