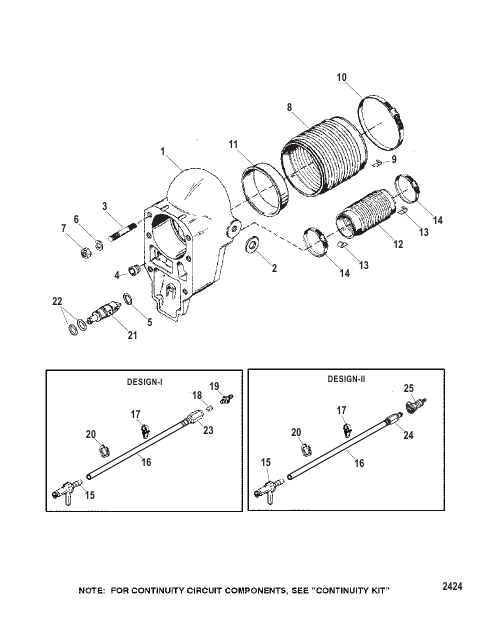

BELL HOUSING
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 41646A9 |
БЛОК КОЛОКОЛООБРАЗНОГО КОЖУХА BELL HOUSING ASSEMBLY |
1 | discontinued |
| 10 | 815504372 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 11 | 862209 |
РУКАВ SLEEVE |
1 | |
| 12 | 18654A1 |
СИЛЬФОНЫ В СБОРЕ BELLOWS ASSEMBLY |
AR | superseded |
| 12 | 78458A1 |
ТРУБА TUBE |
AR | |
| 13 | 86049 |
ЗАЖИМ Заземление CLIP Grounding |
2 | superseded |
| 14 | 815504348 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 15 | 815303 |
АДАПТЕР ADAPTER |
1 | superseded |
| 16 | 5495025 |
ТРУБОПРОВОД (Общая длина 25.00 фт.) Speedo (DESIGN-I) TUBING (25.00 Feet Bulk) Speedo (DESIGN-I) |
1 | discontinued |
| 17 | 12994 |
ЗАЖИМ CLIP |
1 | |
| 18 | 878089 |
ПРОБКА Труба (0.0625-27) (DESIGN-I) PLUG Pipe (.0625-27) (DESIGN-I) |
1 | |
| 19 | 814382 |
СОЕДИНИТЕЛЬ (DESIGN-I) CONNECTOR (DESIGN-I) |
1 | |
| 2 | 806241 |
ШАЙБА WASHER |
2 | superseded |
| 20 | 818557 |
ЗАЖИМ CLAMP |
2 | |
| 21 | 18920A1 |
КЛАПАН В СБОРЕ (Use With Oil Reservoir) VALVE ASSEMBLY (Use With Oil Reservoir) |
1 | |
| 22 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) (Use With Oil Reservoir) O-RING (.364. x .070) (Use With Oil Reservoir) |
2 | |
| 23 | 865261 |
ФИТИНГ Speedo Tube (DESIGN I)(Magnum Transom) [0M815500] & Below FITTING Speedo Tube (DESIGN I)(Magnum Transom) [0M815500] & Below |
1 | |
| 23 | 865261 |
ФИТИНГ Speedo Tube (DESIGN I)(Smart Craft Transom) [0M05156] & Below FITTING Speedo Tube (DESIGN I)(Smart Craft Transom) [0M05156] & Below |
1 | |
| 24 | 865391 |
ФИТИНГИ В СБОРЕ Спидометр Male Quick Connect (DESIGN-II)(Magnum Transom) [0M815501] & Up FITTING ASSEMBLY Speedometer Male Quick Connect (DESIGN-II)(Magnum Transom) [0M815501] & Up |
1 | |
| 24 | 865391 |
ФИТИНГИ В СБОРЕ Спидометр Male Quick Connect (DESIGN II)(Smart Craft Transom) [0M805157] & Up FITTING ASSEMBLY Speedometer Male Quick Connect (DESIGN II)(Smart Craft Transom) [0M805157] & Up |
1 | |
| 25 | 865417 |
ФИТИНГ Female Quick Connect (DESIGN-II)(Magnum Transom) [0M815501] & Up FITTING Female Quick Connect (DESIGN-II)(Magnum Transom) [0M815501] & Up |
1 | |
| 25 | 865417 |
ФИТИНГ Female Quick Connect (DESIGN II)(Smart Craft Transom) [0M805157] & Up FITTING Female Quick Connect (DESIGN II)(Smart Craft Transom) [0M805157] & Up |
1 | |
| 3 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) STUD (.437-14/.437-20 x 2.812) |
6 | |
| 4 | 41674 |
ВСТАВКА INSERT |
1 | superseded |
| 5 | 62705 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 6 | 35935 |
ШАЙБА (0.435 x 0.875 x 0.105), нержавеющая сталь WASHER (.435 x .875 x .105) Stainless Steel |
6 | superseded |
| 7 | 859116 |
ГАЙКА (0.437-20) NUT (.437-20) |
6 | |
| 8 | 86840A3 |
СИЛЬФОНЫ В СБОРЕ BELLOWS ASSEMBLY |
1 | superseded |
| 9 | 86049 |
ЗАЖИМ Заземление CLIP Grounding |
1 | superseded |
