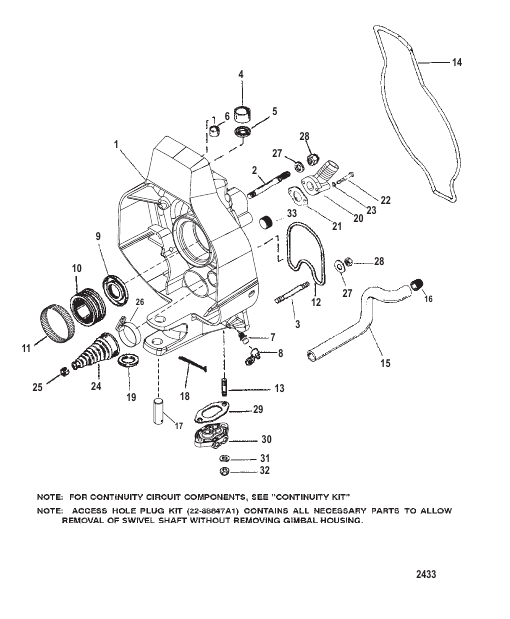

GIMBAL HOUSING
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88847A1 |
Комплект пробки Смотровое отверстие (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) PLUG KIT Access Hole (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) |
1 | |
| 1 | 43881A17 |
КОРПУС КАРДАНА В СБОРЕ GIMBAL HOUSING ASSEMBLY |
1 | superseded |
| 10 | 862540A3 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | superseded |
| 11 | 61075 |
КОЛЬЦО ДОПУСКА TOLERANCE RING |
1 | discontinued |
| 12 | 41802 |
УПЛОТНЕНИЕ Резина SEAL Rubber |
1 | |
| 13 | 56766 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.380) STUD (.250-20/.250-28 x 1.380) |
2 | |
| 14 | 43713 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 43437 |
РУКАВ HOSE |
1 | discontinued |
| 16 | 41674 |
ВСТАВКА INSERT |
1 | superseded |
| 17 | 99353 |
ШАРНИРНЫЙ ПАЛЕЦ Нижняя часть (LOWER) SWIVEL PIN Lower (LOWER) |
1 | superseded |
| 18 | 54929 |
ШПЛИНТ COTTER PIN |
1 | |
| 19 | 32518 |
ШАЙБА WASHER |
1 | |
| 2 | 56296 |
ШПИЛЬКА (0.437-20 x 4.750) STUD (.437-20 x 4.750) |
4 | discontinued |
| 20 | 43828 |
СОЕДИНИТЕЛЬ [0W099999] & Below CONNECTOR [0W099999] & Below |
1 | superseded |
| 20 | 865470 |
КОРПУС Впуск Male Quick Connect [0W100000] & Up HOUSING Inlet Male Quick Connect [0W100000] & Up |
1 | |
| 21 | 441081 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 22 | 78038 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 23 | 21272 |
СТОПОРНАЯ ШАЙБА (0.250) LOCKWASHER (.250) |
2 | |
| 24 | 74639A2 |
СИЛЬФОНЫ В СБОРЕ BELLOWS ASSEMBLY |
1 | |
| 25 | 38863 |
ЗАЖИМ CLAMP |
1 | superseded |
| 26 | 815504320 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 27 | 34567 |
ШАЙБА WASHER |
8 | |
| 28 | 82671015 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
8 | superseded |
| 29 | 988231 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 818834 |
ШПИЛЬКА (0.437-20 x 4.250) STUD (.437-20 x 4.250) |
4 | discontinued |
| 30 | 98825A4 |
ВПУСКНОЙ КОЛЛЕКТОР MANIFOLD ASSEMBLY |
1 | superseded |
| 31 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
2 | |
| 32 | 8267119 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | |
| 33 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
1 | superseded |
| 4 | 983571 |
ВТУЛКА BUSHING |
1 | |
| 5 | 416071 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 6 | 98356 |
ВТУЛКА BUSHING |
1 | |
| 7 | 74036 |
ФИТИНГ Смазка (With greased fitting) FITTING Grease (With greased fitting) |
1 | superseded |
| 7 | 8M2015913 |
ПРОБКА (0.250-28 x 0.320) (With non-greased fitting) PLUG (.250-28 x .320) (With non-greased fitting) |
1 | superseded |
| 8 | 77633Q |
КРЫШКА МАСЛЕНКИ LUBRICAP |
1 | |
| 9 | 88416 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
