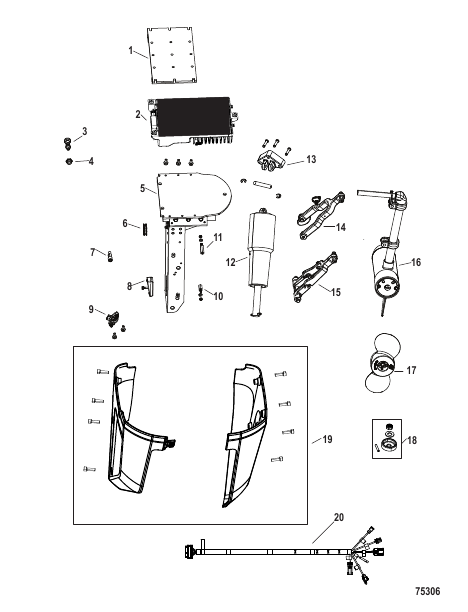

Stern Thruster
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M4509077 |
STERN THRUSTER STERN THRUSTER |
1 | |
| 1 | 8M0182277 |
BRACKET Top Mount Plate BRACKET Top Mount Plate |
1 | |
| 10 | 8M0182291 |
COWL STUD ASSY Short COWL STUD ASSY Short |
1 | |
| 11 | 8M0182290 |
COWL STUD ASSY Long COWL STUD ASSY Long |
1 | |
| 12 | 8M0182282 |
ACTUATOR Stern ACTUATOR Stern |
1 | |
| 13 | 8M0182281 |
MOUNT Actuator Assy MOUNT Actuator Assy |
1 | |
| 14 | 8M0182293 |
FORK ASSY Upper FORK ASSY Upper |
1 | |
| 15 | 8M0182294 |
FORK ASSY Lower FORK ASSY Lower |
1 | |
| 16 | 8M0182280 |
MOTOR ASSY Stern MOTOR ASSY Stern |
1 | |
| 17 | 8M0180533 |
PROPELLER PROPELLER |
1 | |
| 18 | 8M0192279 |
PROP NUT KIT PROP NUT KIT |
1 | |
| 19 | 8M0180132 |
COVER KIT Stern COVER KIT Stern |
1 | |
| 2 | 8M0176991 |
THRUSTER MODULE THRUSTER MODULE |
1 | |
| 20 | 8M0173982 |
HARNESS Stern Thruster HARNESS Stern Thruster |
1 | |
| 3 | 8M0182283 |
LOCK ASSY LOCK ASSY |
1 | |
| 4 | 8M0182284 |
NUT Latch NUT Latch |
1 | |
| 5 | 8M0182278 |
BRACKET ASSY Chassis BRACKET ASSY Chassis |
1 | |
| 6 | 8M0182279 |
GROMMET Housing GROMMET Housing |
1 | |
| 7 | 8M0182296 |
SHAFT/MAGNET ASSY SHAFT/MAGNET ASSY |
1 | |
| 8 | 8M0182285 |
ANODE ASSY ANODE ASSY |
1 | |
| 9 | 8M0182295 |
SENSOR ASSY Position SENSOR ASSY Position |
1 |
