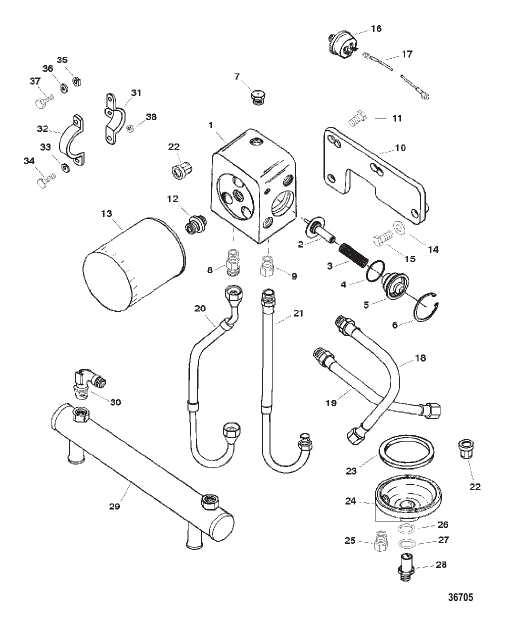

Oil Cooler Oil Filter and Adapter
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 818572A98 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 848555T |
ПЕРЕХОДНИК Oil Filter ADAPTER Oil Filter |
1 | |
| 10 | 8485562 |
КРОНШТЕЙН Oil Adapter BRACKET Oil Adapter |
1 | |
| 11 | 99204 |
ВИНТ (0.437-14 x 1.00), нержавеющая сталь SCREW (.437-14 x 1.00) Stainless Steel |
2 | |
| 12 | 805632 |
СОЕДИНИТЕЛЬ Oil Filter CONNECTOR Oil Filter |
1 | |
| 13 | 16595Q |
ФИЛЬТР Масло FILTER Oil |
1 | |
| 14 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
2 | |
| 15 | 825427 |
ВИНТ (0.437-14 x 1.250), нержавеющая сталь SCREW (.437-14 x 1.250) Stainless Steel |
2 | |
| 16 | 864252A01 |
ПЕРЕКЛЮЧАТЕЛЬ Давление масла (Choke) SWITCH Oil Pressure (Choke) |
1 | superseded |
| 17 | 8M0106495 |
ЖГУТ ПРОВОДОВ В СБОРЕ Sender to Choke HARNESS ASSEMBLY Sender to Choke |
1 | |
| 18 | 8485742 |
ШЛАНГ В СБОРЕ (14.500 Inches) HOSE ASSEMBLY (14.500 Inches) |
1 | |
| 19 | 8485741 |
ШЛАНГ В СБОРЕ (13.380 Inches) HOSE ASSEMBLY (13.380 Inches) |
1 | |
| 19 | 9235738 |
РУКАВ (18.5") HOSE (18.5 Inches) |
1 | discontinued |
| 2 | 816163 |
ТЕРМОСТАТ THERMOSTAT |
1 | discontinued |
| 20 | 848573 |
ШЛАНГ В СБОРЕ Remote Oil To Adapter HOSE ASSEMBLY Remote Oil To Adapter |
1 | |
| 21 | 848572 |
ШЛАНГ В СБОРЕ Remote Oil To Adapter HOSE ASSEMBLY Remote Oil To Adapter |
1 | |
| 22 | 99889 |
КЛАПАН By Pass VALVE By Pass |
2 | |
| 23 | 91892 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 24 | 818400A1 |
АДАПТЕР ADAPTER |
1 | |
| 25 | 805563 |
СОЕДИНИТЕЛЬ (NPTF 0.500" к инвертированной свече зажигания 0.500") CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 | |
| 26 | 90196 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.921 x 0.139) O-RING (.921 x .139) |
1 | superseded |
| 27 | 55822 |
ШАЙБА WASHER |
1 | |
| 28 | 806121 |
ФИТИНГ FITTING |
1 | |
| 29 | 848192 |
ОХЛАДИТЕЛЬ Oil COOLER Oil |
1 | superseded |
| 3 | 816162 |
ПРУЖИНА SPRING |
1 | |
| 30 | 706811 |
КОЛЕНЧАТЫЙ 90 градусов ELBOW 90 Degree |
2 | superseded |
| 30 | 63825 |
КОЛЕНЧАТЫЙ ELBOW |
1 | |
| 31 | 8161951 |
КРОНШТЕЙН Oil Cooler BRACKET Oil Cooler |
2 | discontinued |
| 32 | 56328A1 |
КРОНШТЕЙН Oil Cooler BRACKET Oil Cooler |
2 | |
| 33 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
4 | |
| 34 | 49668 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
4 | |
| 35 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
2 | |
| 36 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 37 | 34353 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
2 | |
| 38 | 30506 |
ГАЙКА (0.250-28) (DRIVELINE MODELS) NUT (.250-28) (DRIVELINE MODELS) |
AR | |
| 4 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) O-RING (1.112 x .103) |
1 | |
| 5 | 8M0096522 |
КРЫШКА Термостат масла COVER Oil Thermostat |
1 | |
| 6 | 848571 |
КОЛЬЦО Стопор Snap RING Retaining Snap |
1 | |
| 7 | 32804 |
ПРОБКА (0.500-14) PLUG (.500-14) |
1 | |
| 8 | 806186 |
ФИТИНГ FITTING |
1 | |
| 9 | 805563 |
СОЕДИНИТЕЛЬ (NPTF 0.500" к инвертированной свече зажигания 0.500") CONNECTOR (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 |
