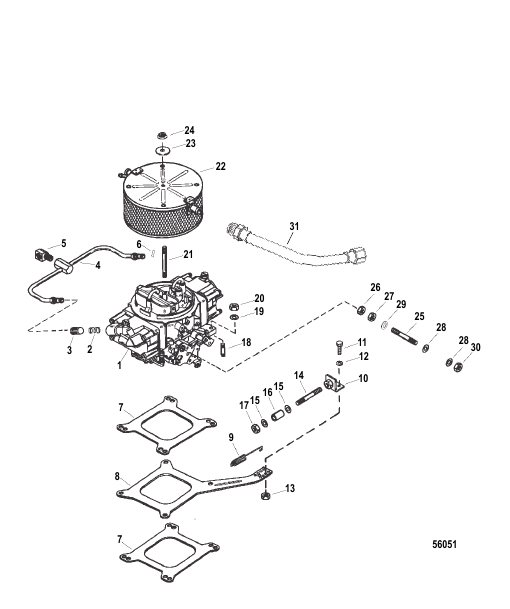

Carburetor and Linkage
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 818572A98 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | discontinued |
| 1 | 8M0094191 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | |
| 10 | 15017 |
КРОНШТЕЙН Throttle BRACKET Throttle |
1 | |
| 11 | 78291 |
ВИНТ (0.190-24 x 0.500) Throttle Bracket SCREW (.190-24 x .500) Throttle Bracket |
2 | |
| 12 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь Throttle Bracket Screw LOCKWASHER (#10) Stainless Steel Throttle Bracket Screw |
2 | |
| 13 | 79989 |
ГАЙКА (№10-24), нержавеющая сталь Throttle Bracket Screw NUT (#10-24) Stainless Steel Throttle Bracket Screw |
2 | |
| 14 | 728091 |
ШПИЛЬКА (0.250 x 1.620) Cable STUD (.250 x 1.620) Cable |
1 | |
| 15 | 69056 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь Cable Stud WASHER (.255 x .620 x .030) Stainless Steel Cable Stud |
2 | |
| 16 | 31866 |
ПРОСТАВКА (0.256 x 0.313 x 0.625) Cable Stud SPACER (.256 x .313 x .625) Cable Stud |
1 | |
| 17 | 826709109 |
ГАЙКА (0.250-28), нержавеющая сталь Cable Stud NUT (.250-28) Stainless Steel Cable Stud |
1 | |
| 18 | 8M0113177 |
ШПИЛЬКА (0.312 x 1.500) STUD (.312 x 1.500) |
4 | |
| 19 | 848136 |
ШАЙБА (0.328 x 0.680 x 0.190) Carburetor Stud WASHER (.328 x .680 x .190) Carburetor Stud |
4 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Filter Spring NOT SOLD SEPARATE Filter Spring |
2 | |
| 20 | 29250 |
ГАЙКА (0.312-24) Carburetor Stud NUT (.312-24) Carburetor Stud |
4 | |
| 21 | 848176 |
ШПИЛЬКА (0.250-20 x 4.310) Flame Arrestor STUD (.250-20 x 4.310) Flame Arrestor |
1 | |
| 22 | 8M0119614 |
ПЛАМЕГАСИТЕЛЬ 3" FLAME ARRESTOR 3 Inch |
1 | |
| 23 | 86400 |
ШАЙБА Flame Arrestor Stud WASHER Flame Arrestor Stud |
1 | |
| 24 | 35888 |
ГАЙКА (0.250-28), нержавеющая сталь Flame Arrestor Stud NUT (.250-28) Stainless Steel Flame Arrestor Stud |
1 | |
| 25 | 8M0113178 |
ШПИЛЬКА (0.250-28 x 2.00) Throttle Cable to Carburetor STUD (.250-28 x 2.00) Throttle Cable to Carburetor |
1 | |
| 26 | 8267089 |
ГАЙКА (0.250-28) Throttle Cable Stud NUT (.250-28) Throttle Cable Stud |
1 | |
| 27 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) (.250-28)-Throttle Cable Stud WASHER (.281 x .734 x .063) (.250-28)-Throttle Cable Stud |
1 | |
| 28 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 29 | 818894 |
ВТУЛКА Throttle Cable Stud BUSHING Throttle Cable Stud |
1 | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Filter NOT SOLD SEPARATE Filter |
2 | |
| 30 | 8267089 |
ГАЙКА (0.250-28) Throttle Cable Stud NUT (.250-28) Throttle Cable Stud |
1 | |
| 31 | 8485741 |
ШЛАНГ В СБОРЕ HOSE ASSEMBLY |
1 | |
| 4 | 848591 |
ТРУБОПРОВОД Fuel Inlet LINE Fuel Inlet |
1 | |
| 5 | 93385 |
ФИТИНГ (90 градусов) Fuel Inlet Tube FITTING (90 Degree) Fuel Inlet Tube |
1 | |
| 6 | 848438 |
ПРОКЛАДКА Flair (Copper) GASKET Flair (Copper) |
2 | |
| 7 | 41610 |
ПРОКЛАДКА Spacer GASKET Spacer |
2 | |
| 8 | 940701 |
КРОНШТЕЙН Throttle BRACKET Throttle |
1 | |
| 9 | 897454 |
ПРУЖИНА ВОЗВРАТ ДРОССЕЛЬНОЙ ЗАСЛОНКИ SPRING THROTTLE RETURN |
1 | |
| NS | 8M0086264 |
НАКЛЕЙКА Flame Arrestor DECAL Flame Arrestor |
1 |
