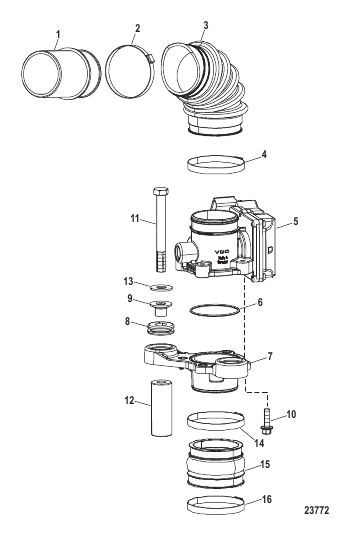

Intake Components (Boost Valve)
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 843073A05 |
КОМПЛЕКТ ПРОКЛАДОК/УПЛОТНИТЕЛЕЙ Капитальный ремонт двигателя - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing GASKET/SEAL SET Engine Overhaul - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
1 | |
| 1 | 843101 |
ВОЗДУХОВОД Перепуск наддува – синий Included With Throttle Body Assembly 843085A07 - Design I DUCT Boost By Pass - Blue Included With Throttle Body Assembly 843085A07 - Design I |
1 | superseded |
| 1 | 8M0034862 |
ВОЗДУХОВОД Перепуск наддува – черный Included With Throttle Body Assembly 843085A07 - Design II DUCT Boost By Pass - Black Included With Throttle Body Assembly 843085A07 - Design II |
1 | |
| 10 | 88552520 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
4 | superseded |
| 11 | 814945 |
ВИНТ (0.312-18 x 3.500), нержавеющая сталь SCREW (.312-18 x 3.500) Stainless Steel |
2 | |
| 12 | 842479 |
ПРОСТАВКА SPACER |
2 | |
| 13 | 817274 |
ШАЙБА (0.344 x 1.00 x 0.063), нержавеющая сталь WASHER (.344 x 1.00 x .063) Stainless Steel |
2 | |
| 14 | 888988006 |
ЗАЖИМ (59.0 мм) CLAMP (59.0 mm) |
1 | |
| 15 | 887938 |
ТРУБА TUBE |
1 | |
| 16 | 888988025 |
ЗАЖИМ (63.5 мм) CLAMP (63.5 mm) |
1 | |
| 2 | 888988006 |
ЗАЖИМ (59.0 мм) CLAMP (59.0 mm) |
1 | |
| 3 | 887937005 |
РУКАВ [0M952908] THRU [0M955080] HOSE [0M952908] THRU [0M955080] |
1 | |
| 3 | 892947 |
РУКАВ [0M955081] & Up HOSE [0M955081] & Up |
1 | superseded |
| 4 | 888988006 |
ЗАЖИМ (59.0 мм) CLAMP (59.0 mm) |
1 | |
| 5 | 884408T05 |
КЛАПАН НАДДУВА В СБОРЕ BOOST VALVE ASSEMBLY |
1 | superseded |
| 6 | 892079 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 887939006 |
КРОНШТЕЙН Крепление нагнетательного клапана BRACKET Boost Valve Mounting |
1 | superseded |
| 8 | 833155 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | |
| 9 | 8502341 |
ВТУЛКА BUSHING |
2 |
