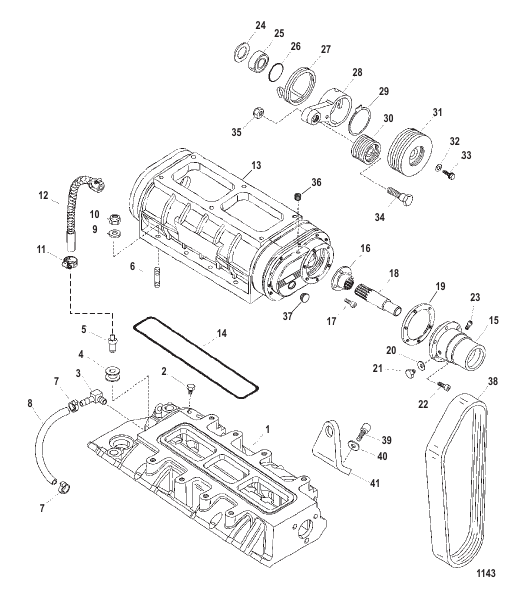

Intake Manifold And Supercharger
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 842182A1 |
КОМПЛЕКТ ПРОКЛАДОК/УПЛОТНИТЕЛЕЙ Капитальный ремонт двигателя - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing GASKET/SEAL SET Engine Overhaul - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
1 | discontinued |
| 1 | 849901A1 |
ВПУСКНОЙ КОЛЛЕКТОР Впуск MANIFOLD ASSEMBLY Intake |
1 | discontinued |
| 10 | 82670911 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
8 | |
| 11 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) CLAMP Worm Gear (11-18 mm) |
1 | superseded |
| 12 | 823229A3 |
ШЛАНГ В СБОРЕ PCV (13.50 Inches) HOSE ASSEMBLY PCV (13.50 Inches) |
1 | discontinued |
| 13 | 849893A22 |
НАГНЕТАТЕЛЬ В СБОРЕ Синий SUPERCHARGER ASSEMBLY Blue |
1 | discontinued |
| 14 | 844473 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (10.975 x 0.210) O-RING (10.975 x .210) |
1 | discontinued |
| 15 | 841272A1 |
НОС В СБОРЕ NOSE ASSEMBLY |
1 | discontinued |
| 16 | 841278 |
МУФТА COUPLER |
1 | discontinued |
| 17 | 92702 |
ВИНТ (0.250-28 x 0.875) SCREW (.250-28 x .875) |
4 | |
| 18 | 841273 |
ВАЛ SHAFT |
1 | discontinued |
| 19 | 844134 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 2 | 328022 |
ПРОБКА Труба (0.125-27), латунь PLUG Pipe (.125-27) Brass |
1 | |
| 20 | 68300 |
ШАЙБА (0.88 x 0.39 x 0.06) WASHER (..88 x .39 x .06) |
1 | discontinued |
| 21 | 841265 |
ВИНТ (0.250-28 x 0.875) SCREW (.250-28 x .875) |
1 | discontinued |
| 22 | 823138 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
6 | |
| 23 | 841446 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
1 | discontinued |
| 24 | 841266 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 25 | 841269 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 26 | 841275 |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 27 | 841270 |
ПРУЖИНА SPRING |
1 | discontinued |
| 28 | 841271 |
МАЯТНИКОВЫЙ РЫЧАГ IDLER ARM |
1 | |
| 29 | 841268 |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 3 | 196881 |
ФИТИНГ (90 градусов) FITTING (90 Degree) |
1 | |
| 30 | 848091T |
ШКИВ Idler - With Bearing PULLEY Idler - With Bearing |
1 | discontinued |
| 31 | 845311 |
ШКИВ Snout PULLEY Snout |
1 | discontinued |
| 32 | 841277 |
ШАЙБА WASHER |
1 | discontinued |
| 33 | 841276 |
ВИНТ (0.375-24 x 750) SCREW (.375-24 x .750) |
1 | discontinued |
| 34 | 841267 |
ВИНТ (0.500-13 x 2.500) SCREW (.500-13 x 2.500) |
1 | discontinued |
| 35 | 844766 |
ГАЙКА (0.500-13) NUT (.500-13) |
1 | |
| 36 | 32561 |
ПРОБКА Труба – головка с внутренним шестигранником (0.250-18) PLUG Pipe - Allen Head (.250-18) |
1 | superseded |
| 37 | 843113 |
ЗАГЛУШКА СМОТРОВОГО ОТВЕРСТИЯ SIGHT PLUG |
1 | discontinued |
| 38 | 817113 |
РЕМЕНЬ Поликлиновый BELT Serpentine |
1 | |
| 39 | 822168 |
ВИНТ (0.375-16 x 1.750), нержавеющая сталь SCREW (.375-16 x 1.750) Stainless Steel |
2 | |
| 39 | 817124 |
ВИНТ (0.375-16 x 1.500) SCREW (.375-16 x 1.500) |
10 | |
| 39 | 843751 |
ВИНТ (0.375-16 x 1.500) с отверстиями SCREW (.375-16 x 1.500) With Holes |
2 | discontinued |
| 39 | 842787 |
ВИНТ (0.375-16 x 2.00), нержавеющая сталь SCREW (.375-16 x 2.00) Stainless Steel |
2 | |
| 4 | 811553 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 40 | 856774 |
ШАЙБА (0.406 x 0.750 x 0.105), нержавеющая сталь WASHER (.406 x .750 x .105) Stainless Steel |
16 | superseded |
| 41 | 8499981 |
ПОДЪЕМНАЯ СКОБА Черный LIFTING EYE Black |
2 | |
| 5 | 848578 |
КЛАПАН В СБОРЕ Сапун картера VALVE ASSEMBLY Crankcase Vent |
1 | superseded |
| 6 | 849928 |
ШПИЛЬКА (0.312-18/0.312-24 x 2.00) STUD (.312-18/.312-24 x 2.00) |
8 | |
| 7 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
2 | |
| 8 | 1940971 |
РУКАВ (Общая длина 54.00") Cut 10.50 Inches - MAP Sensor HOSE (54.00 Inches Bulk) Cut 10.50 Inches - MAP Sensor |
1 | superseded |
| 9 | 70132 |
ШАЙБА (0.323 x 0.563 x 0.063), нержавеющая сталь WASHER (.323 x .563 x .063) Stainless Steel |
8 | superseded |
