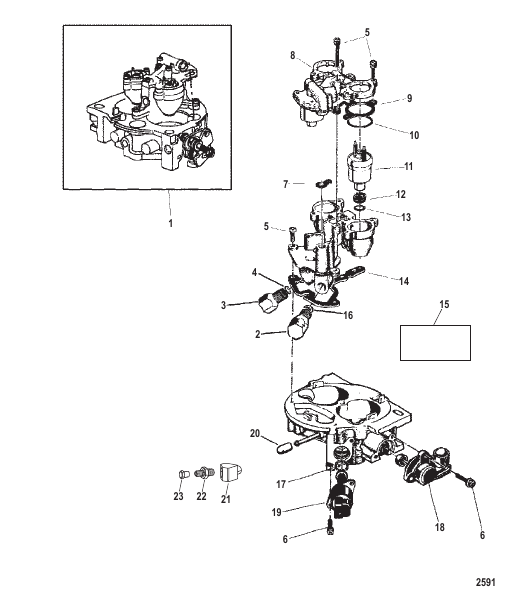

Intake Throttle Body Components
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 807941T13 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Передний – синий THROTTLE BODY ASSEMBLY Front - Blue |
1 | discontinued |
| 1 | 807941T11 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Задний – синий THROTTLE BODY ASSEMBLY Rear - Blue |
1 | discontinued |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal - NOTE: Included In Kits 853998A1 And 27-852957 NOT SOLD SEPARATE Seal - NOTE: Included In Kits 853998A1 And 27-852957 |
1 | |
| 11 | 853998A1 |
КОМПЛЕКТ ИНЖЕКТОРА Топливо (по 2 на комплект) INJECTOR KIT Fuel (2 Per Kit) |
1 | discontinued |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket - NOTE: Included In Kit 27-852957 NOT SOLD SEPARATE Gasket - NOTE: Included In Kit 27-852957 |
1 | |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal - NOTE: Included In Kits 853998A1 And 27-852957 NOT SOLD SEPARATE Seal - NOTE: Included In Kits 853998A1 And 27-852957 |
1 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket - NOTE: Included In Kit 27-852957 NOT SOLD SEPARATE Gasket - NOTE: Included In Kit 27-852957 |
1 | |
| 15 | 852957 |
КОМПЛЕКТ ПРОКЛАДОК Капитальный ремонт GASKET KIT Overhaul |
1 | discontinued |
| 16 | 806706 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 17 | 808547 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 18 | 805226A1 |
ДАТЧИК В СБОРЕ TPS Throttle Postion SENSOR ASSEMBLY TPS Throttle Postion |
1 | |
| 19 | 805224A03 |
КОМПЛЕКТ ДВИГАТЕЛЯ Управление холостым ходом с помощью пневматического привода With Two Screws MOTOR KIT (IAC) With Two Screws |
2 | |
| 2 | 843204 |
ФИТИНГ FITTING |
1 | discontinued |
| 20 | 806899 |
ПРОБКА - NOTE: Qty 2 - Front / Qty 1 - Rear PLUG - NOTE: Qty 2 - Front / Qty 1 - Rear |
3 | superseded |
| 21 | 29085 |
ФИТИНГ Колено (45 градусов) Front Only FITTING Elbow (45 Degree) Front Only |
1 | superseded |
| 22 | 840971A1 |
КЛАПАН В СБОРЕ Вентиль давления топлива Front Only VALVE ASSEMBLY Shrader Front Only |
1 | |
| 23 | 805515 |
ПРОБКА Вентиль давления топлива – латунь CAP Shrader Valve - Brass |
1 | discontinued |
| 3 | 806653A1 |
ФИТИНГИ В СБОРЕ Inlet FITTING ASSEMBLY Inlet |
1 | discontinued |
| 4 | 806655 |
УПЛОТНЕНИЕ - NOTE: Also Included In Gasket Kit 27-852957 SEAL - NOTE: Also Included In Gasket Kit 27-852957 |
1 | |
| 5 | 852958 |
КОМПЛЕКТ ВИНТОВ SCREW KIT |
1 | discontinued |
| 6 | 805400 |
ВИНТ (№8-32 x 0.500), нержавеющая сталь SCREW (#8-32 x .500) Stainless Steel |
6 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 NOT SOLD SEPARATE Gasket - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 |
1 | |
| 8 | 852955 |
КОМПЛЕКТ РЕГУЛЯТОРА Давление топлива REGULATOR KIT Fuel Pressure |
1 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 NOT SOLD SEPARATE Gasket - NOTE: Included In Kits 852955 And 853998A1 And 27-852957 |
1 |
