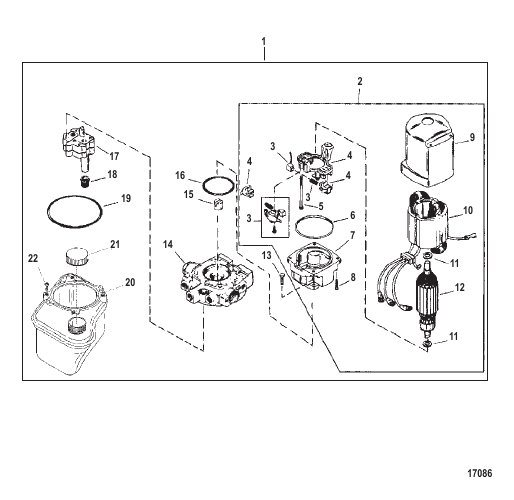

Pump/Motor Assembly (Design II - 14336A25)
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 812498A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Up Pressure VALVE KIT Relief Up Pressure |
1 | |
| - | 812499A1 |
КОМПЛЕКТ КЛАПАНА Разгрузка Up Pressure VALVE KIT Relief Up Pressure |
1 | |
| - | 95353A1 |
КОМПЛЕКТ КЛАПАНА Тепловая разгрузка Thermal VALVE KIT Thermal Relief Thermal |
1 | |
| - | 18545A1 |
РЕМОНТНЫЙ КОМПЛЕКТ Overhaul REPAIR KIT Overhaul |
1 | |
| 1 | 14336A25 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line PUMP/MOTOR ASSEMBLY - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line |
1 | superseded |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Field And Frame Assembly NOT SOLD SEPARATE Field And Frame Assembly |
1 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Thrust Washer NOT SOLD SEPARATE Thrust Washer |
2 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Armature NOT SOLD SEPARATE Armature |
1 | |
| 13 | 823444 |
ВИНТ SCREW |
2 | |
| 14 | 808728T |
ПЕРЕХОДНИК В СБОРЕ ADAPTER ASSEMBLY |
1 | |
| 15 | 803852 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | |
| 16 | 89498 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Motor End O-RING Motor End |
1 | |
| 17 | 18529 |
НАСОС В СБОРЕ Includes Screws PUMP ASSEMBLY Includes Screws |
1 | |
| 18 | 89496 |
ФИЛЬТР FILTER |
2 | |
| 19 | 17645 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Reservoir End O-RING Reservoir End |
1 | |
| 2 | 891736T |
ДВИГАТЕЛЬ В СБОРЕ - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line MOTOR ASSEMBLY - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line |
1 | |
| 20 | 883166A2 |
КОМПЛЕКТ РЕЗЕРВУАРА With Filters - Ref 18 And O-Ring - Ref 19 RESERVOIR KIT With Filters - Ref 18 And O-Ring - Ref 19 |
1 | |
| 21 | 861597 |
ПРОБКА CAP |
1 | discontinued |
| 22 | 883167 |
ВИНТ (№8-32) SCREW (#8-32) |
4 | |
| 3 | 891737 |
КОМПЛЕКТ ЩЕТКИ BRUSH KIT |
1 | |
| 4 | 891738 |
ДЕРЖАТЕЛЬ В СБОРЕ Brushes HOLDER ASSEMBLY Brushes |
1 | |
| 5 | 891739 |
ВИНТ Brush Holder SCREW Brush Holder |
2 | discontinued |
| 6 | 891740 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО End Cap Assembly - With Bearing NOT SOLD SEPARATE End Cap Assembly - With Bearing |
1 | |
| 8 | 891741 |
ВИНТ SCREW |
4 | discontinued |
| 9 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cover Assembly - With Bearing NOT SOLD SEPARATE Cover Assembly - With Bearing |
1 |
