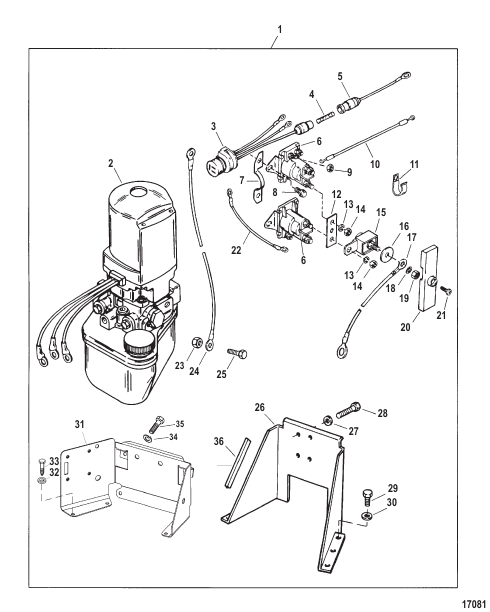

Trim Pump Assembly (14336 Series)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14336A17 |
НАСОС В СБОРЕ Дифферент - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line PUMP ASSEMBLY Trim - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line |
1 | superseded |
| 1 | 14336A22 |
НАСОС В СБОРЕ Дифферент - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line PUMP ASSEMBLY Trim - Design II - Etched Manufacturing Numbers On Top Of Motor Cover And Wires Will Have White Straight Line |
1 | superseded |
| 1 | 14336A28 |
НАСОС В СБОРЕ Дифферент - Design III - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Lines And RFI Filter Circuit Board PUMP ASSEMBLY Trim - Design III - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Lines And RFI Filter Circuit Board |
1 | superseded |
| 10 | 86322A24 |
КАБЕЛЬ В СБОРЕ (4.00") Black CABLE ASSEMBLY (4.00 Inches) Black |
1 | |
| 11 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 12 | 94275 |
СОЕДИНИТЕЛЬ Connector LINK Connector |
1 | |
| 13 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
4 | |
| 14 | 94330 |
ГАЙКА (0.250-20), латунь NUT (.250-20) Brass |
4 | |
| 15 | 79023A10 |
ПРЕДОХРАНИТЕЛЬ В СБОРЕ 110 ампер FUSE ASSEMBLY 110 Ampere |
1 | superseded |
| 16 | 25908 |
ШАЙБА (0.265 x 0.812 x 0.0625) WASHER (.265 x .812 x .0625) |
1 | |
| 17 | 79139A12 |
КАБЕЛЬ В СБОРЕ Красный – положительный Positive CABLE ASSEMBLY Red-Positive Positive |
1 | |
| 18 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
1 | |
| 19 | 21825 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 2 | 14336A20 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ - NOTE: See Pump/Motor Assembly Design I Section For Parts Breakdown PUMP/MOTOR ASSEMBLY - NOTE: See Pump/Motor Assembly Design I Section For Parts Breakdown |
1 | superseded |
| 2 | 14336A25 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ - NOTE: See Pump/Motor Assembly Design II Section For Parts Breakdown PUMP/MOTOR ASSEMBLY - NOTE: See Pump/Motor Assembly Design II Section For Parts Breakdown |
1 | superseded |
| 2 | 14336A31 |
УЗЕЛ НАСОСОВ И ДВИГАТЕЛЕЙ - NOTE: See Pump/Motor Assembly Design III Section For Parts Breakdown PUMP/MOTOR ASSEMBLY - NOTE: See Pump/Motor Assembly Design III Section For Parts Breakdown |
1 | superseded |
| 20 | 861680 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | |
| 21 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
1 | |
| 22 | 86322A15 |
КАБЕЛЬ В СБОРЕ (5.50"), черный Black CABLE ASSEMBLY (5.50 Inches) Black Black |
1 | |
| 23 | 68292 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 24 | 79138A9 |
КАБЕЛЬ В СБОРЕ (6.00 фт.), черный – отрицательный Negative CABLE ASSEMBLY (6.00 Feet) Black-Negative Negative |
1 | |
| 25 | 90285 |
ВИНТ (0.312-18 x 0.625) SCREW (.312-18 x .625) |
1 | |
| 26 | 42419A1 |
КРОНШТЕЙН В СБОРЕ Floor Mounted Only BRACKET ASSEMBLY Floor Mounted Only |
1 | superseded |
| 27 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) - Optional LOCKWASHER (.312-24) - Optional |
4 | |
| 28 | 35386 |
ВИНТ (0.312-18 x 1.00) - Optional SCREW (.312-18 x 1.00) - Optional |
4 | |
| 29 | 59784 |
ВИНТ (0.250-10 x 1.00) SCREW (.250-10 x 1.00) |
4/6 | |
| 3 | 79147A3 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | |
| 30 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4/6 | superseded |
| 31 | 862548A1 |
КОМПЛЕКТ КРОНШТЕЙНА Floor/Transom Mounted BRACKET KIT Floor/Transom Mounted |
1 | |
| 32 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 33 | 59784 |
ВИНТ (0.250-10 x 1.00) SCREW (.250-10 x 1.00) |
4 | |
| 34 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 35 | 98260 |
ВИНТ (0.375-16 x 0.620) SCREW (.375-16 x .620) |
2 | |
| 36 | 58491 |
КАНАЛ Резиновый (4.00") CHANNEL Rubber (4.00 Inches) |
2 | |
| 4 | 79091 |
ПЛАВКИЙ ПРЕДОХРАНИТЕЛЬ 20 ампер FUSE 20 Ampere |
1 | superseded |
| 5 | 95084A2 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 6 | 96158T |
ЭЛЕКТРОМАГНИТ SOLENOID |
2 | superseded |
| 7 | 88075 |
ФИКСАТОР RETAINER |
1 | |
| 8 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
4 | |
| 9 | 26419 |
ГАЙКА (№8-32), латунь NUT (#8-32) Brass |
4 |
