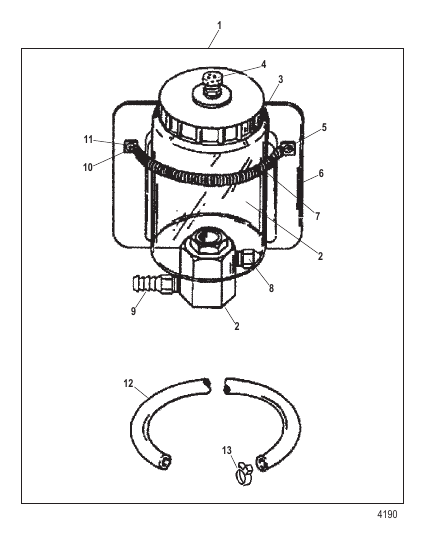

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 86250A5 |
КОМПЛЕКТ РЕЗЕРВУАРА Transmission Models RESERVOIR KIT Transmission Models |
1 | disc. |
| 10 | 58198 |
ШАЙБА (0.188 x 0.438 x 0.050) WASHER (.188 x .438 x .050) |
3 | |
| 11 | 22793 |
ВИНТ (№9-14 x 0.875) SCREW (#9-14 x .875) |
3 | |
| 12 | 774572 |
РУКАВ (Общая длина 48.00") Cut As Required HOSE (48.00 Inches Bulk) Cut As Required |
1 | |
| 13 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") End Of Hoses TIE STRAP (5.50 Inches) End Of Hoses |
2 | superseded |
| 2 | 86250A2 |
БАЧОК В СБОРЕ Резервуар BOTTLE ASSEMBLY Reservoir |
1 | disc. |
| 3 | 69620 |
ПРОКЛАДКА Reservoir Bottle Cover GASKET Reservoir Bottle Cover |
1 | |
| 4 | 47902 |
ФИТИНГ Breather FITTING Breather |
1 | |
| 5 | 67905 |
ФИКСАТОР Reservoir Spring RETAINER Reservoir Spring |
2 | |
| 6 | 86030 |
КРОНШТЕЙН Крепление резервуара BRACKET Reservoir Mount |
1 | disc. |
| 7 | 67908 |
ПРУЖИНА Reservoir Bracket SPRING Reservoir Bracket |
1 | |
| 8 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь FITTING (.250-18 x .62) Brass |
1 | |
| 9 | 63187 |
ФИТИНГ Ниппель (0.250-18) FITTING Barb (.250-18) |
1 |
