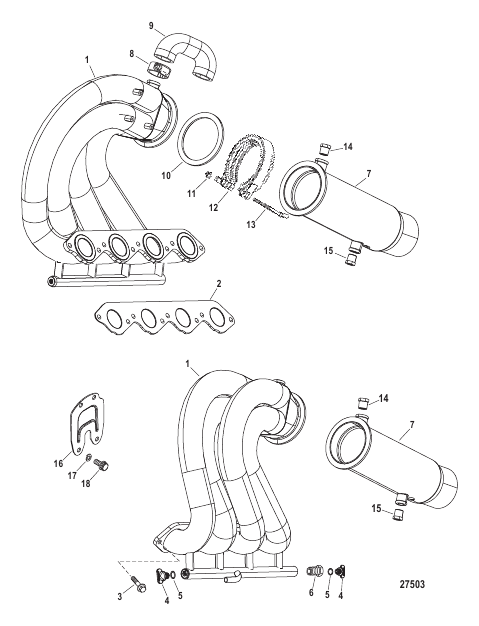

Exhaust Header / Tailpipe Assembly
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 843073A06 |
КОМПЛЕКТ ПРОКЛАДОК/УПЛОТНИТЕЛЕЙ Капитальный ремонт двигателя - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing GASKET/SEAL SET Engine Overhaul - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
1 | |
| - | 841178A05 |
ЧАСТИЧНЫЙ УЗЕЛ ДВИГАТЕЛЯ PARTIAL ENGINE ASSEMBLY |
1 | discontinued |
| 1 | 843933A01 |
КОМПЛЕКТ КОЛЛЕКТОРА Выхлоп – правый борт Also Includes Tailpipe Gasket 27-842454 [0M956602] THRU [0M960481] HEADER KIT Exhaust - Starboard Also Includes Tailpipe Gasket 27-842454 [0M956602] THRU [0M960481] |
1 | superseded |
| 1 | 843933T02 |
КОМПЛЕКТ КОЛЛЕКТОРА Выхлоп – правый борт Also Includes Tailpipe Gasket 27-842454 [0M960482] & Up HEADER KIT Exhaust - Starboard Also Includes Tailpipe Gasket 27-842454 [0M960482] & Up |
1 | superseded |
| 1 | 843934A01 |
КОМПЛЕКТ КОЛЛЕКТОРА Выхлоп – левый борт Also Includes Tailpipe Gasket 27-842454 [0M956602] THRU [0M960481] HEADER KIT Exhaust - Port Also Includes Tailpipe Gasket 27-842454 [0M956602] THRU [0M960481] |
1 | superseded |
| 1 | 843934T02 |
КОМПЛЕКТ КОЛЛЕКТОРА Выхлоп – левый борт Also Includes Tailpipe Gasket 27-842454 [0M960482] & Up HEADER KIT Exhaust - Port Also Includes Tailpipe Gasket 27-842454 [0M960482] & Up |
1 | superseded |
| 10 | 842454 |
ПРОКЛАДКА Tailpipe GASKET Tailpipe |
2 | |
| 11 | 842458 |
ГАЙКА (0.250-20) NUT (312-24) |
2 | superseded |
| 12 | 842456 |
ЗАЖИМ Блок CLAMP Band |
2 | superseded |
| 13 | 842457 |
БОЛТ С Т-ОБРАЗНОЙ ГОЛОВКОЙ (0.250-20) T BOLT (.312-24) |
2 | |
| 14 | 842453406 |
ФИТИНГ Ограничитель (0.406) FITTING Restrictor (.406) |
2 | |
| 15 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
2 | superseded |
| 16 | 861776A2 |
КОМПЛЕКТ ПЛАСТИН Exhaust Blockoff PLATE KIT Exhaust Blockoff |
1 | |
| 17 | 41471 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
4 | |
| 18 | 98794 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
4 | superseded |
| 2 | 840940 |
ПРОКЛАДКА Exhaust Header GASKET Exhaust Header |
2 | |
| 3 | 821131 |
ВИНТ (0.375-16 x 1.00) SCREW (.375-16 x 1.00) |
16 | |
| 4 | 806608A1 |
Комплект пробки (0.500-13), королевский синий - Design I - Marked 22-806608 PLUG KIT (.500-13) Royal Blue - Design I - Marked 22-806608 |
4 | superseded |
| 4 | 806608A02 |
УЗЕЛ ПРОБКИ (0.500-13), синий - Design II - Marked 8M2000874 PLUG ASSEMBLY (.500-13) Blue - Design II - Marked 8M2000874 |
4 | superseded |
| 5 | 831985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.468 x 0.078) - Design I O-RING (.468 x .078) - Design I |
4 | |
| 5 | 8M2000926 |
УПЛОТНЕНИЕ - Design II SEAL - Design II |
4 | superseded |
| 6 | 8M0022059 |
ВТУЛКА Редуктор (0.750-14/0.500-13) BUSHING Reducer (.750-14/.500-13) |
2 | |
| 7 | 8M0025008 |
ВЫВОДЯЩАЯ ТРУБА ГЛУШИТЕЛЯ В СБОРЕ TAILPIPE ASSEMBLY |
2 | discontinued |
| 8 | 180763 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
4 | |
| 9 | 8424181 |
РУКАВ Литой HOSE Molded |
2 |
