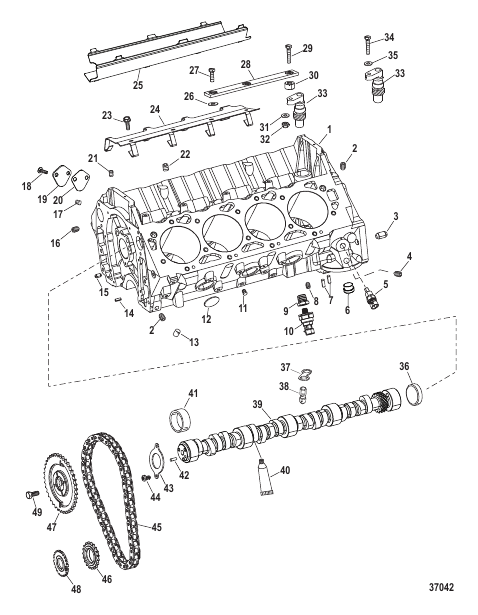

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 843073A06 |
КОМПЛЕКТ ПРОКЛАДОК/УПЛОТНИТЕЛЕЙ Капитальный ремонт двигателя - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing GASKET/SEAL SET Engine Overhaul - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
1 | |
| 1 | 841178A05 |
ЧАСТИЧНЫЙ УЗЕЛ ДВИГАТЕЛЯ - NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108 PARTIAL ENGINE ASSEMBLY - NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108 |
1 | disc. |
| 10 | 881879011 |
ДАТЧИК Давление (0-100 фунт./кв. дюйм) Oil Pressure SENSOR Pressure (0 - 100 PSI) Oil Pressure |
1 | superseded |
| 11 | 36382 |
ФИТИНГ (0.250-18 x 0.62), латунь Lower Side Of Block FITTING (.250-18 x .62) Brass Lower Side Of Block |
2 | |
| 12 | 34270 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА (1.625) EXPANSION PLUG (1.625) |
6 | |
| 13 | 845758 |
ШТИФТ Штифт .660 Relaxed Outside Diameter x .500 PIN Dowel .660 Relaxed Outside Diameter x .500 |
4 | superseded |
| 14 | 843143 |
ШТИФТ Пружина Port Side - Timing Cover PIN Spring Port Side - Timing Cover |
1 | |
| 15 | 843378 |
ШТИФТ Штифт (.250) Timing Cover PIN Dowel (.250) Timing Cover |
1 | |
| 16 | 845606 |
ПРОБКА (0.250-18 x 0.410) – головка с внутренним шестигранником с отверстием Oil Gallery PLUG (.250-18 x .410) Allen Head With Hole Oil Gallery |
2 | superseded |
| 17 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь [0M959863] & Up PLUG (.375-18) Hex - Steel [0M959863] & Up |
1 | superseded |
| 18 | 16498 |
ВИНТ (0.375-16 x 0.750), полукруглая головка – нержавеющая сталь [0M959863] & Up SCREW (.375-16 x .750) Button Head - Stainless Steel [0M959863] & Up |
2 | |
| 19 | 8M0001406 |
ПЛАСТИНА Блокировка – топливный насос [0M959863] & Up PLATE Block Off - Fuel Pump [0M959863] & Up |
1 | |
| 2 | 32561 |
ПРОБКА Труба – головка с внутренним шестигранником (0.250-18) Oil Gallery Rear Cam Plugs PLUG Pipe - Allen Head (.250-18) Oil Gallery Rear Cam Plugs |
3 | superseded |
| 20 | 34213 |
ПРОКЛАДКА Block Off Plate [0M959863] & Up GASKET Block Off Plate [0M959863] & Up |
1 | |
| 21 | 390721 |
ПРОБКА Труба (0.125-27), латунь [0M959863] & Up PLUG Pipe (.125-27) Brass [0M959863] & Up |
1 | |
| 22 | 328022 |
ПРОБКА Труба (0.125-27), латунь Oil Gallery PLUG Pipe (.125-27) Brass Oil Gallery |
3 | |
| 23 | 841389 |
ВИНТ (0.312-18 x 0.620) - Design I - With Support SCREW (.312-18 x .620) - Design I - With Support |
2 | |
| 23 | 841389 |
ВИНТ (0.312-18 x 0.620) - Design II - Without Support SCREW (.312-18 x .620) - Design II - Without Support |
4 | |
| 24 | 845755 |
ФИКСАТОР Lifter Guide RETAINER Lifter Guide |
1 | superseded |
| 25 | 816073 |
ЭКРАН Маслозаборник SHIELD Oil Intake |
1 | superseded |
| 26 | 63032 |
ШАЙБА (0.320 x 1.00 x 0.120), нержавеющая сталь - Design I - With Support WASHER (.320 x 1.00 x .120) Stainless Steel - Design I - With Support |
2 | disc. |
| 27 | 35386 |
ВИНТ (0.312-18 x 1.00) - Design I - With Support SCREW (.312-18 x 1.00) - Design I - With Support |
2 | |
| 28 | 842956 |
ОПОРА Привод масляного насоса - Design I [0M956327] THRU [0M959862] SUPPORT Oil Pump Drive - Design I [0M956327] THRU [0M959862] |
1 | |
| 29 | 73657 |
ВИНТ (0.312-18 x 1.50) - Design I - With Support SCREW (.312-18 x 1.50) - Design I - With Support |
1 | |
| 3 | 843379 |
ШТИФТ Штифт (0.6206/0.6211 x 1.20) Flywheel Housing PIN Dowel (.6206/.6211 x 1.20) Flywheel Housing |
2 | disc. |
| 30 | 842963 |
ПРОСТАВКА - Design I - With Support SPACER - Design I - With Support |
1 | |
| 31 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь - Design I - With Support WASHER (.330 x .750 x .060) Stainless Steel - Design I - With Support |
1 | |
| 32 | 82670910 |
ГАЙКА (0.312-18), нержавеющая сталь - Design I - With Support NUT (.312-18) Stainless Steel - Design I - With Support |
1 | |
| 33 | 881669 |
ПРИВОД Масляный насос DRIVE Oil Pump |
1 | superseded |
| 34 | 35386 |
ВИНТ (0.312-18 x 1.00) - Design II - Without Support SCREW (.312-18 x 1.00) - Design II - Without Support |
1 | |
| 35 | 56720 |
ШАЙБА (0.330 x 0.750 x 0.060), нержавеющая сталь - Design II - Without Support WASHER (.330 x .750 x .060) Stainless Steel - Design II - Without Support |
1 | |
| 36 | 94140 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА EXPANSION PLUG |
1 | |
| 37 | 845754 |
НАПРАВЛЯЮЩАЯ Lifter GUIDE Lifter |
8 | |
| 38 | 849947T |
СЪЕМНИК LIFTER |
16 | superseded |
| 39 | 840919T |
РАСПРЕДЕЛИТЕЛЬНЫЙ ВАЛ CAMSHAFT |
1 | superseded |
| 4 | 328022 |
ПРОБКА Труба (0.125-27), латунь [0M959863] & Up PLUG Pipe (.125-27) Brass [0M959863] & Up |
1 | |
| 40 | 15875 |
СМАЗКА Camshaft (8 Ounces) LUBE Camshaft (8 Ounces) |
AR | disc. |
| 41 | 85684 |
НАБОР ПОДШИПНИКОВ BEARING SET |
1 | |
| 42 | 843378 |
ШТИФТ Штифт (.250) PIN Dowel (.250) |
1 | |
| 43 | 845941 |
ФИКСАТОР Gear Thrust RETAINER Gear Thrust |
1 | |
| 44 | 845943 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 45 | 8M8023355 |
КОМПЛЕКТ РАСПРЕДЕЛИТЕЛЬНОГО НАБОРА TIMING SET KIT |
1 | |
| 46 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Crankshaft Sprocket NOT SOLD SEPARATE Crankshaft Sprocket |
1 | |
| 47 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Camshaft Sprocket NOT SOLD SEPARATE Camshaft Sprocket |
1 | |
| 48 | 8M0000102 |
ЛОПАСТНОЙ ДАТЧИК Цель датчика WHEEL Sensor Target |
1 | superseded |
| 49 | 845942 |
ВИНТ (0.312-18 x 0.750) SCREW (.312-18 x .750) |
3 | superseded |
| 5 | 805218T |
ДАТЧИК Coolant Temperature SENSOR Coolant Temperature |
1 | |
| 6 | 8M0007929 |
ПРОБКА Блокировка PLUG Block Off |
1 | |
| 7 | 843378 |
ШТИФТ Штифт (.250) Bottom Of Block PIN Dowel (.250) Bottom Of Block |
2 | |
| 8 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь - NOTE: Bottom Of Block Oil Plug PLUG (.375-18) Hex - Steel - NOTE: Bottom Of Block Oil Plug |
1 | superseded |
| 8 | 36373 |
ПРОБКА (0.375-18), шестигранник – сталь - NOTE: Rear Of Block Oil Plugs PLUG (.375-18) Hex - Steel - NOTE: Rear Of Block Oil Plugs |
2 | superseded |
| 9 | 64013 |
ФИТИНГ (Вилка 0.375 к гнезду 0.125) FITTING (.375 Male To .125 Female) |
1 |
