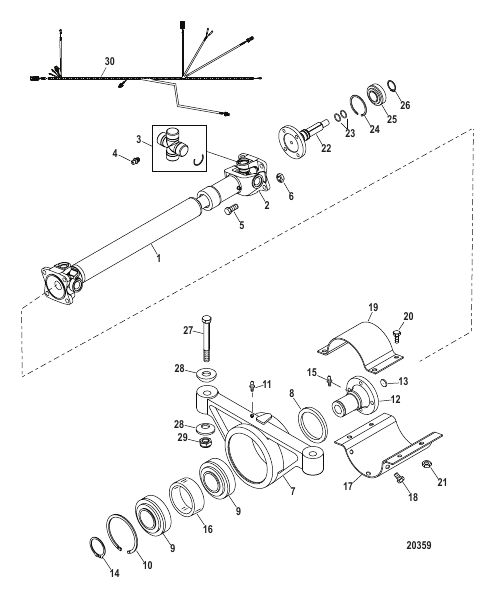

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 94819T5 |
КАРДАННЫЙ ВАЛ В СБОРЕ (34.50") DRIVESHAFT ASSEMBLY (34.50 Inches) |
1 | |
| 10 | 93914 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 11 | 74036 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Input Shaft NOT SOLD SEPARATE Input Shaft |
1 | |
| 13 | 93921 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА EXPANSION PLUG |
1 | |
| 14 | 93915 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 15 | 74036 |
ФИТИНГ Смазка (Use with greased bearing) FITTING Grease (Use with greased bearing) |
1 | superseded |
| 15 | 8M2015913 |
ПРОБКА (0.250-28 x 0.320) (Use with non-greased bearing) PLUG (.250-28 x .320) (Use with non-greased bearing) |
1 | superseded |
| 16 | 817417T |
ПРОСТАВКА Bearing SPACER Bearing |
1 | |
| 17 | 93918A1 |
ЭКРАН Нижняя часть Quantity One Included With 817416A4 SHIELD Lower Quantity One Included With 817416A4 |
2 | |
| 18 | 76926 |
ВИНТ (0.375-16 x 0.875) Quantity Three Included With 817416A4 SCREW (.375-16 x .875) Quantity Three Included With 817416A4 |
6 | |
| 19 | 93919A1 |
ЭКРАН Верхняя часть SHIELD Upper |
2 | |
| 2 | 52504T |
ФЛАНЕЦ Вилка FLANGE Yoke |
2 | |
| 20 | 76926 |
ВИНТ (0.375-16 x 0.875) SCREW (.375-16 x .875) |
8 | |
| 21 | 82670912 |
ГАЙКА (0.375-16), нержавеющая сталь NUT (.375-16) Stainless Steel |
8 | |
| 22 | 939064 |
ВАЛ Мощность SHAFT Output |
1 | superseded |
| 23 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) O-RING (.862 x .103) |
2 | |
| 24 | 94104 |
КОЛЬЦО Стопор (.924) RING Retaining (.924) |
1 | |
| 25 | 879194A03 |
КОМПЛЕКТ ПОДШИПНИКОВ КАРДАНА GIMBAL BEARING KIT |
1 | |
| 26 | 841897T |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 27 | 57053 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
2 | |
| 28 | 42307 |
ШАЙБА Spherical WASHER Spherical |
4 | |
| 29 | 898832 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | |
| 3 | 61221T |
КРЕСТОВИНА И ПОДШИПНИК С зажимами CROSS AND BEARING With Clips |
2 | |
| 30 | 897520T01 |
ЖГУТ ПРОВОДОВ В СБОРЕ Удлинитель HARNESS ASSEMBLY Extension |
1 | disc. |
| 4 | 74036 |
ФИТИНГ Смазка FITTING Grease |
2 | superseded |
| 5 | 805159 |
ВИНТ (0.437-20 x 1.500) SCREW (.437-20 x 1.500) |
8 | |
| 6 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь NUT (.437-20) Stainless Steel |
8 | superseded |
| 7 | 817416A4 |
КОРПУС В СБОРЕ Bearing HOUSING ASSEMBLY Bearing |
1 | |
| 8 | 93924 |
УПЛОТНЕНИЕ Oil SEAL Oil |
1 | |
| 9 | 93944A2 |
НАБОР ПОДШИПНИКОВ Шарик BEARING SET Ball |
1 |
