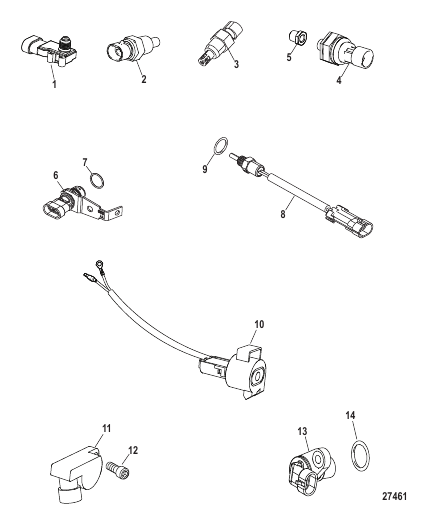

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 854445 |
ДАТЧИК ДАТЧИК ДАВЛЕНИЯ ВОЗДУХА В КОЛЛЕКТОРЕ Manifold Absolute Pressure - NOTE: Also See Intake Plenum And Components Section SENSOR MAP Manifold Absolute Pressure - NOTE: Also See Intake Plenum And Components Section |
1 | |
| 10 | 816492A6 |
КОМПЛЕКТ СИГНАЛИЗАТОРА Audio Warning - NOTE: Remote Mounted Near Helm ALARM KIT Audio Warning - NOTE: Remote Mounted Near Helm |
1 | |
| 11 | 849903 |
ДАТЧИК Положение дроссельной заслонки - NOTE: Also See Intake Plenum And Components Section SENSOR Throttle Position - NOTE: Also See Intake Plenum And Components Section |
1 | |
| 12 | 805400 |
ВИНТ (№8-32 x 0.500), нержавеющая сталь SCREW (#8-32 x .500) Stainless Steel |
2 | |
| 13 | 8M0011986 |
ДАТЧИК В СБОРЕ - NOTE: Also See Circulating Water Pump And Front Cover Section - NOTE: Also See Circulating Water Pump And Front Cover Section SENSOR ASSEMBLY - NOTE: Also See Circulating Water Pump And Front Cover Section - NOTE: Also See Circulating Water Pump And Front Cover Section |
1 | superseded |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-Ring NOT SOLD SEPARATE O-Ring |
1 | |
| 2 | 805218T |
ДАТЧИК Coolant Temperature - NOTE: Also See Cylinder Block And Camshaft Section SENSOR Coolant Temperature - NOTE: Also See Cylinder Block And Camshaft Section |
1 | |
| 3 | 805223T |
ДАТЧИК Intake Air Temperature - NOTE: Also See Intake Plenum And Components Section SENSOR Intake Air Temperature - NOTE: Also See Intake Plenum And Components Section |
1 | |
| 4 | 881879011 |
ДАТЧИК Давление (0-100 фунт./кв. дюйм) Oil - NOTE: Also See Cylinder Block And Camshaft Section SENSOR Pressure (0 - 100 PSI) Oil - NOTE: Also See Cylinder Block And Camshaft Section |
1 | superseded |
| 4 | 881879011 |
ДАТЧИК Давление (0-100 фунт./кв. дюйм) Fuel - NOTE: Also See Fuel Rails And Injectors Section SENSOR Pressure (0 - 100 PSI) Fuel - NOTE: Also See Fuel Rails And Injectors Section |
1 | superseded |
| 4 | 881879011 |
ДАТЧИК Давление (0-100 фунт./кв. дюйм) Water - NOTE: Also See Oil Cooler And Oil Filter Section SENSOR Pressure (0 - 100 PSI) Water - NOTE: Also See Oil Cooler And Oil Filter Section |
1 | superseded |
| 5 | 64013 |
ФИТИНГ (Вилка 0.375 к гнезду 0.125) - NOTE: Used With Oil Pressure Sensor - Also See Cylinder Block And Camshaft Section FITTING (.375 Male To .125 Female) - NOTE: Used With Oil Pressure Sensor - Also See Cylinder Block And Camshaft Section |
1 | |
| 6 | 864297T01 |
ДАТЧИК В СБОРЕ - NOTE: Also See Circulating Water Pump And Front Cover Section - NOTE: Also See Circulating Water Pump And Front Cover Section SENSOR ASSEMBLY - NOTE: Also See Circulating Water Pump And Front Cover Section - NOTE: Also See Circulating Water Pump And Front Cover Section |
1 | |
| 7 | 885192 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 8 | 885342002 |
ДАТЧИК В СБОРЕ Water Temperature - NOTE: Also See Closed Cooling System Section SENSOR ASSEMBLY Water Temperature - NOTE: Also See Closed Cooling System Section |
1 | superseded |
| 9 | 896699 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.78 мм x 0.08 мм) O-RING (1.78 mm x .08 mm) |
1 |
