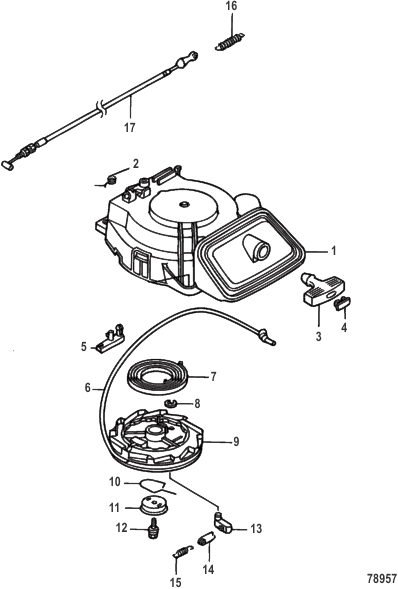

Recoil Starter Components
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0230663 |
STARTER ASSEMBLY Recoil STARTER ASSEMBLY Recoil |
1 | |
| 1 | 8M0138746 |
HOUSING Starter HOUSING Starter |
1 | |
| 10 | 8M0126988 |
SPRING Friction SPRING Friction |
1 | |
| 11 | 812638002 |
ПЛАСТИНА Трение PLATE Friction |
1 | |
| 12 | 812637002 |
БОЛТ BOLT |
1 | superseded |
| 13 | 812635T03 |
ХРАПОВИК RATCHET |
1 | |
| 14 | 898101148 |
НАПРАВЛЯЮЩАЯ Храповик GUIDE Ratchet |
1 | |
| 15 | 812634004 |
ПРУЖИНА Возврат SPRING Return |
1 | |
| 16 | 898101185 |
ПРУЖИНА SPRING |
1 | |
| 16 | 812645009 |
ПРУЖИНА Jet Remote Control SPRING Jet Remote Control |
1 | |
| 17 | 898101183 |
КАБЕЛЬ Замок CABLE Lock |
1 | |
| 17 | 898101634 |
ПРОВОД Замок Jet Remote Control WIRE Lock Jet Remote Control |
1 | |
| 2 | 812645008 |
ПРУЖИНА SPRING |
1 | |
| 3 | 898101182 |
РУКОЯТКА Стартер HANDLE Starter |
1 | |
| 4 | 898101325 |
АНКЕР Трос ANCHOR Rope |
1 | |
| 5 | 804031002 |
ЗАМОК Стартер LOCK Starter |
1 | |
| 6 | 8M0110715 |
ТРОС Стартер ROPE Starter |
1 | |
| 7 | 804024008 |
ПРУЖИНА Стартер SPRING Starter |
1 | |
| 8 | 852784001 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 9 | 803717002 |
БАРАБАН REEL |
1 |
