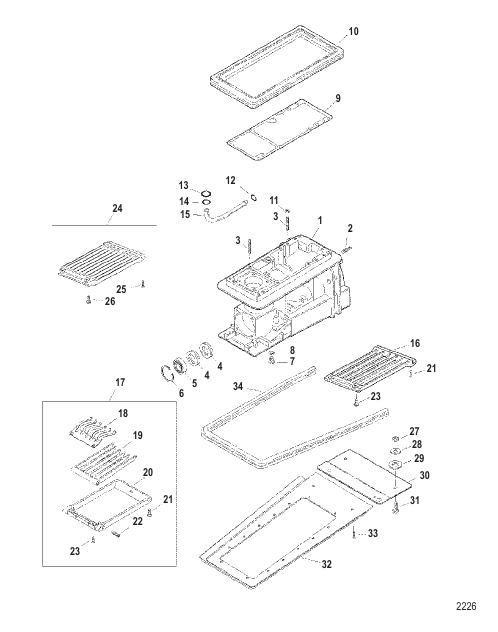

Jet Drive Housing Components
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 883264A1 |
КОМПЛЕКТ УПЛОТНИТЕЛЕЙ/ПРОКЛАДОК Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown SEAL/GASKET SET Jet Drive Housing - NOTE: See Seal/Gasket Set - Jet Drive Housing Section For Parts Breakdown |
1 | |
| - | 859438A2 |
КОМПЛЕКТ КОРПУСА В сборе Jet Drive - NOTE: No Impeller HOUSING KIT Complete Jet Drive - NOTE: No Impeller |
1 | |
| 1 | 859438A2 |
КОМПЛЕКТ КОРПУСА В сборе Jet Drive - NOTE: No Impeller HOUSING KIT Complete Jet Drive - NOTE: No Impeller |
1 | |
| 1 | 859438A5 |
КОРПУС В СБОРЕ Основной Jet Drive HOUSING ASSEMBLY Basic Jet Drive |
1 | |
| 10 | 879634 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Pump Mount GROMMET Pump Mount |
1 | |
| 11 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
4 | |
| 12 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
1 | |
| 13 | 21836 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.796 x 0.139) O-RING (.796 x .139) |
1 | superseded |
| 14 | 859774 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.412 x 0.210) O-RING (.412 x .210) |
1 | |
| 15 | 859567 |
ТРУБА Water TUBE Water |
1 | |
| 16 | 852962T |
ЭКРАН Inlet - 6 Tines Aluminum SCREEN Inlet - 6 Tines Aluminum |
1 | |
| 17 | 856627T3 |
КОМПЛЕКТ РЕШЕТОК ДЛЯ СЛИВА ВОДЫ HYDRO SURGE GRATE KIT |
OPT | |
| 18 | 856628T |
ПРУЖИНА Inlet Grate SPRING Inlet Grate |
1 | |
| 19 | 885588T |
ЗУБЦЫ Inlet Grate TINES Inlet Grate |
1 | |
| 2 | 63186 |
ФИТИНГ (.125-27) Siphon Drain Hose FITTING (.125-27) Siphon Drain Hose |
1 | discontinued |
| 20 | 856627T |
РАМА Inlet Grate FRAME Inlet Grate |
1 | |
| 21 | 832838 |
ВИНТ (M6 x 20) With Nylon Patch SCREW (M6 x 20) With Nylon Patch |
2 | superseded |
| 22 | 856732 |
ВИНТ Специальный Pivot SCREW Special Pivot |
2 | discontinued |
| 23 | 4010725 |
ВИНТ (M8 x 25) SCREW (M8 x 25) |
2 | |
| 24 | 854810T1 |
КОМПЛЕКТ РЕШЕТОК Кулисное впускное отверстие 12 Tines - Stainless Steel - NOTE: For Shallow Rocky Conditions GRATE KIT Rock Inlet 12 Tines - Stainless Steel - NOTE: For Shallow Rocky Conditions |
OPT | |
| 25 | 832838 |
ВИНТ (M6 x 20) With Nylon Patch SCREW (M6 x 20) With Nylon Patch |
2 | superseded |
| 26 | 4010720 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
2 | |
| 27 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 28 | 46765 |
ШАЙБА (0.390 x 1.50 x 0.120) WASHER (.390 x 1.50 x .120) |
2 | |
| 29 | 877799 |
ШАЙБА (0.900 x 1.50 x 0.125) WASHER (.900 x 1.50 x .125) |
2 | |
| 3 | 820640 |
ШПИЛЬКА (M10 x 55) STUD (M10 x 55) |
4 | |
| 30 | 853905T |
ПЛАСТИНА Trim PLATE Trim |
1 | |
| 31 | 850047 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 32 | 831856A1 |
КОМПЛЕКТ НАПРАВЛЯЮЩЕЙ ПЛАСТИНЫ 14.27 x 24.06 RIDE PLATE KIT 14.27 x 24.06 |
1 | |
| 32 | 883795A2 |
КОМПЛЕКТ НАПРАВЛЯЮЩЕЙ ПЛАСТИНЫ 14.05 x 23.91 RIDE PLATE KIT 14.05 x 23.91 |
1 | |
| 33 | 832838 |
ВИНТ (M6 x 20) With Nylon Patch SCREW (M6 x 20) With Nylon Patch |
16 | superseded |
| 34 | 859441A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Ride Plate Use with Ride Plate 883795A 2 SEAL KIT Ride Plate Use with Ride Plate 883795A 2 |
1 | |
| 34 | 8301231 |
УПЛОТНЕНИЕ Use with Ride Plate 831856A 1 SEAL Use with Ride Plate 831856A 1 |
1 | |
| 4 | 76868 |
УПЛОТНЕНИЕ Oil SEAL Oil |
2 | superseded |
| 5 | 63742T |
ПОДШИПНИК Шарик BEARING Ball |
1 | |
| 6 | 55626 |
КОЛЬЦО Защелка RING Snap |
1 | |
| 7 | 79953Q04 |
КОМПЛЕКТ ВИНТОВ Слив SCREW KIT Drain |
2 | |
| 8 | 191833 |
УПЛОТНЕНИЕ Sealing SEAL Sealing |
2 | superseded |
| 9 | 859452 |
ПРОКЛАДКА Jet Drive Housing To Top Cover GASKET Jet Drive Housing To Top Cover |
1 |
