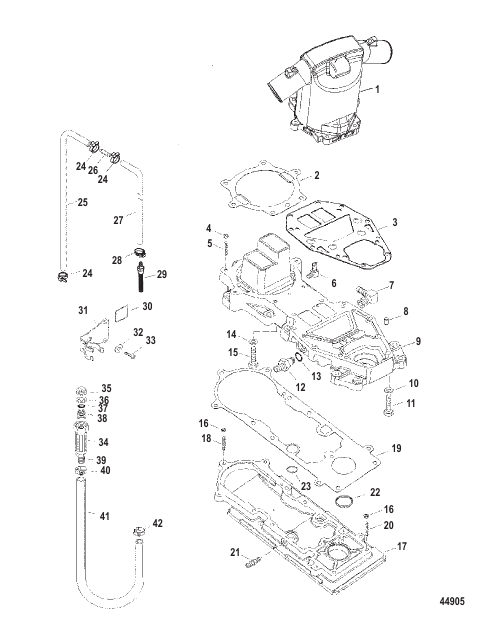

| # | Part Number | Description | Qty | Status |
|---|
| - |
883298A1 |
GASKET/SEAL SET Powerhead
|
1 |
|
| - |
883264A1 |
SEAL/GASKET SET Jet Drive Housing
|
1 |
|
| - |
8M0051164 |
POWERHEAD ASSEMBLY
|
1 |
|
| 1 |
879890A3 |
CHAMBER KIT Expansion - With Hose 21.00 Inches
|
1 |
|
| 10 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
8 |
|
| 11 |
35787 |
SCREW (.375-16 x 2.250)
|
8 |
|
| 12 |
877311 |
FITTING Strainer
|
1 |
|
| 13 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 14 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 15 |
72094 |
SCREW (.375-16 x 3.750)
|
2 |
|
| 16 |
826292 |
NUT (M10) Brass/Nickel Plated
|
11 |
|
| 17 |
859396A1 |
COVER ASSEMBLY Top Of Jet Drive Housing
|
1 |
|
| 18 |
853303 |
STUD (M10 x 53)
|
5 |
|
| 19 |
859398 |
GASKET Engine Adaptor
|
1 |
|
| 2 |
880738 |
GASKET Expansion Chamber To Adaptor Plate
|
1 |
|
| 20 |
859764 |
STUD (M10 x 101)
|
6 |
|
| 21 |
70146 |
CONNECTOR Barbed (.250-18)
|
1 |
|
| 22 |
20826 |
O-RING (2.230 x .139)
|
1 |
|
| 23 |
90196 |
O-RING (.921 x .139)
|
1 |
superseded
|
| 24 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 25 |
1678978 |
HOSE (9.00 Feet Bulk) Cut 42.00 Inches - Siphon
|
1 |
superseded
|
| 26 |
858456 |
SIPHON BREAK
|
1 |
|
| 27 |
1678978 |
HOSE (9.00 Feet Bulk) Cut 18.00 Inches - Siphon
|
1 |
superseded
|
| 28 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 29 |
8348084 |
STRAINER Siphon Hose
|
1 |
|
| 3 |
8231423 |
GASKET Block To Exhaust Expansion Chamber
|
1 |
|
| 30 |
850390 |
DECAL Flushing Adaptor
|
1 |
|
| 31 |
850160 |
CLIP Flushing Assembly Holder
|
1 |
disc.
|
| 32 |
4002314 |
WASHER
|
3 |
|
| 33 |
88417 |
SCREW (#12-24 x .620)
|
3 |
|
| 34 |
820543A5 |
ADAPTER ASSEMBLY Flushing
|
1 |
|
| 35 |
821908 |
PLUG Top
|
1 |
|
| 36 |
821915 |
WASHER
|
1 |
|
| 37 |
30641 |
O-RING (.299 x .103)
|
1 |
|
| 38 |
8219631 |
CHECK VALVE
|
1 |
|
| 39 |
33066 |
CONNECTOR (.500-14) Straight - Brass
|
1 |
|
| 4 |
826365 |
NUT (M8)
|
6 |
|
| 40 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 41 |
855258112 |
HOSE (60.00 Inches Bulk) Cut As Required
|
1 |
|
| 42 |
815504206 |
CLAMP Worm Gear
|
1 |
|
| 5 |
884824 |
STUD (M8 x 50)
|
6 |
|
| 6 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 7 |
8603462 |
ELBOW 90 Degree
|
1 |
|
| 8 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 9 |
859395T |
ADAPTER Engine
|
1 |
|
