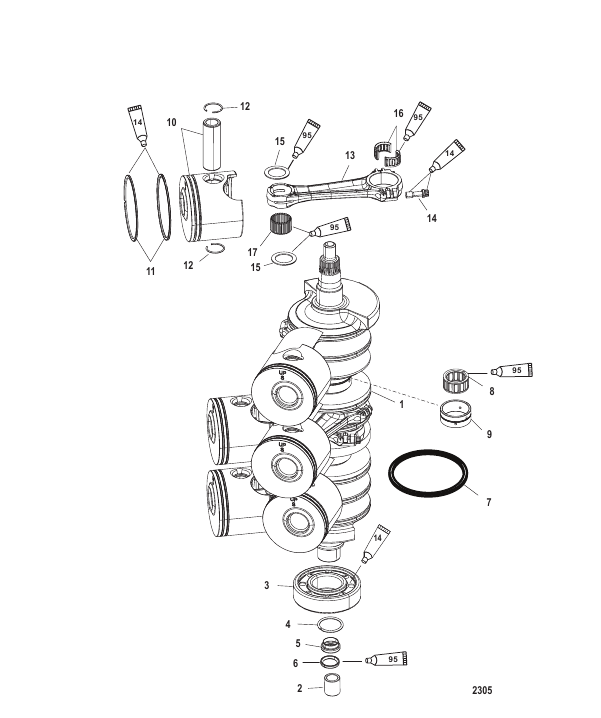

| # | Part Number | Description | Qty | Status |
|---|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| - |
8M0051164 |
POWERHEAD ASSEMBLY
|
1 |
|
| 1 |
8M0051478 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
854687T5 |
PISTON (Starboard)
|
3 |
|
| 10 |
854686T5 |
PISTON (Port)
|
3 |
|
| 11 |
840684A12 |
RING SET Piston (12 Rings per Set)
|
1 |
|
| 12 |
857196 |
LOCK RING
|
12 |
|
| 13 |
818141A13 |
CONNECTING ROD ASSEMBLY
|
6 |
|
| 14 |
763491 |
SCREW (.312-24 x .875)
|
12 |
|
| 15 |
8M0012298 |
THRUST WASHER
|
12 |
|
| 16 |
8M0045428 |
BEARING KIT
|
6 |
superseded
|
| 17 |
822553 |
BEARING Needle
|
174 |
superseded
|
| 2 |
78662 |
WEAR SLEEVE
|
1 |
|
| 3 |
67923T |
BEARING Ball (Lower)
|
1 |
|
| 4 |
67446 |
RING
|
1 |
|
| 5 |
54196A6 |
CARRIER ASSEMBLY
|
1 |
|
| 6 |
65800 |
PACKING
|
1 |
|
| 7 |
67377T |
RING Sealing
|
9 |
|
| 8 |
16756A6 |
BEARING KIT
|
2 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Bearing-Race
|
2 |
|
