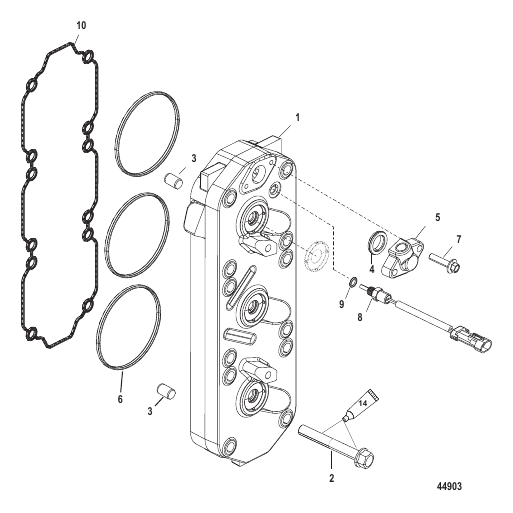

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814754A00 | GASKET SET Engine | 1 | superseded |
| - | 8M0051164 | POWERHEAD ASSEMBLY | 1 | |
| 1 | 878109T1 | CYLINDER HEAD ASSEMBLY (Port) | 1 | |
| 1 | 878110T1 | CYLINDER HEAD ASSEMBLY (Starboard) | 1 | |
| 10 | 8584521 | SEAL | 2 | superseded |
| 2 | 878217 | SCREW (.375-16 x 2.750) | 24 | superseded |
| 3 | 63779 | PIN Dowel (.250 x .625) | 4 | |
| 4 | 62386001 | GASKET | 2 | superseded |
| 5 | 8M0039353 | COVER | 2 | |
| 6 | 8597721 | SEAL | 6 | |
| 7 | 82130025 | SCREW (M6 x 25) | 4 | |
| 8 | 885342002 | SENSOR ASSEMBLY | 2 | superseded |
| 9 | 896699 | O-RING (1.78 mm x .08 mm) | 2 |
