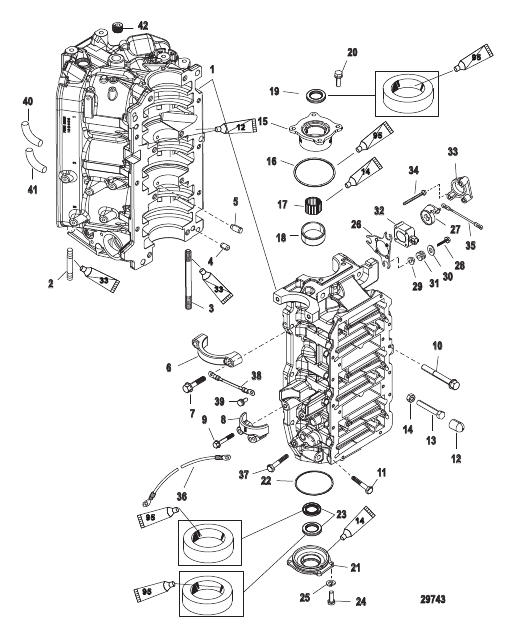

| # | Part Number | Description | Qty | Status |
|---|
| - |
814754A00 |
GASKET SET Engine
|
1 |
superseded
|
| - |
8M0051164 |
POWERHEAD ASSEMBLY
|
1 |
|
| 1 |
858961A35 |
CYLINDER BLOCK ASSEMBLY
|
1 |
|
| 10 |
66717 |
SCREW (.375-16 x 3.250)
|
8 |
|
| 11 |
74824 |
SCREW (.312-18 x 1.250)
|
6 |
|
| 12 |
26852 |
CAP Nylon
|
1 |
|
| 13 |
856832 |
SCREW (.250-20 x 1.750)
|
1 |
|
| 14 |
64015 |
NUT (.250-20)
|
1 |
|
| 15 |
832760T1 |
END CAP ASSEMBLY
|
1 |
|
| 16 |
54029 |
O-RING (2.800 x .103)
|
1 |
|
| 17 |
16756A4 |
BEARING KIT
|
1 |
|
| 18 |
NSS |
NOT SOLD SEPARATE Bearing Race
|
1 |
|
| 19 |
41953 |
SEAL
|
1 |
|
| 2 |
8M0034455 |
STUD 1.750
|
6 |
|
| 20 |
881190 |
SCREW (.312-18 x 1.00)
|
4 |
|
| 21 |
7809T1 |
END CAP ASSEMBLY
|
1 |
|
| 22 |
62700 |
O-RING (3.237 x .103)
|
1 |
|
| 23 |
41953 |
SEAL
|
2 |
|
| 24 |
28636 |
SCREW (.250-20 x .750)
|
4 |
|
| 25 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
4 |
|
| 26 |
8538821 |
BRACKET Throttle Position Indicator Mount
|
1 |
|
| 27 |
8519371 |
LEVER Throttle Position Indicator
|
1 |
|
| 28 |
82130025 |
SCREW (M6 x 25) Bracket to Crankcase
|
3 |
|
| 29 |
856954 |
BUSHING
|
3 |
|
| 3 |
670654 |
STUD (.375-16/.375-24 x 5.620) (.375 x 5.62 Inches)
|
2 |
|
| 3 |
8M0034454 |
STUD (.375-16/.375-24 x 6.87)
|
2 |
|
| 30 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 31 |
834985 |
GROMMET
|
3 |
superseded
|
| 32 |
83295211 |
INDICATOR Throttle Position (Inside)
|
1 |
superseded
|
| 33 |
8582261 |
COVER TPS
|
1 |
|
| 34 |
8508281 |
SCREW (#10-32 x 2.00) TPS to Bracket
|
3 |
|
| 35 |
8M0008117 |
LINK ASSEMBLY
|
1 |
superseded
|
| 36 |
88439A26 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 36 |
88439A46 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 37 |
81893414 |
SCREW (M8 x 14)
|
1 |
|
| 38 |
93388A1 |
CABLE ASSEMBLY (6.00 Inches) Black
|
1 |
|
| 39 |
69035 |
SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel
|
1 |
|
| 4 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 40 |
8M0047428 |
HOSE (.25 inch ID, 57.00 Inches Bulk) (Cut to 1-1/4 Inches)
|
1 |
superseded
|
| 41 |
8M0047428 |
HOSE (.25 inch ID, 57.00 Inches Bulk) (Cut to 1-1/2 Inches)
|
1 |
superseded
|
| 42 |
883048 |
PLUG (.500-14)
|
1 |
|
| 5 |
8M0036405 |
PIN (BEARING RACE)
|
2 |
|
| 6 |
8M0041759 |
BRACKET
|
1 |
superseded
|
| 7 |
828213 |
SCREW (.312-18 x 1.500) Hex Flange
|
2 |
|
| 8 |
76867 |
COVER (Bottom)
|
1 |
|
| 9 |
828214 |
SCREW (.312-18 x 2.00) Hex Flange
|
2 |
|
