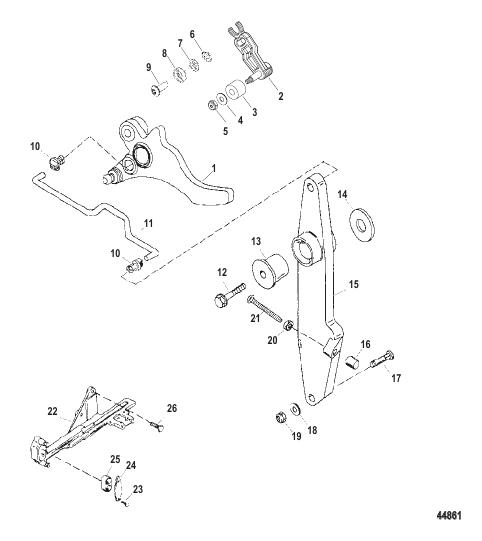

Throttle Lever And Throttle Cam Assembly
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8562211 |
КУЛАЧОК Throttle - NOTE: Also Component Of Air Hander Assembly CAM Throttle - NOTE: Also Component Of Air Hander Assembly |
1 | |
| 10 | 932481 |
ВТУЛКА Swivel - NOTE: Also Component Of Air Hander Assembly BUSHING Swivel - NOTE: Also Component Of Air Hander Assembly |
2 | superseded |
| 11 | 8508152 |
ШТОК Throttle Control ROD Throttle Control |
1 | |
| 12 | 818165 |
ВИНТ (0.375-16 x 1.75) SCREW (.375-16 x 1.75) |
1 | |
| 13 | 55164 |
ВТУЛКА BUSHING |
1 | |
| 14 | 858959 |
ПРОСТАВКА SPACER |
1 | |
| 15 | 8503891 |
РЫЧАГ Управление газом Throttle LEVER Throttle Control Throttle |
1 | superseded |
| 16 | 26852 |
ПРОБКА Нейлон CAP Nylon |
1 | |
| 17 | 42927 |
ВСТАВКА INSERT |
1 | |
| 18 | 35459 |
ШАЙБА WASHER |
1 | |
| 19 | 401386 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 2 | 850286A03 |
КОМПЛЕКТ РЫЧАГА / РОЛИКА Дроссельная заслонка - NOTE: Also Component Of Air Hander Assembly LEVER/ROLLER KIT Throttle - NOTE: Also Component Of Air Hander Assembly |
1 | |
| 20 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 21 | 64022 |
ВИНТ (0.250-20 x 2.125) SCREW (.250-20 x 2.125) |
1 | |
| 22 | 814283T6 |
КРОНШТЕЙН В СБОРЕ Анкер BRACKET ASSEMBLY Anchor |
1 | |
| 23 | 42975 |
ХОДОВОЙ ВИНТ DRIVE SCREW |
2 | |
| 24 | 98889 |
ЗАЩЕЛКА Control Cable LATCH Control Cable |
1 | |
| 25 | 39519 |
КОЛПАЧОК Barrel Retainer CUP Barrel Retainer |
1 | |
| 26 | 28782 |
ВИНТ (0.312-18 x 0.880), нержавеющая сталь SCREW (.312-18 x .880) Stainless Steel |
3 | |
| 3 | 889610 |
РОЛИК ROLLER |
1 | superseded |
| 4 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
1 | superseded |
| 5 | 826709104 |
ГАЙКА (№8-32), нержавеющая сталь NUT (#8-32) Stainless Steel |
1 | |
| 6 | 69432 |
СТОПОРНАЯ ШАЙБА Внешний (№10) LOCKWASHER External (#10) |
1 | |
| 7 | 881992 |
ШАЙБА Золотник WASHER Spool |
1 | discontinued |
| 8 | 881991 |
ШАЙБА С колпачком WASHER Cupped |
1 | discontinued |
| 9 | 889354 |
ВИНТ Специальный SCREW Special |
1 | discontinued |
