| # | Part Number | Description | Qty | Status |
|---|
| 1 |
892339T01 |

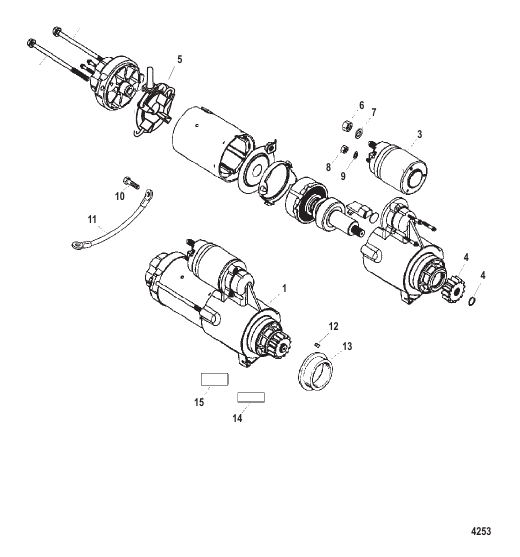

STARTER MOTOR ASSEMBLY
|
1 |
|
| 10 |
69035 |
SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel
|
1 |
|
| 11 |
93388A1 |
CABLE ASSEMBLY (6.00 Inches) Black
|
1 |
|
| 12 |
8M0043276 |
STOP Rubber
|
1 |
|
| 13 |
8M0001391 |
COLLAR Starter Motor
|
2 |
superseded
|
| 14 |
881865 |
DECAL Caution-Start in Gear
|
1 |
|
| 15 |
8272822 |
DECAL Warning High Voltage
|
1 |
|
| 2 |
803005 |
THRU BOLT
|
2 |
disc.
|
| 3 |
809463A1 |
SOLENOID KIT
|
1 |
|
| 4 |
880805A1 |
GEAR KIT
|
1 |
|
| 5 |
8M0065258 |
BRUSH SET
|
1 |
disc.
|
| 6 |
400213 |
NUT (M8) Stainless Steel
|
1 |
|
| 7 |
26993 |
LOCKWASHER (.312)
|
1 |
superseded
|
| 8 |
400211 |
NUT (M5) Stainless Steel
|
1 |
|
| 9 |
400255 |
LOCKWASHER (M5)
|
1 |
|
