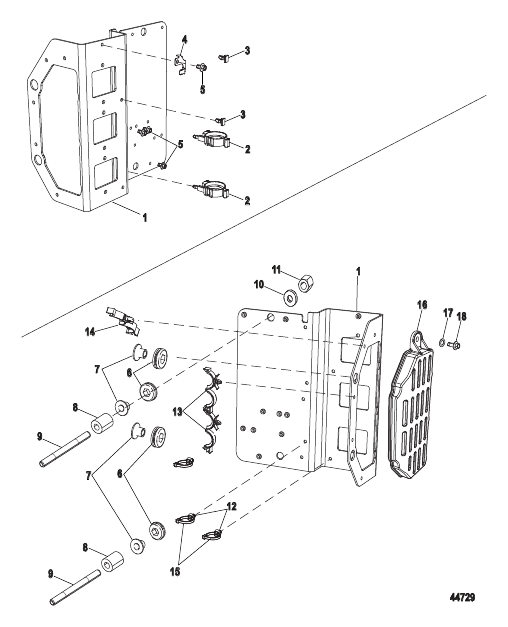

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0048224 | BRACKET | 1 | disc. |
| 10 | 65567 | WASHER (.265 x .750 x .048) Stainless Steel | 2 | |
| 11 | 401386 | NUT (M6) Stainless Steel | 2 | |
| 12 | 899145 | CLIP Tie Strap | 3 | |
| 13 | 858755 | CLIP (1.00) | 2 | |
| 14 | 883066 | CLIP (.865) | 1 | |
| 15 | 816311T | TIE STRAP (8.00 Inches) | AR | |
| 16 | 8M0051445 | COVER | 1 | |
| 17 | 15885 | SLEEVE | 1 | |
| 18 | 82129114 | SCREW (M6 x 14) | 1 | |
| 2 | 853947 | CLIP | 2 | |
| 3 | 879962 | CLIP | 2 | |
| 4 | 8590881 | CLIP | 1 | |
| 5 | 82129110 | SCREW (M6 x 10) | 4 | |
| 6 | 833155 | GROMMET | 4 | |
| 7 | 8502341 | BUSHING | 4 | |
| 8 | 19661 | BUSHING | 2 | |
| 9 | 8M0034424 | STUD (M6 x 50) | 2 |
