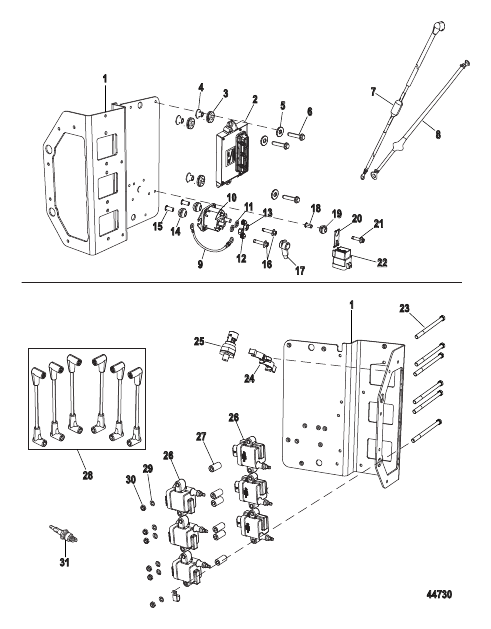

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0048224 |
BRACKET Electrical Plate
|
1 |
disc.
|
| 10 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 11 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 12 |
813938 |
CAP NUT (#10-32)
|
2 |
|
| 13 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 14 |
822179 |
GROMMET
|
2 |
|
| 15 |
818968 |
BUSHING
|
2 |
superseded
|
| 16 |
82129125 |
SCREW (M6 x 25 MM)
|
2 |
|
| 17 |
8500673 |
BOOT Insulator - Yellow
|
1 |
|
| 18 |
818968 |
BUSHING
|
1 |
superseded
|
| 19 |
818967 |
GROMMET
|
1 |
|
| 2 |
8M0048225 |
ECM, Engine Control Module
|
1 |
|
| 20 |
828102 |
BRACKET
|
1 |
superseded
|
| 21 |
82129125 |
SCREW (M6 x 25 MM)
|
1 |
|
| 22 |
882751A1 |
RELAY ASSEMBLY
|
1 |
superseded
|
| 23 |
850898 |
SCREW (.250-20 x 3.250)
|
6 |
|
| 24 |
883066 |
CLIP (.865)
|
1 |
|
| 25 |
881879A7 |
SENSOR KIT (0-50 PSI)
|
1 |
superseded
|
| 26 |
879984T01 |
COIL Ignition
|
6 |
superseded
|
| 27 |
8M0049043 |
SPACER Contains 6 Pieces
|
1 |
|
| 28 |
884442A1 |
CABLE SET Hign Tension
|
1 |
|
| 29 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
6 |
superseded
|
| 3 |
834985 |
GROMMET
|
3 |
superseded
|
| 30 |
814101 |
NUT (.250-20) Stainless Steel
|
6 |
superseded
|
| 31 |
8M0051514 |
SPARK PLUG
|
6 |
superseded
|
| 4 |
856954 |
BUSHING
|
3 |
|
| 5 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
3 |
|
| 6 |
82129125 |
SCREW (M6 x 25 MM)
|
3 |
|
| 7 |
878231A6 |
HARNESS ASSEMBLY Fuse - 100 Ampere
|
1 |
|
| 8 |
882829A1 |
CABLE ASSEMBLY Starter
|
1 |
|
| 9 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
