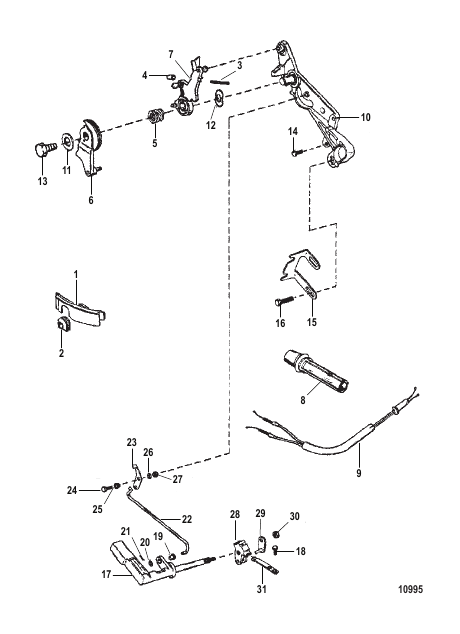

Side Shift Conversion Kit (42026A6)
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 42026A6 |
КОМПЛЕКТ ПРЕОБРАЗОВАНИЯ Side Shift CONVERSION KIT Side Shift |
1 | discontinued |
| 1 | 17234F5 |
КРЫШКА Side (Black) COVER Side (Black) |
1 | discontinued |
| 1 | 17234F2 |
КРЫШКА Side (Gray) COVER Side (Gray) |
1 | discontinued |
| 10 | 42026A2 |
ПЛАТФОРМА Control PLATFORM Control |
1 | |
| 11 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
1 | superseded |
| 12 | 69708 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 13 | 16955 |
ВИНТ (M6 x 8) SCREW (M6 x 8) |
1 | |
| 14 | 40019127 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 15 | 17848 |
КРОНШТЕЙН Cable BRACKET Cable |
1 | discontinued |
| 16 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 17 | 423301 |
РУКОЯТКА Shift HANDLE Shift |
1 | discontinued |
| 18 | 400011 |
ВИНТ (M5 x 8) SCREW (M5 x 8) |
2 | |
| 19 | 96202 |
ВТУЛКА BUSHING |
1 | discontinued |
| 2 | 17227 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 20 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
1 | |
| 21 | 21071 |
ШПЛИНТ COTTER PIN |
1 | superseded |
| 22 | 11042 |
СОЕДИНИТЕЛЬ Shift LINK Shift |
1 | discontinued |
| 23 | 110501 |
РЫЧАГ Throttle Limit LEVER Throttle Limit |
1 | discontinued |
| 24 | 400036 |
ВИНТ (M5 x 20) SCREW (M5 x 20) |
1 | discontinued |
| 25 | 85095 |
ВТУЛКА BUSHING |
1 | superseded |
| 26 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
2 | |
| 27 | 400633 |
ГАЙКА (M5) NUT (M5) |
1 | superseded |
| 28 | 423291 |
РЫЧАГ Shift LEVER Shift |
1 | discontinued |
| 29 | 42358 |
ЗАДНЯЯ ПЛАСТИНА BACKPLATE |
1 | discontinued |
| 3 | 118591 |
ВИНТ (0.190-32 x 1.750) SCREW (.190-32 x 1.750) |
1 | discontinued |
| 30 | 400633 |
ГАЙКА (M5) NUT (M5) |
1 | superseded |
| 31 | 39627 |
ПРУЖИНА SPRING |
1 | |
| 4 | 48039 |
ПРОБКА CAP |
1 | |
| 5 | 89540 |
ПРУЖИНА SPRING |
1 | |
| 6 | 42343 |
РЫЧАГ Actuating LEVER Actuating |
1 | discontinued |
| 7 | 110383 |
РЫЧАГ Control LEVER Control |
1 | discontinued |
| 8 | 823609A10 |
КОМПЛЕКТ ПЕРЕКЛЮЧАТЕЛЯ Стопорный – рукоятка газа SWITCH KIT Stop - Throttle Handle |
1 | |
| 9 | 432422 |
КАБЕЛЬ В СБОРЕ Дроссельная заслонка CABLE ASSEMBLY Throttle |
1 |
