| # | Part Number | Description | Qty | Status |
|---|
| - |
889246A80 |

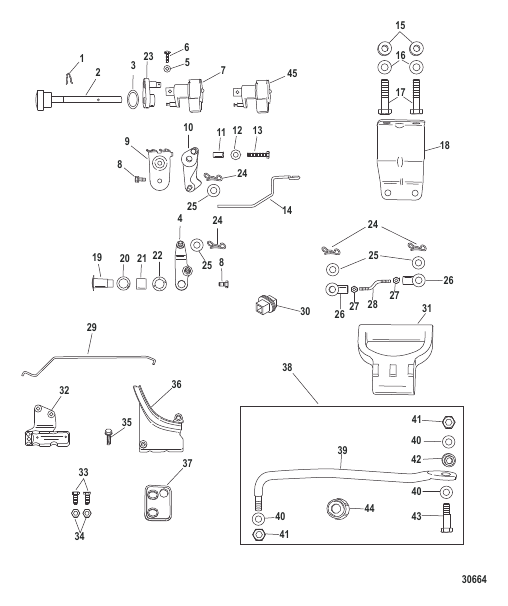

CONVERSION KIT Tiller to Remote Control - Manual Start
|
1 |
|
| 1 |
851863 |
CLIP
|
1 |
|
| 10 |
898101905 |
LEVER Throttle
|
1 |
|
| 11 |
8537154 |
SPACER
|
1 |
superseded
|
| 12 |
161404 |
WASHER
|
1 |
|
| 13 |
823042044 |
BOLT
|
1 |
superseded
|
| 14 |
803574001 |
ROD Throttle
|
1 |
|
| 15 |
95286026 |
SPACER
|
2 |
|
| 16 |
895141 |
WASHER Stainless Steel
|
2 |
superseded
|
| 17 |
804367001 |
BOLT
|
2 |
superseded
|
| 18 |
17024003 |
BRACKET Steering
|
1 |
|
| 19 |
17640001 |
SHOULDER SCREW
|
1 |
|
| 2 |
851865003 |
SHIFT SHAFT
|
1 |
|
| 20 |
16219 |
SEAL
|
1 |
|
| 21 |
16220 |
BUSHING
|
1 |
|
| 22 |
16221 |
WAVE WASHER
|
1 |
|
| 23 |
898101904 |
LEVER Shift
|
1 |
|
| 24 |
8M0021224 |
CLIP Bow-Tie
|
4 |
|
| 25 |
953925 |
WASHER
|
4 |
|
| 26 |
892775 |
JOINT Cable
|
2 |
|
| 27 |
8537225 |
NUT
|
2 |
superseded
|
| 28 |
892774 |
ROD Shift Lever
|
1 |
|
| 29 |
855561008 |
ROD Choke Link
|
1 |
superseded
|
| 3 |
16219003 |
SEAL
|
1 |
|
| 30 |
881305007 |
GROMMET
|
1 |
|
| 31 |
815082002 |
HANDLE Carrying
|
1 |
|
| 32 |
898101635 |
BRACKET
|
1 |
|
| 33 |
16832 |
BOLT (M6 x 16)
|
2 |
|
| 34 |
853722022 |
NUT
|
2 |
superseded
|
| 35 |
825702002 |
BOLT Stainless Steel
|
1 |
superseded
|
| 36 |
898101651 |
COVER
|
1 |
|
| 37 |
898101902 |
GROMMET
|
1 |
|
| 38 |
853824A03 |
DRAG LINK KIT
|
1 |
|
| 39 |
NSS |
NOT SOLD SEPARATE Steering Link Rod
|
1 |
|
| 4 |
898101903 |
ARM Shift
|
1 |
|
| 40 |
9539210 |
WASHER
|
3 |
|
| 41 |
161473 |
NUT Nylon
|
2 |
|
| 42 |
853826001 |
SPACER
|
1 |
|
| 43 |
851866007 |
BOLT
|
1 |
|
| 44 |
853825 |
CAP
|
1 |
|
| 45 |
802971002 |
SHIFT DETENT
|
1 |
|
| 5 |
16335 |
WASHER
|
1 |
|
| 6 |
855544014 |
SCREW
|
1 |
|
| 7 |
802971002 |
SHIFT DETENT
|
1 |
|
| 8 |
82304234 |
BOLT
|
2 |
superseded
|
| 9 |
853739003 |
BRACKET
|
1 |
|
