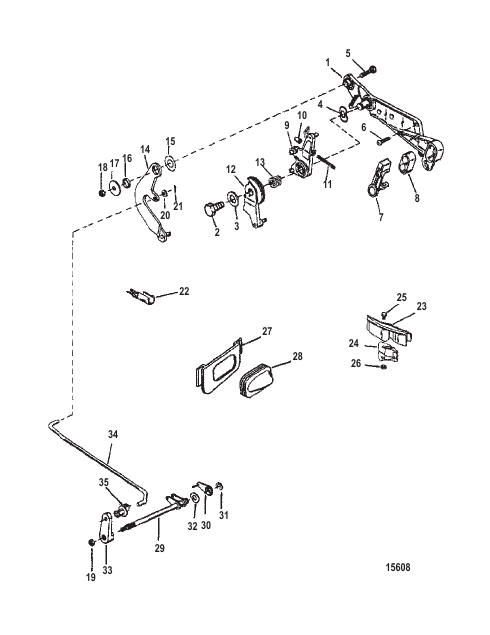

Attaching Kit - Remote Control (20/25 Hp) 2-Stroke
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 95722A7 |
КОМПЛЕКТ КРЕПЕЖА Дистанционное управление (20/25 л. с.) [0B238464] THRU [0G044026] ATTACHING KIT Remote Control (20/25 Hp) [0B238464] THRU [0G044026] |
1 | discontinued |
| 1 | 42026A2 |
ПЛАТФОРМА Remote Control PLATFORM Remote Control |
1 | |
| 10 | 48039 |
ПРОБКА CAP |
1 | |
| 11 | 118591 |
ВИНТ (0.190-32 x 1.750) SCREW (.190-32 x 1.750) |
1 | discontinued |
| 12 | 42343 |
РЫЧАГ Actuating LEVER Actuating |
1 | discontinued |
| 13 | 89540 |
ПРУЖИНА SPRING |
1 | |
| 14 | 43424 |
РЫЧАГ Shift LEVER Shift |
1 | discontinued |
| 15 | 95093 |
ШАЙБА WASHER |
1 | discontinued |
| 16 | 95091 |
РУКАВ SLEEVE |
1 | discontinued |
| 17 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь WASHER (.255 x .620 x .030) Stainless Steel |
1 | |
| 18 | 400634 |
ГАЙКА (M6) NUT (M6) |
1 | superseded |
| 19 | 400633 |
ГАЙКА (M5) NUT (M5) |
1 | superseded |
| 2 | 16955 |
ВИНТ (M6 x 8) SCREW (M6 x 8) |
1 | |
| 20 | 89302 |
ШАЙБА (0.203 x 0.406 x 0.040) WASHER (.203 x .406 x .040) |
1 | |
| 21 | 21071 |
ШПЛИНТ Cotter COTTER PIN Cotter |
1 | superseded |
| 22 | 424291 |
ФИКСАТОР RETAINER |
2 | |
| 23 | 17233F1 |
КРЫШКА (Black) COVER (Black) |
1 | discontinued |
| 23 | 17233F2 |
КРЫШКА (Gray) (Not Used in Kit) COVER (Gray) (Not Used in Kit) |
1 | discontinued |
| 24 | 17627 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 25 | 4000334 |
ВИНТ (M6 x 45) SCREW (M6 x 45) |
1 | discontinued |
| 26 | 400634 |
ГАЙКА (M6) NUT (M6) |
1 | superseded |
| 27 | 416044 |
ПЛАСТИНА PLATE |
1 | superseded |
| 28 | 93527 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | superseded |
| 29 | 95027A6 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT SHAFT |
1 | discontinued |
| 3 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
1 | superseded |
| 30 | 42156 |
РЫЧАГ Backplate LEVER Backplate |
1 | |
| 31 | 95019 |
КОЛЬЦО Стопор (Use Where Applicable) RING Retaining (Use Where Applicable) |
1 | |
| 32 | 34632 |
ШАЙБА Wave WASHER Wave |
1 | discontinued |
| 33 | 17724A1 |
РЫЧАГ В СБОРЕ LEVER ASSEMBLY |
1 | discontinued |
| 34 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Shift Link NOT SOLD SEPARATE Shift Link |
1 | |
| 35 | 932481 |
ВТУЛКА Swivel BUSHING Swivel |
1 | superseded |
| 4 | 69708 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 5 | 4000329 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
AR | superseded |
| 5 | 40011129 |
ВИНТ (M6 x 25), нержавеющая сталь SCREW (M6 x 25) Stainless Steel |
AR | |
| 6 | 40019127 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 7 | 42846A2 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | |
| 8 | 39519 |
КОЛПАЧОК CUP |
1 | |
| 9 | 433601 |
РЫЧАГ Устройство управления LEVER Control |
1 | |
| NS | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 |
