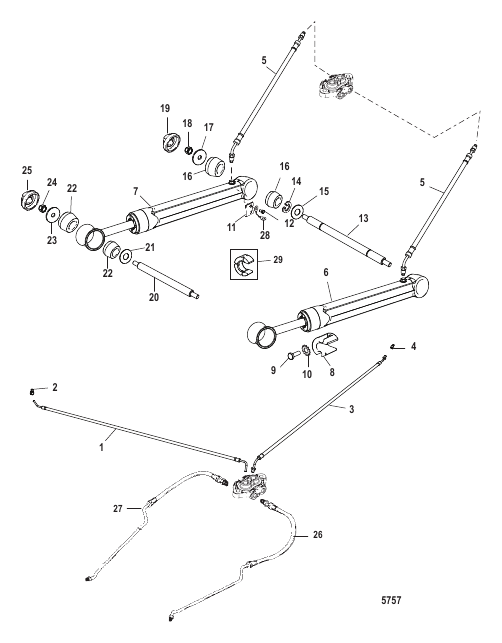

Trim Cylinders and Hydraulic Hoses (Standard Transoms)
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 865384001 |
РУКАВ Черный Hydraulic Manifold to Pump HOSE Black Hydraulic Manifold to Pump |
1 | |
| 10 | 69432 |
СТОПОРНАЯ ШАЙБА Внешний (№10) LOCKWASHER External (#10) |
4 | |
| 11 | 85060 |
ПЛАСТИНА PLATE |
2 | |
| 12 | 85486 |
ВИНТ (0.250-20 x 0.380), нержавеющая сталь SCREW (.250-20 x .380) Stainless Steel |
4 | |
| 13 | 44167A1 |
ШТИФТ Front Anchor PIN Front Anchor |
1 | |
| 14 | 805272 |
КОЛЬЦО Стопор RING Retaining |
2 | |
| 15 | 44164 |
ШАЙБА WASHER |
2 | |
| 16 | 807073 |
ВТУЛКА BUSHING |
4 | |
| 17 | 44163 |
ШАЙБА (0.450 x 1.75 x 0.12) WASHER (.450 x 1.75 x .12) |
2 | |
| 18 | 8M0204653 |
NUT NUT |
2 | |
| 19 | 14842 |
ПРОБКА CAP |
2 | |
| 2 | 865410001 |
ФИТИНГ Быстроразъемное соединение гнезда FITTING Female Quick Connect |
1 | |
| 20 | 44166 |
ШТИФТ Rear Anchor PIN Rear Anchor |
1 | |
| 21 | 44164 |
ШАЙБА WASHER |
2 | |
| 22 | 807073 |
ВТУЛКА BUSHING |
4 | |
| 23 | 44163 |
ШАЙБА (0.450 x 1.75 x 0.12) WASHER (.450 x 1.75 x .12) |
2 | |
| 24 | 8M0204653 |
NUT NUT |
2 | |
| 25 | 14842 |
ПРОБКА CAP |
2 | |
| 26 | 864589 |
HOSE Hydraulic (Starboard) HOSE Hydraulic (Starboard) |
1 | |
| 27 | 864588 |
HOSE Hydraulic (Port) HOSE Hydraulic (Port) |
1 | |
| 28 | 8M0207768 |
CABLE ASSEMBLY CABLE ASSEMBLY |
2 | |
| 29 | 15768A3 |
КОМПЛЕКТ ПРОСТАВОК TILT SPACER KIT TILT |
1 | |
| 3 | 865385001 |
РУКАВ Серый Hydraulic Manifold to Pump HOSE Gray Hydraulic Manifold to Pump |
1 | |
| 4 | 865411001 |
ФИТИНГ Быстроразъемное соединение вилки FITTING Male Quick Connect |
1 | |
| 5 | 99904Q |
РУКАВ Гидравлический Trim Cylinder To Connector HOSE Hydraulic Trim Cylinder To Connector |
2 | |
| 6 | 8M0132610 |
TRIM CYLINDER ASSEMBLY Starboard (See Power Trim Cylinder Repair Kits For Breakdown) TRIM CYLINDER ASSEMBLY Starboard (See Power Trim Cylinder Repair Kits For Breakdown) |
1 | |
| 7 | 8M0132609 |
TRIM CYLINDER ASSEMBLY Port (See Power Trim Cylinder Repair Kits For Breakdown) TRIM CYLINDER ASSEMBLY Port (See Power Trim Cylinder Repair Kits For Breakdown) |
1 | |
| 8 | 806190Q1 |
АНОД В СБОРЕ ANODE ASSEMBLY |
2 | |
| 9 | 806290 |
ВИНТ (№10-32 x 0.625) SCREW (#10-32 x .625) |
4 |
