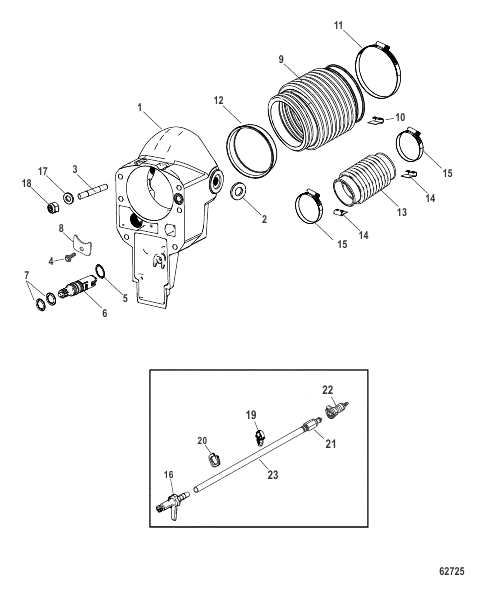

Bell Housing
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0119239 |
БЛОК КОЛОКОЛООБРАЗНОГО КОЖУХА BELL HOUSING ASSEMBLY |
1 | |
| 10 | 8M0126505 |
ЗАЖИМ Заземление CLIP Grounding |
1 | |
| 11 | 815504372 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 12 | 862209 |
РУКАВ SLEEVE |
1 | |
| 13 | 8M0124227 |
СИЛЬФОНЫ В СБОРЕ Exhaust BELLOWS ASSEMBLY Exhaust |
AR | |
| 13 | 78458A1 |
ТРУБА TUBE |
AR | |
| 14 | 8M0126505 |
ЗАЖИМ Заземление CLIP Grounding |
2 | |
| 15 | 815504348 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
2 | |
| 16 | 815303T |
ADAPTOR ADAPTOR |
1 | |
| 17 | 8M0204655 |
WASHER WASHER |
6 | |
| 18 | 859116 |
ГАЙКА (0.437-20) NUT (.437-20) |
6 | |
| 18 | 8M0204653 |
NUT NUT |
6 | |
| 19 | 12994 |
ЗАЖИМ CLIP |
1 | |
| 2 | 8M0204685 |
WASHER WASHER |
2 | |
| 20 | 818557 |
ЗАЖИМ CLAMP |
2 | |
| 21 | 865391 |
ФИТИНГИ В СБОРЕ Спидометр Male Quick Connect FITTING ASSEMBLY Speedometer Male Quick Connect |
1 | |
| 22 | 865417 |
ФИТИНГ Female Quick Connect FITTING Female Quick Connect |
1 | |
| 23 | 5495053 |
ТРУБОПРОВОД (Общая длина 53.00 фт.) TUBING (53.00 Feet Bulk) |
1 | |
| 3 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) STUD (.437-14/.437-20 x 2.812) |
6 | |
| 4 | 8175051 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
1 | |
| 5 | 62705001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 6 | 18920A1 |
КЛАПАН В СБОРЕ (Use With Oil Reservoir) VALVE ASSEMBLY (Use With Oil Reservoir) |
1 | |
| 7 | 48171 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.364. x 0.070) (Use With Oil Reservoir) O-RING (.364. x .070) (Use With Oil Reservoir) |
2 | |
| 8 | 8M0114127 |
ЗАЖИМ CLAMP |
1 | |
| 9 | 8M0062406 |
BELLOWS ASSY Universal Joint BELLOWS ASSY Universal Joint |
1 |
