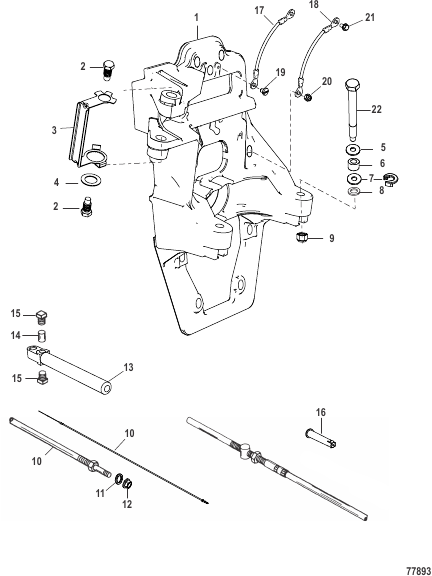

Transom Plate and Shift Cable
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 43433A01 |
КОМПЛЕКТ НАПРАВЛЯЮЩЕЙ GUIDE KIT |
1 | |
| 1 | 8M0138839 |
ПЛАСТИНА В СБОРЕ Транец PLATE ASSEMBLY Transom |
1 | |
| 10 | 8M0176523 |
SHIFT CABLE Shift SHIFT CABLE Shift |
1 | |
| 11 | 8M0214950 |
WASHER Sealing WASHER Sealing |
1 | |
| 12 | 8M0214936 |
NUT NUT |
1 | |
| 13 | 8M0204660 |
GUIDE GUIDE |
1 | |
| 14 | 8M0204661 |
ANCHOR ANCHOR |
1 | |
| 15 | 8M0204644 |
SCREW SET SCREW SET |
2 | |
| 16 | 861632T |
ВСТАВКА INSERT |
1 | |
| 17 | 88238A5 |
КАБЕЛЬ В СБОРЕ Заземление (5.50") CABLE ASSEMBLY Ground (5.50 Inches) |
1 | |
| 18 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО CABLE ASSEMBLY-Grounding NOT SOLD SEPARATE CABLE ASSEMBLY-Grounding |
1 | |
| 19 | 24231 |
ВИНТ (№10-32 x 0.250) SCREW (#10-32 x .250) |
1 | |
| 2 | 8M0113173 |
БОЛТ Pivot BOLT Pivot |
2 | |
| 20 | 8M0204653 |
NUT NUT |
1 | |
| 21 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 23 | 8M0215010 |
SCREW SCREW |
2 | |
| 3 | 879150A34 |
ШАЙБА В СБОРЕ Pivot WASHER ASSEMBLY Pivot |
1 | |
| 4 | 8M2010068 |
ШАЙБА (0.78 x 1.25 x 0.05), нержавеющая сталь Pivot (Bottom) WASHER (.78 x 1.25 x .05) Stainless Steel Pivot (Bottom) |
1 | |
| 5 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий WASHER (.5156 x 1.375 x .125) Aluminum |
2 | |
| 6 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) SPACER (.520 x .870 x .630) |
2 | |
| 7 | 32834 |
ШАЙБА (0.9375 x 1.750 x 0.172) WASHER (.9375 x 1.750 x .172) |
2 | |
| 7 | 8M0096564 |
ШАЙБА Резина U Shape WASHER Rubber U Shape |
2 | |
| 8 | 8M0204665 |
WASHER (.530 x .880 x .104) 630 Stainless Steel WASHER (.530 x .880 x .104) 630 Stainless Steel |
AR | |
| 9 | 863332 |
ГАЙКА (0.500-20), алюминий NUT (.500-20) Aluminum |
2 | |
| NS | 42254 |
ШАЙБА WASHER |
2 |
