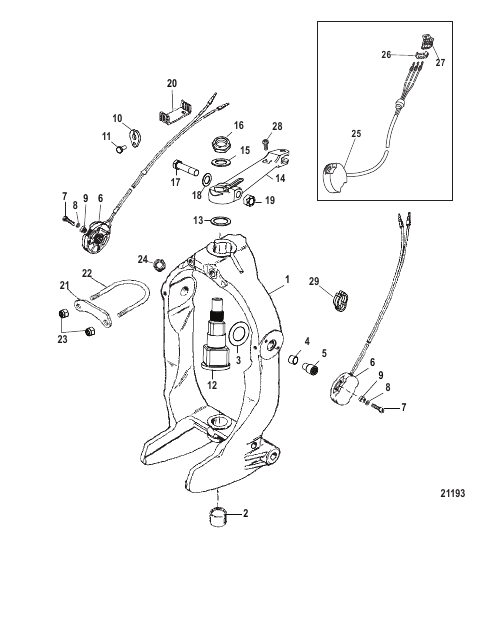

Gimbal Ring and Steering Lever
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822374A4 |
КОЛЬЦО КАРДАНА В СБОРЕ (Gas Applications) [0W465664] & Below GIMBAL RING ASSEMBLY (Gas Applications) [0W465664] & Below |
1 | superseded |
| 1 | 822374A4 |
КОЛЬЦО КАРДАНА В СБОРЕ (Diesel Applications) [0W403949] & Below GIMBAL RING ASSEMBLY (Diesel Applications) [0W403949] & Below |
1 | superseded |
| 1 | 822374A14 |
КОЛЬЦО КАРДАНА В СБОРЕ (Gas Applications) [0W465665] & Up GIMBAL RING ASSEMBLY (Gas Applications) [0W465665] & Up |
1 | superseded |
| 1 | 822374A14 |
КОЛЬЦО КАРДАНА В СБОРЕ (Diesel Applications) [0W403950] & Up GIMBAL RING ASSEMBLY (Diesel Applications) [0W403950] & Up |
1 | superseded |
| 1 | 866456A01 |
КОЛЬЦО КАРДАНА В СБОРЕ (SEACORE) GIMBAL RING ASSEMBLY (SEACORE) |
1 | superseded |
| 10 | 12078 |
ЗАЖИМ CLAMP |
1 | |
| 11 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь SCREW (.250-20 x .620) Stainless Steel |
1 | |
| 12 | 98230A1 |
ВАЛ В СБОРЕ Upper Swivel SHAFT ASSEMBLY Upper Swivel |
1 | |
| 12 | 866718A01 |
ВАЛ В СБОРЕ Upper Swivel (SEACORE) SHAFT ASSEMBLY Upper Swivel (SEACORE) |
1 | |
| 13 | 98548 |
ШАЙБА (1.125) WASHER (1.125 ) |
1 | |
| 14 | 98262A1 |
РЫЧАГ В СБОРЕ Steering LEVER ASSEMBLY Steering |
1 | superseded |
| 15 | 85344 |
ШАЙБА (Внутренний диаметр 0.750) WASHER (.750 Inside Diameter) |
1 | |
| 16 | 82671323 |
ГАЙКА (.750-16) NUT (.750-16) |
1 | superseded |
| 17 | 807204 |
ВИНТ (0.437-20 x 2.00) SCREW (.437-20 x 2.00) |
1 | |
| 18 | 861854 |
ШАЙБА (0.453 x 0.750 x 0.032), нержавеющая сталь WASHER (.453 x .750 x .032) Stainless Steel |
1 | |
| 19 | 8M2008293 |
ГАЙКА (0.437-20) NUT (.437-20) |
1 | |
| 2 | 847638 |
ВТУЛКА BUSHING |
1 | |
| 20 | 79146 |
ФИКСАТОР RETAINER |
1 | |
| 21 | 816510T |
КРОНШТЕЙН BRACKET |
1 | |
| 22 | 805164 |
U-ОБРАЗНЫЙ БОЛТ (Gas Applications) [0W465664] & Below U BOLT (Gas Applications) [0W465664] & Below |
1 | |
| 22 | 805164 |
U-ОБРАЗНЫЙ БОЛТ (Diesel Applications) [0W403949] & Below U BOLT (Diesel Applications) [0W403949] & Below |
1 | |
| 22 | 866324 |
U-ОБРАЗНЫЙ БОЛТ (Gas Applications) [0W465665] & Up U BOLT (Gas Applications) [0W465665] & Up |
1 | superseded |
| 22 | 866324 |
U-ОБРАЗНЫЙ БОЛТ (Diesel Applications) [0W403950] & Up U BOLT (Diesel Applications) [0W403950] & Up |
1 | superseded |
| 23 | 862903 |
ГАЙКА (.375-24) (Gas Applications) [0W465664] & Below NUT (.375-24) (Gas Applications) [0W465664] & Below |
2 | |
| 23 | 862903 |
ГАЙКА (.375-24) (Diesel Applications) [0W403949] & Below NUT (.375-24) (Diesel Applications) [0W403949] & Below |
2 | |
| 23 | 859116 |
ГАЙКА (0.437-20) (Gas Applications) [0W465665] & Up NUT (.437-20) (Gas Applications) [0W465665] & Up |
2 | |
| 23 | 859116 |
ГАЙКА (0.437-20) (Diesel Applications) [0W403950] & Up NUT (.437-20) (Diesel Applications) [0W403950] & Up |
2 | |
| 23 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь (SEACORE) NUT (.437-20) Stainless Steel (SEACORE) |
2 | superseded |
| 24 | 818557 |
ЗАЖИМ CLAMP |
1 | |
| 25 | 863187A1 |
ДАТЧИК В СБОРЕ Дифферент Analog (SmartCraft Series Transom) [Transom 2A417473] & Below SENDER ASSEMBLY Trim Analog (SmartCraft Series Transom) [Transom 2A417473] & Below |
1 | discontinued |
| 25 | 8M0107462 |
КОМПЛЕКТ ДАТЧИКА Дифферент Analog/Digital (SmartCraft Series Transom) [Transom 2A417473] & Below SENDER KIT Trim Analog/Digital (SmartCraft Series Transom) [Transom 2A417473] & Below |
1 | |
| 25 | 8M0095310 |
ДАТЧИК В СБОРЕ Дифферент Digital [Transom 2A417474] & Up SENDER ASSEMBLY Trim Digital [Transom 2A417474] & Up |
1 | |
| 26 | 831957 |
ФИКСАТОР RETAINER |
1 | |
| 27 | 8307973 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 28 | 45742 |
ВИНТ (0.190-32 x 0.312) SCREW (.190-32 x .312) |
1 | |
| 28 | 807754 |
ВИНТ (№10-24 x 0.38) SCREW (#10-24 x .38) |
1 | superseded |
| 29 | 818557001 |
ЗАЖИМ CLAMP |
1 | |
| 3 | 41721 |
ШАЙБА WASHER |
2 | |
| 4 | 847637 |
ВТУЛКА BUSHING |
2 | |
| 5 | 86801 |
ВИНТ Шарнирный болт SCREW Hinge Pin |
2 | |
| 6 | 805320A1 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Trim and Limit (Magnum Series Transom) SWITCH ASSEMBLY Trim and Limit (Magnum Series Transom) |
1 | superseded |
| 7 | 37978 |
ВИНТ (№10-32 x 0.750), нержавеющая сталь SCREW (#10-32 x .750) Stainless Steel |
4 | |
| 8 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
4 | |
| 9 | 57008 |
ФИКСАТОР RETAINER |
4 | |
| NS | 805130A6 |
КОМПЛЕКТ ДАТЧИКА Двойная станция SENDER KIT Dual Station |
1 | |
| NS | 805134A4 |
КОМПЛЕКТ РОТОРА Trim Sender (Magnum Series) ROTOR KIT Trim Sender (Magnum Series) |
AR |
