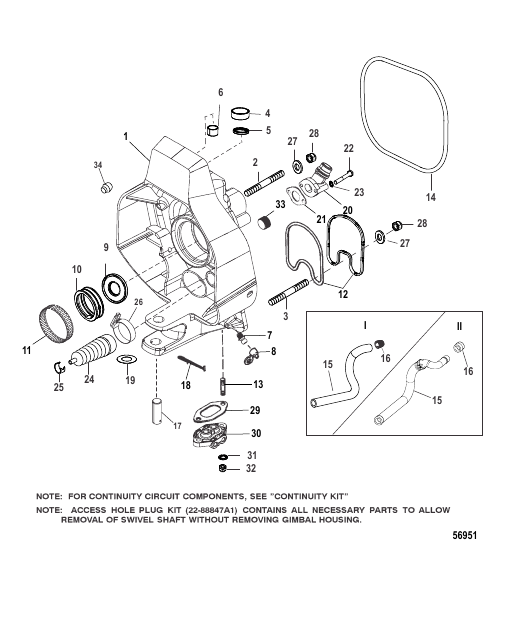

Gimbal Housing (2A514802 and Below)
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88847A1 |
Комплект пробки Смотровое отверстие (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) PLUG KIT Access Hole (Access Hole Plug Kit contains all necessary parts to allow removal of swivel shaft without removing Gimbal Housing) |
1 | |
| 1 | 43881A17 |
КОРПУС КАРДАНА В СБОРЕ GIMBAL HOUSING ASSEMBLY |
1 | superseded |
| 1 | 866454A02 |
КОРПУС КАРДАНА В СБОРЕ (SEACORE) GIMBAL HOUSING ASSEMBLY (SEACORE) |
1 | superseded |
| 10 | 862540A3 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | superseded |
| 11 | 61075 |
КОЛЬЦО ДОПУСКА TOLERANCE RING |
1 | discontinued |
| 12 | 41802 |
УПЛОТНЕНИЕ Резина Without Tabs SEAL Rubber Without Tabs |
1 | |
| 12 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal With Tabs NOT SOLD SEPARATE Seal With Tabs |
1 | |
| 13 | 56766 |
ШПИЛЬКА (0.250-20/0.250-28 x 1.380) STUD (.250-20/.250-28 x 1.380) |
2 | |
| 14 | 43713 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 15 | 43437 |
РУКАВ Water Design I HOSE Water Design I |
1 | discontinued |
| 15 | 8M0062102 |
РУКАВ Water Design II HOSE Water Design II |
1 | |
| 16 | 41674 |
ВСТАВКА Design I INSERT Design I |
1 | superseded |
| 16 | 8M0057042 |
ВСТАВКА Design I INSERT Design I |
1 | |
| 17 | 99353 |
ШАРНИРНЫЙ ПАЛЕЦ Нижняя часть SWIVEL PIN Lower |
1 | superseded |
| 18 | 54929 |
ШПЛИНТ COTTER PIN |
1 | |
| 19 | 32518 |
ШАЙБА WASHER |
1 | |
| 2 | 56296 |
ШПИЛЬКА (0.437-20 x 4.750) STUD (.437-20 x 4.750) |
4 | discontinued |
| 2 | 866562 |
ШПИЛЬКА (0.437-20 x 4.750), нержавеющая сталь (SEACORE) STUD (.437-20 x 4.750) Stainless Steel (SEACORE) |
4 | |
| 20 | 865470 |
КОРПУС Впуск Male Quick Connect HOUSING Inlet Male Quick Connect |
1 | |
| 20 | 43828 |
СОЕДИНИТЕЛЬ (Diesel) CONNECTOR (Diesel) |
1 | superseded |
| 21 | 441081 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 22 | 78038 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 22 | 73015 |
ВИНТ (0.250-20 x 1.75) SCREW (.250-20 x 1.75) |
2 | |
| 23 | 21272 |
СТОПОРНАЯ ШАЙБА (0.250) LOCKWASHER (.250) |
2 | |
| 23 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
2 | |
| 24 | 74639A2 |
СИЛЬФОНЫ В СБОРЕ Shift Cable BELLOWS ASSEMBLY Shift Cable |
1 | |
| 25 | 866507 |
ЗАЖИМ CLAMP |
1 | superseded |
| 26 | 815504320 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | superseded |
| 27 | 34567 |
ШАЙБА WASHER |
8 | |
| 27 | 35935 |
ШАЙБА (0.435 x 0.875 x 0.105), нержавеющая сталь WASHER (.435 x .875 x .105) Stainless Steel |
8 | superseded |
| 28 | 82670815 |
ГАЙКА (0.437-20) NUT (.437-20) |
8 | |
| 29 | 988231 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 818834 |
ШПИЛЬКА (0.437-20 x 4.250) STUD (.437-20 x 4.250) |
4 | discontinued |
| 3 | 866563 |
ШПИЛЬКА (0.437-20 x 4.250), нержавеющая сталь (SEACORE) STUD (.437-20 x 4.250) Stainless Steel (SEACORE) |
4 | |
| 30 | 98825A4 |
ВПУСКНОЙ КОЛЛЕКТОР MANIFOLD ASSEMBLY |
1 | superseded |
| 31 | 78968 |
СТОПОРНАЯ ШАЙБА Внутренний (0.250) LOCKWASHER Internal (.250) |
2 | |
| 32 | 8267119 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | |
| 33 | 428611 |
ФИТИНГ Труба – латунь (0.750-14) FITTING Pipe - Brass (.750-14) |
1 | superseded |
| 34 | 861492 |
ПРОБКА Trim Switch Wires PLUG Trim Switch Wires |
1 | |
| 4 | 983571 |
ВТУЛКА Lower BUSHING Lower |
1 | |
| 5 | 416071 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 5 | 8M2005029 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 6 | 98356 |
ВТУЛКА Upper BUSHING Upper |
1 | |
| 7 | 74036 |
ФИТИНГ Смазка (With greased bearing) FITTING Grease (With greased bearing) |
1 | superseded |
| 7 | 8M2015913 |
ПРОБКА (0.250-28 x 0.320) (With non-greased bearing) PLUG (.250-28 x .320) (With non-greased bearing) |
1 | superseded |
| 8 | 77633Q |
КРЫШКА МАСЛЕНКИ LUBRICAP |
1 | |
| 9 | 88416 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
