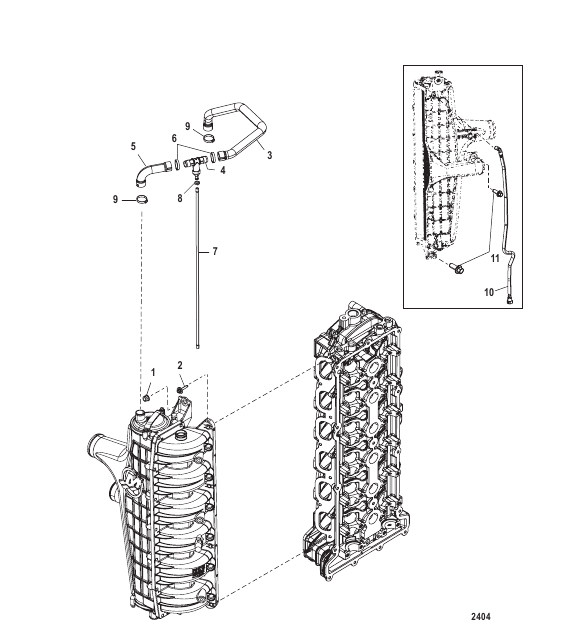

Charge Cooler/Intake Manifold Hose Routings
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose Assembly NOT SOLD SEPARATE Hose Assembly |
1 | |
| 1 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
1 | |
| 10 | 880529 |
РУКАВ Наддув Manifold Reference-Upper HOSE Boost Manifold Reference-Upper |
1 | superseded |
| 11 | 88552730 |
ВИНТ (M10 x 30) SCREW (M10 x 30) |
2 | superseded |
| 2 | 892487001 |
ВИНТ SCREW |
7 | superseded |
| 3 | 889593001 |
РУКАВ HOSE |
1 | |
| 4 | 889633A02 |
ФИТИНГИ В СБОРЕ Промывка [1B108170] & Below FITTING ASSEMBLY Flushing [1B108170] & Below |
1 | superseded |
| 4 | 889633A03 |
ФИТИНГИ В СБОРЕ Промывка [1B108171] & Up FITTING ASSEMBLY Flushing [1B108171] & Up |
1 | superseded |
| 5 | 889592001 |
РУКАВ HOSE |
1 | |
| 6 | 888988008 |
ЗАЖИМ (34,6 ММ) CLAMP (34.6 MM) |
2 | superseded |
| 7 | 892967 |
РУКАВ HOSE |
1 | |
| 8 | 850181 |
ЛЕНТОЧНЫЙ ХОМУТ (11.750") (11-1/2 IN.) TIE STRAP (11.750 Inches) (11-1/2 IN.) |
1 | |
| 9 | 888988008 |
ЗАЖИМ (34,6 ММ) CLAMP (34.6 MM) |
2 | superseded |
