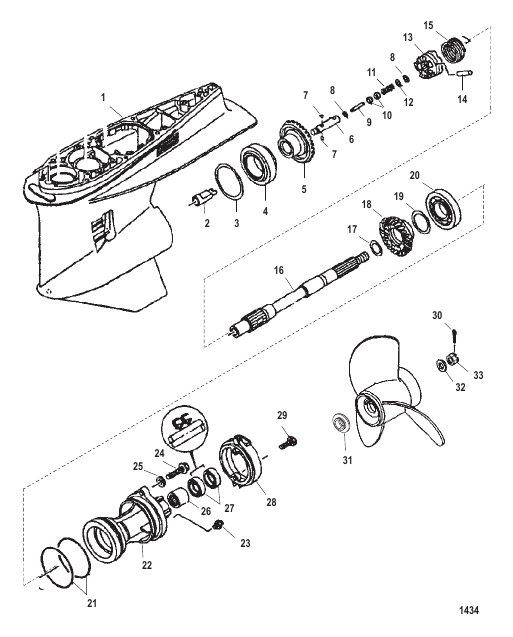

Gear Housing Propeller Shaft - Standard
Parts (41)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 888680T2 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (X-Long) [1B226999] & Below |
1 | superseded |
| - | 888680T06 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (X-Long) [1B227000] & Up |
1 | discontinued |
| - | 888680T3 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (XX-Long) [1B226999] & Below |
1 | superseded |
| - | 888680T07 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (XX-Long) [1B227000] & Up |
1 | |
| - | 888658A03 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807875] & Below GASKET SET Lower Unit [0T807875] & Below |
1 | discontinued |
| - | 888658A04 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807876] & Up GASKET SET Lower Unit [0T807876] & Up |
1 | discontinued |
| 1 | 888680T1 |
КАРТЕР РЕДУКТОРА В СБОРЕ Основной (Basic) GEAR HOUSING ASSEMBLY Basic (Basic) |
1 | discontinued |
| 10 | 888705 |
ПЛУНЖЕР PLUNGER |
2 | discontinued |
| 11 | 8887031 |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 8043051 |
ШАЙБА WASHER |
1 | discontinued |
| 13 | 888702 |
МУФТА СЦЕПЛЕНИЯ CLUTCH |
1 | |
| 14 | 8886331 |
ШТИФТ PIN |
1 | discontinued |
| 15 | 888703 |
ПРУЖИНА SPRING |
1 | discontinued |
| 16 | 888699 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | discontinued |
| 17 | 8043052 |
ШАЙБА WASHER |
1 | discontinued |
| 18 | 888707T |
ПЕРЕДАЧА Задняя [1B226999] & Below GEAR Reverse [1B226999] & Below |
1 | discontinued |
| 18 | 888707T02 |
ПЕРЕДАЧА Задняя [1B227000] & Up GEAR Reverse [1B227000] & Up |
1 | discontinued |
| 19 | 888714A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 2 | 888700 |
РЫЧАГ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFTER |
1 | discontinued |
| 20 | 8886814 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 21 | 8814373 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 22 | 888706T |
КОРПУС Подшипник CARRIER Bearing |
1 | |
| 23 | 8883741 |
ФИТИНГ Смазка FITTING Grease |
1 | discontinued |
| 24 | 8813111 |
БОЛТ BOLT |
2 | superseded |
| 25 | 8043053 |
ШАЙБА WASHER |
2 | discontinued |
| 26 | 8886815 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 27 | 8886941 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | discontinued |
| 28 | 888708 |
ПРОБКА CAP |
1 | discontinued |
| 29 | 881816 |
БОЛТ (M8 x 20) BOLT (M8 x 20) |
2 | discontinued |
| 3 | 888713A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 30 | 887974 |
ШПЛИНТ COTTER PIN |
1 | discontinued |
| 31 | 8539481 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | |
| 32 | 887972 |
ШАЙБА WASHER |
1 | |
| 33 | 887973 |
ГАЙКА ГРЕБНОГО ВИНТА PROP NUT |
1 | superseded |
| 4 | 8886811 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 5 | 888698T |
ПЕРЕДАЧА Передняя [1B226999] & Below GEAR Forward [1B226999] & Below |
1 | discontinued |
| 5 | 888698T02 |
ПЕРЕДАЧА Передняя [1B227000] & Up GEAR Forward [1B227000] & Up |
1 | superseded |
| 6 | 888701 |
ПОЛЗУН ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ SHIFT SLIDE |
1 | discontinued |
| 7 | 82346M |
ШАРИК BALL |
2 | discontinued |
| 8 | 8813142 |
ГАЙКА NUT |
2 | discontinued |
| 9 | 888704 |
ВАЛ SHAFT |
1 | discontinued |
