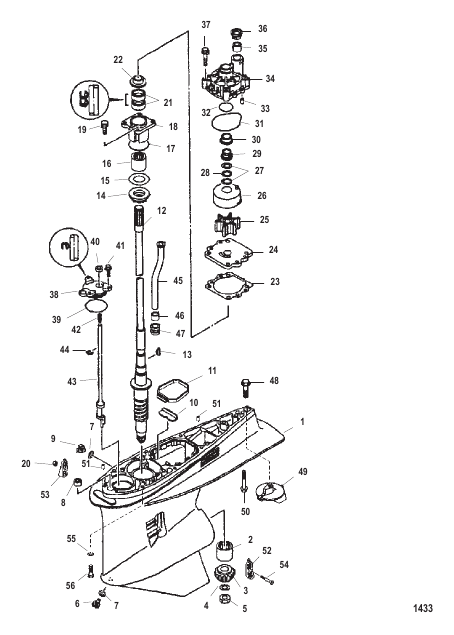

Gear Housing (Driveshaft)(standard/Counter Rotation)
Parts (72)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 888680T2 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long)(Standard) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (X-Long)(Standard) [1B226999] & Below |
1 | superseded |
| - | 888680T06 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long)(Standard) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (X-Long)(Standard) [1B227000] & Up |
1 | discontinued |
| - | 888680T3 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long)(Standard) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (XX-Long)(Standard) [1B226999] & Below |
1 | superseded |
| - | 888680T07 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long)(Standard) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (XX-Long)(Standard) [1B227000] & Up |
1 | |
| - | 888680T4 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long)(Counter Rotation) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (X-Long)(Counter Rotation) [1B226999] & Below |
1 | superseded |
| - | 888680T08 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (X-Long)(Counter Rotation) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (X-Long)(Counter Rotation) [1B227000] & Up |
1 | discontinued |
| - | 888680T5 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long)(Counter Rotation) [1B226999] & Below GEAR HOUSING ASSEMBLY Complete (XX-Long)(Counter Rotation) [1B226999] & Below |
1 | superseded |
| - | 888680T09 |
КАРТЕР РЕДУКТОРА В СБОРЕ В сборе (XX-Long)(Counter Rotation) [1B227000] & Up GEAR HOUSING ASSEMBLY Complete (XX-Long)(Counter Rotation) [1B227000] & Up |
1 | discontinued |
| - | 888658A03 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807875] & Below GASKET SET Lower Unit [0T807875] & Below |
1 | discontinued |
| - | 888658A04 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807876] & Up GASKET SET Lower Unit [0T807876] & Up |
1 | discontinued |
| - | 888687A1 |
РЕМОНТНЫЙ КОМПЛЕКТ Водяной насос REPAIR KIT Water Pump |
1 | discontinued |
| 1 | 888680T1 |
КАРТЕР РЕДУКТОРА В СБОРЕ Основной (Basic) GEAR HOUSING ASSEMBLY Basic (Basic) |
1 | discontinued |
| 10 | 888682 |
НАПРАВЛЯЮЩАЯ GUIDE |
1 | superseded |
| 11 | 8886653 |
ДЕМПФЕР DAMPER |
1 | |
| 12 | 888696 |
ВЕДУЩИЙ ВАЛ (X-Long) DRIVESHAFT (X-Long) |
1 | discontinued |
| 12 | 8886961 |
ВЕДУЩИЙ ВАЛ (XX-Long) DRIVESHAFT (XX-Long) |
1 | discontinued |
| 13 | 8813421 |
КЛЮЧ KEY |
1 | discontinued |
| 14 | 8886813 |
ПОДШИПНИК BEARING |
1 | superseded |
| 15 | 888715A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 16 | 8886812 |
ПОДШИПНИК BEARING |
1 | superseded |
| 17 | 8814372 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 18 | 888693 |
КОРПУС HOUSING |
1 | superseded |
| 19 | 8878272 |
БОЛТ BOLT |
4 | discontinued |
| 2 | 888681 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 20 | 8528165 |
ГАЙКА NUT |
1 | discontinued |
| 21 | 888694 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | discontinued |
| 22 | 888695 |
КРЫШКА COVER |
1 | discontinued |
| 23 | 888692 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 24 | 888691 |
НАРУЖНАЯ ПЛАСТИНА OUTER PLATE |
1 | superseded |
| 25 | 888689 |
КРЫЛЬЧАТКА IMPELLER |
1 | discontinued |
| 26 | 888687 |
ВСТАВКА INSERT |
1 | discontinued |
| 27 | 8556822 |
ШАЙБА WASHER |
2 | |
| 28 | 8883632 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 29 | 888690 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 3 | 888697 |
ПЕРЕДАЧА Шестерня [1B226999] & Below GEAR Pinion [1B226999] & Below |
1 | discontinued |
| 3 | 888697T01 |
ПЕРЕДАЧА Шестерня [1B227000] & Up GEAR Pinion [1B227000] & Up |
1 | superseded |
| 30 | 8886901 |
ВТУЛКА COLLAR |
1 | |
| 31 | 8255792 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 32 | 8814371 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 33 | 82364M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 34 | 888686T |
КОРПУС Водяной насос HOUSING Water Pump |
1 | discontinued |
| 35 | 8886652 |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 36 | 888688 |
КРЫШКА COVER |
1 | discontinued |
| 37 | 8814231 |
БОЛТ BOLT |
4 | discontinued |
| 38 | 888683 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 39 | 8255791 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 4 | 88838012 |
ШАЙБА WASHER |
1 | discontinued |
| 40 | 82257M |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 41 | 85277616 |
БОЛТ BOLT |
3 | discontinued |
| 42 | 8266901 |
ПРУЖИНА SPRING |
1 | discontinued |
| 43 | 888684 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (Standard) SHIFT CAM (Standard) |
1 | discontinued |
| 43 | 8886841 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ (Counter Rotation) SHIFT CAM (Counter Rotation) |
1 | discontinued |
| 44 | 82334M |
КОЛЬЦО Защелка RING Snap |
1 | discontinued |
| 45 | 888709 |
ТРУБА Вода (X-Long) TUBE Water (X-Long) |
1 | superseded |
| 45 | 88870910 |
ТРУБА Вода (XX-Long) TUBE Water (XX-Long) |
1 | superseded |
| 46 | 8886652 |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 47 | 8886651 |
ДЕМПФЕР DAMPER |
1 | |
| 48 | 82801M |
БОЛТ BOLT |
1 | |
| 49 | 888712 |
ТРАНЦЕВАЯ ПЛИТА TRIM TAB |
1 | discontinued |
| 5 | 8813141 |
ГАЙКА NUT |
1 | |
| 50 | 8041171 |
БОЛТ (X-Long) BOLT (X-Long) |
1 | discontinued |
| 50 | 8041172 |
БОЛТ (XX-Long) BOLT (XX-Long) |
1 | discontinued |
| 51 | 8886631 |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 52 | 888710 |
КРЫШКА COVER |
1 | superseded |
| 53 | 8887101 |
КРЫШКА COVER |
1 | superseded |
| 54 | 888711 |
ВИНТ SCREW |
1 | discontinued |
| 55 | 814576M |
ШАЙБА (X-Long) WASHER (X-Long) |
7 | superseded |
| 56 | 888612 |
БОЛТ (X-Long) BOLT (X-Long) |
7 | discontinued |
| 6 | 95632M |
ПРОБКА Слив PLUG Drain |
1 | superseded |
| 7 | 81987 |
ПРОКЛАДКА GASKET |
2 | |
| 8 | 81426M |
УПЛОТНЕНИЕ SEAL |
1 | |
| 9 | 81924M |
ПРОБКА PLUG |
1 | discontinued |
