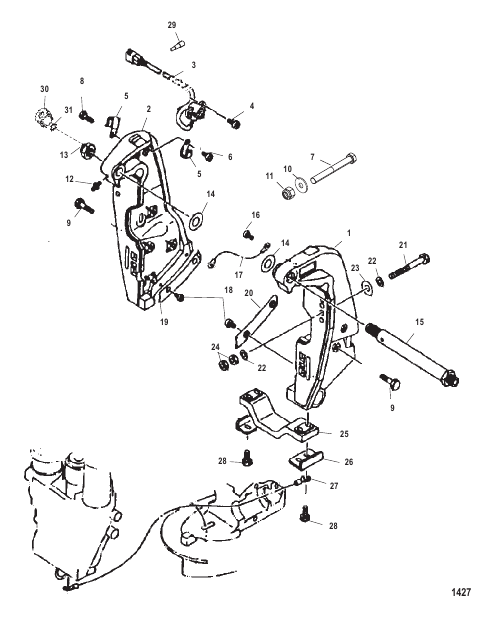

Transom Brackets
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888605T |
КРОНШТЕЙН Транец (Port) BRACKET Transom (Port) |
1 | discontinued |
| 10 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 11 | 82671117 |
ГАЙКА (.500-20) NUT (.500-20) |
4 | |
| 12 | 82369M |
ФИТИНГ FITTING |
1 | |
| 13 | 81787M |
ГАЙКА NUT |
1 | superseded |
| 14 | 8042642 |
ШАЙБА WASHER |
2 | discontinued |
| 15 | 888611 |
БОЛТ BOLT |
1 | discontinued |
| 16 | 8042671 |
ВИНТ SCREW |
1 | discontinued |
| 17 | 16716M |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 18 | 804267 |
ВИНТ SCREW |
4 | discontinued |
| 19 | 8886091 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 2 | 888610T |
КРОНШТЕЙН Транец (Starboard) BRACKET Transom (Starboard) |
1 | discontinued |
| 20 | 888609 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 21 | 8886121 |
БОЛТ (130 мм) BOLT (130 mm) |
4 | discontinued |
| 21 | 8886122 |
БОЛТ (150 мм) BOLT (150 mm) |
2 | discontinued |
| 22 | 8883802 |
ШАЙБА WASHER |
8 | discontinued |
| 23 | 8883803 |
ШАЙБА WASHER |
4 | discontinued |
| 24 | 17090M |
ГАЙКА NUT |
8 | discontinued |
| 25 | 888606 |
АНОД ANODE |
1 | discontinued |
| 26 | 888607 |
ПЛАСТИНА PLATE |
2 | |
| 27 | 888608 |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 28 | 8248326 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
4 | |
| 29 | 13541 |
ПРОБКА Вилка PLUG Male |
1 | |
| 3 | 888617 |
ДАТЧИК Дифферент SENDER Trim |
1 | superseded |
| 30 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 31 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) O-RING (.583 x .103) |
1 | |
| 4 | 83870M |
ВИНТ SCREW |
2 | discontinued |
| 5 | 8556961 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 6 | 8042671 |
ВИНТ SCREW |
1 | discontinued |
| 7 | 677551 |
ВИНТ (0.500-20 x 4.500) SCREW (.500-20 x 4.500) |
4 | superseded |
| 8 | 8255012 |
БОЛТ BOLT |
1 | discontinued |
| 9 | 8886123 |
БОЛТ BOLT |
8 | discontinued |
