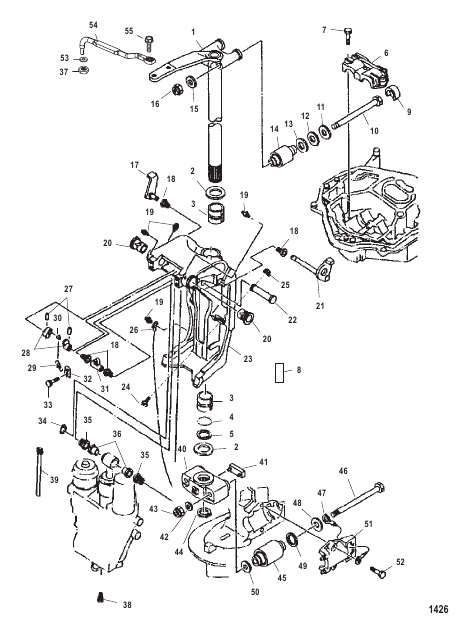

Swivel Bracket and Steering Arm
Parts (57)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888620T |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ SWIVEL PIN ASSEMBLY |
1 | discontinued |
| 10 | 8883892 |
БОЛТ [1B055687] & Below BOLT [1B055687] & Below |
2 | superseded |
| 10 | 888389003 |
БОЛТ [1B055688] & Up BOLT [1B055688] & Up |
2 | superseded |
| 11 | 8883809 |
ШАЙБА WASHER |
2 | discontinued |
| 12 | 88838010 |
ШАЙБА WASHER |
2 | discontinued |
| 13 | 88838011 |
ШАЙБА WASHER |
2 | discontinued |
| 14 | 8886231 |
КРЕПЛЕНИЕ MOUNT |
2 | discontinued |
| 15 | 8883808 |
ШАЙБА WASHER |
2 | discontinued |
| 16 | 8528166 |
ГАЙКА NUT |
2 | discontinued |
| 17 | 8886141 |
РЫЧАГ Ограничитель наклона LEVER Tilt Stop |
1 | discontinued |
| 18 | 17074M |
ВТУЛКА BUSHING |
4 | discontinued |
| 19 | 82369M |
ФИТИНГ FITTING |
5 | |
| 2 | 8528037 |
ШАЙБА WASHER |
2 | discontinued |
| 20 | 8883621 |
ВТУЛКА BUSHING |
2 | discontinued |
| 21 | 888614 |
РЫЧАГ Ограничитель наклона LEVER Tilt Stop |
1 | discontinued |
| 22 | 19239M |
ШТИФТ PIN |
1 | discontinued |
| 23 | 888613T |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 24 | 888618 |
БОЛТ BOLT |
2 | discontinued |
| 25 | 888619 |
ГАЙКА NUT |
2 | discontinued |
| 26 | 8886081 |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 27 | 8041601 |
ШТИФТ PIN |
2 | discontinued |
| 28 | 888615 |
ВТУЛКА COLLAR |
2 | discontinued |
| 29 | 8043941 |
ПРУЖИНА SPRING |
1 | discontinued |
| 3 | 8883811 |
ВТУЛКА BUSHING |
2 | discontinued |
| 30 | 8250871 |
ШТИФТ PIN |
1 | discontinued |
| 31 | 8041161 |
ВТУЛКА COLLAR |
1 | discontinued |
| 32 | 888616 |
КРЮК Пружина HOOK Spring |
1 | discontinued |
| 33 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
1 | discontinued |
| 34 | 17083M |
КОЛЬЦО Защелка RING Snap |
1 | superseded |
| 35 | 85281411 |
ВТУЛКА BUSHING |
2 | discontinued |
| 36 | 85281410 |
ВТУЛКА BUSHING |
2 | discontinued |
| 37 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь NUT (.375-24) Stainless Steel |
1 | superseded |
| 38 | 8255011 |
БОЛТ BOLT |
1 | discontinued |
| 39 | 879650 |
ЗАЖИМ CLAMP |
4 | superseded |
| 4 | 8269182 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 40 | 888621 |
ВИЛКА Нижняя часть YOKE Bottom |
1 | discontinued |
| 41 | 888622 |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 42 | 8883808 |
ШАЙБА WASHER |
2 | discontinued |
| 43 | 8528166 |
ГАЙКА NUT |
2 | discontinued |
| 44 | 8883831 |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 45 | 888623 |
КРЕПЛЕНИЕ MOUNT |
2 | discontinued |
| 46 | 8883891 |
БОЛТ [1B055687] & Below BOLT [1B055687] & Below |
2 | superseded |
| 46 | 888389004 |
БОЛТ [1B055688] & Up BOLT [1B055688] & Up |
2 | superseded |
| 47 | 8886082 |
ПРОВОД ЗАЗЕМЛЕНИЯ GROUND WIRE |
1 | discontinued |
| 48 | 8883806 |
ШАЙБА WASHER |
2 | discontinued |
| 49 | 8883805 |
ШАЙБА WASHER |
2 | discontinued |
| 5 | 8883804 |
ШАЙБА WASHER |
1 | discontinued |
| 50 | 8883807 |
ШАЙБА WASHER |
2 | discontinued |
| 51 | 888624 |
КОРПУС HOUSING |
2 | discontinued |
| 52 | 888612 |
БОЛТ BOLT |
4 | discontinued |
| 53 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
2 | |
| 54 | 92876A10 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ LINK ROD ASSEMBLY |
1 | superseded |
| 55 | 856680 |
ВИНТ (0.375-24 x 1.62) SCREW (.375-24 x 1.62) |
1 | |
| 6 | 888625 |
КРЫШКА COVER |
1 | discontinued |
| 7 | 888612 |
БОЛТ BOLT |
3 | discontinued |
| 8 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Serial Overlaminate NOT SOLD SEPARATE Decal-Serial Overlaminate |
1 | |
| 9 | 8886221 |
ДЕМПФЕР DAMPER |
2 | discontinued |
