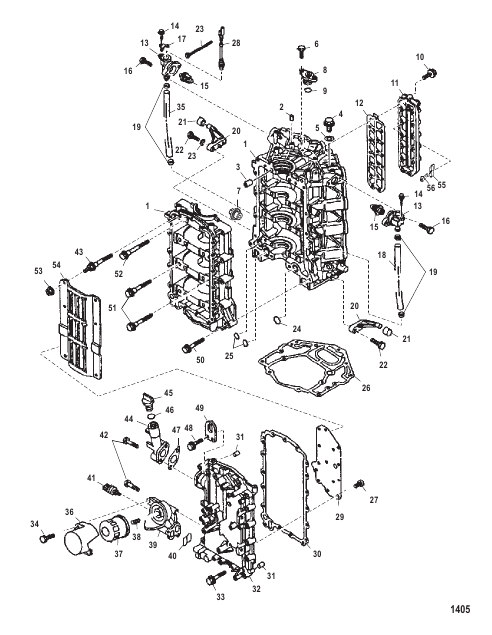

Cylinder Block
Parts (72)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 887844T1 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Starboard) [1B055687] & Below CYLINDER HEAD ASSEMBLY (Starboard) [1B055687] & Below |
1 | superseded |
| - | 887844T05 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Starboard) [1B055688] THRU [1B226999] CYLINDER HEAD ASSEMBLY (Starboard) [1B055688] THRU [1B226999] |
1 | superseded |
| - | 887844T06 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Starboard) [1B227000] & Up CYLINDER HEAD ASSEMBLY (Starboard) [1B227000] & Up |
1 | superseded |
| - | 887845T1 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Port) [1B055687] & Below CYLINDER HEAD ASSEMBLY (Port) [1B055687] & Below |
1 | superseded |
| - | 887845T05 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Port) [1B055688] THRU [1B226999] CYLINDER HEAD ASSEMBLY (Port) [1B055688] THRU [1B226999] |
1 | superseded |
| - | 887845T06 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (Port) [1B227000] & Up CYLINDER HEAD ASSEMBLY (Port) [1B227000] & Up |
1 | superseded |
| - | 885225T03 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B055687] & Below POWERHEAD ASSEMBLY [1B055687] & Below |
1 | superseded |
| - | 885225T05 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B055688] THRU [1B226999] POWERHEAD ASSEMBLY [1B055688] THRU [1B226999] |
1 | superseded |
| - | 885225T06 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B227000] & Up POWERHEAD ASSEMBLY [1B227000] & Up |
1 | superseded |
| - | 887810A03 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807875] & Below GASKET SET Powerhead [0T807875] & Below |
1 | discontinued |
| - | 887810A04 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807876] THRU [1B055687] GASKET SET Powerhead [0T807876] THRU [1B055687] |
1 | discontinued |
| - | 887810A05 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [1B055688] & Up GASKET SET Powerhead [1B055688] & Up |
1 | discontinued |
| 1 | 887792T1 |
БЛОК ЦИЛИНДРА [0T807875] & Below CYLINDER BLOCK [0T807875] & Below |
1 | discontinued |
| 1 | 887792T10 |
БЛОК ЦИЛИНДРА [0T807876] & Up CYLINDER BLOCK [0T807876] & Up |
1 | discontinued |
| 10 | 881427 |
БОЛТ (M6 x 30) BOLT (M6 x 30) |
13 | discontinued |
| 11 | 887804T |
КРЫШКА (Use without Anodes) COVER (Use without Anodes) |
1 | discontinued |
| 11 | 887804T01 |
КРЫШКА (Use with Anodes) COVER (Use with Anodes) |
1 | discontinued |
| 12 | 887805 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 13 | 887806T |
КРЫШКА COVER |
2 | discontinued |
| 14 | 887807 |
БОЛТ BOLT |
1 | discontinued |
| 15 | 8556761 |
ТЕРМОСТАТ 60°C (140°F) THERMOSTAT 60°C (140°F) |
2 | discontinued |
| 16 | 8248326 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
4 | |
| 17 | 815004M |
ПЛАСТИНА PLATE |
2 | discontinued |
| 18 | 8878081 |
РУКАВ HOSE |
1 | discontinued |
| 19 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
4 | |
| 2 | 82364M |
ШТИФТ Штифт PIN Dowel |
1 | discontinued |
| 20 | 804091 |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 21 | 887811 |
ДЕМПФЕР DAMPER |
2 | discontinued |
| 22 | 8248326 |
ВИНТ (M6 x 25 мм) SCREW (M6 x 25 MM) |
4 | |
| 23 | 879650 |
ЗАЖИМ CLAMP |
2 | superseded |
| 24 | 887812 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 25 | 858581 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | superseded |
| 26 | 887810 |
ПРОКЛАДКА [0T807875] & Below GASKET [0T807875] & Below |
1 | |
| 26 | 887810010 |
ПРОКЛАДКА [0T807876] THRU [1B055687] GASKET [0T807876] THRU [1B055687] |
1 | superseded |
| 26 | 887810011 |
ПРОКЛАДКА [1B055688] & Up GASKET [1B055688] & Up |
1 | discontinued |
| 27 | 804120 |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
14 | discontinued |
| 28 | 887823 |
ТЕРМОВЫКЛЮЧАТЕЛЬ THERMO SWITCH |
2 | superseded |
| 29 | 887802 |
КРЫШКА САПУНА BREATHER COVER |
1 | discontinued |
| 3 | 887793 |
ШТИФТ Штифт PIN Dowel |
8 | discontinued |
| 30 | 887825 |
ПРОКЛАДКА GASKET |
1 | |
| 31 | 82364M |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 32 | 887799T |
КРЫШКА COVER |
1 | discontinued |
| 33 | 887800 |
БОЛТ BOLT |
17 | discontinued |
| 34 | 8248329 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
1 | |
| 35 | 8878081 |
РУКАВ HOSE |
1 | discontinued |
| 36 | 887819T |
КРЫШКА COVER |
1 | |
| 37 | 822626T7 |
ФИЛЬТР Масло FILTER Oil |
1 | discontinued |
| 38 | 887816 |
БОЛТ BOLT |
1 | discontinued |
| 39 | 887817T |
КОРПУС Фильтр HOUSING Filter |
1 | discontinued |
| 4 | 825953 |
ПРОБКА (M14 x 12) PLUG (M14 x 12) |
1 | discontinued |
| 40 | 887818 |
ПРОКЛАДКА GASKET |
1 | |
| 41 | 887824T |
ДАТЧИК Давление масла SENDER Oil Pressure |
1 | superseded |
| 42 | 887827 |
БОЛТ BOLT |
5 | discontinued |
| 43 | 887797 |
БОЛТ BOLT |
6 | discontinued |
| 44 | 887820 |
КОРПУС HOUSING |
1 | discontinued |
| 45 | 859578A1 |
УЗЕЛ ПРОБКИ Масло PLUG ASSEMBLY Oil |
1 | |
| 46 | 90196 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.921 x 0.139) O-RING (.921 x .139) |
1 | superseded |
| 47 | 887822 |
ПРОКЛАДКА GASKET |
1 | |
| 48 | 881428 |
БОЛТ (M6 x 16) BOLT (M6 x 16) |
2 | discontinued |
| 49 | 887803 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | discontinued |
| 5 | 81990M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 50 | 881423 |
БОЛТ (M8 x 55) BOLT (M8 x 55) |
13 | superseded |
| 51 | 887796 |
БОЛТ BOLT |
2 | discontinued |
| 52 | 887795 |
БОЛТ BOLT |
8 | discontinued |
| 53 | 887798 |
ГАЙКА NUT |
6 | discontinued |
| 54 | 887794T |
ПЛАСТИНА PLATE |
1 | |
| 55 | 11761001 |
АНОД ANODE |
4 | discontinued |
| 56 | 827443001 |
ВИНТ SCREW |
4 | discontinued |
| 6 | 8257021 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | discontinued |
| 7 | 888408 |
ФИТИНГ FITTING |
1 | discontinued |
| 8 | 887813 |
ПРОБКА PLUG |
1 | discontinued |
| 9 | 887814 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
