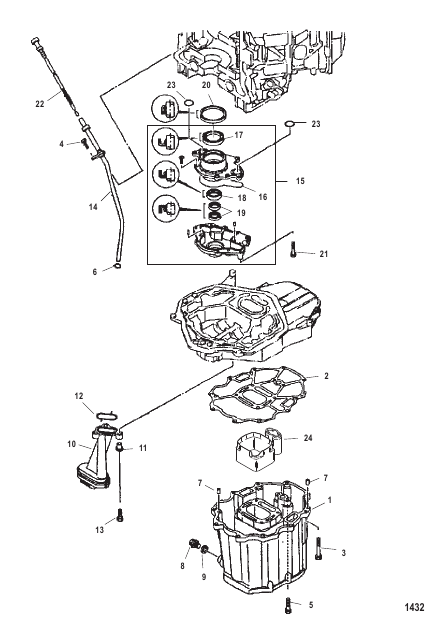

Oil Pan
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 887810A03 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807875] & Below GASKET SET Powerhead [0T807875] & Below |
1 | discontinued |
| - | 887810A04 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807876] THRU [1B055687] GASKET SET Powerhead [0T807876] THRU [1B055687] |
1 | discontinued |
| - | 887810A05 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [1B055688] & Up GASKET SET Powerhead [1B055688] & Up |
1 | discontinued |
| - | 888658A03 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807875] & Below GASKET SET Lower Unit [0T807875] & Below |
1 | discontinued |
| - | 888658A04 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок [0T807876] & Up GASKET SET Lower Unit [0T807876] & Up |
1 | discontinued |
| - | 885225T03 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B055687] & Below POWERHEAD ASSEMBLY [1B055687] & Below |
1 | superseded |
| - | 885225T05 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B055688] THRU [1B226999] POWERHEAD ASSEMBLY [1B055688] THRU [1B226999] |
1 | superseded |
| - | 885225T06 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [1B227000] & Up POWERHEAD ASSEMBLY [1B227000] & Up |
1 | superseded |
| 1 | 888675T |
ПОДДОН Масло PAN Oil |
1 | discontinued |
| 10 | 888676T |
СЕТЧАТЫЙ ФИЛЬТР Масло STRAINER Oil |
1 | discontinued |
| 11 | 85281412 |
ВТУЛКА COLLAR |
3 | discontinued |
| 12 | 888677 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 13 | 8041595 |
БОЛТ BOLT |
3 | discontinued |
| 14 | 888679 |
ТРУБКА ИЗМЕРИТЕЛЬНОГО ЩУПА DIPSTICK TUBE |
1 | discontinued |
| 15 | 888677T1 |
НАСОС В СБОРЕ Масло PUMP ASSEMBLY Oil |
1 | superseded |
| 16 | 8886587 |
ПРОКЛАДКА GASKET |
1 | |
| 17 | 8886771 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 18 | 8886772 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 19 | 8886773 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | discontinued |
| 2 | 8886585 |
ПРОКЛАДКА [0T807875] & Below GASKET [0T807875] & Below |
1 | superseded |
| 2 | 888658008 |
ПРОКЛАДКА [0T807876] & Up GASKET [0T807876] & Up |
1 | |
| 20 | 8886774 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 21 | 824832010 |
БОЛТ BOLT |
4 | discontinued |
| 22 | 888678 |
ЩУП [1B055687] & Below DIPSTICK [1B055687] & Below |
1 | discontinued |
| 22 | 888678001 |
ЩУП [1B055688] & Up DIPSTICK [1B055688] & Up |
1 | discontinued |
| 23 | 887812 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 24 | 891746 |
УПЛОТНЕНИЕ Резина [0T807876] & Up SEAL Rubber [0T807876] & Up |
1 | |
| 3 | 8041594 |
БОЛТ BOLT |
10 | discontinued |
| 4 | 804604 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | discontinued |
| 5 | 82127335 |
ВИНТ (M8 x 35 мм) SCREW (M8 x 35 MM) |
2 | |
| 6 | 804093 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 23784 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 8 | 825953 |
ПРОБКА (M14 x 12) PLUG (M14 x 12) |
1 | discontinued |
| 9 | 8886586 |
ПРОКЛАДКА GASKET |
1 | discontinued |
