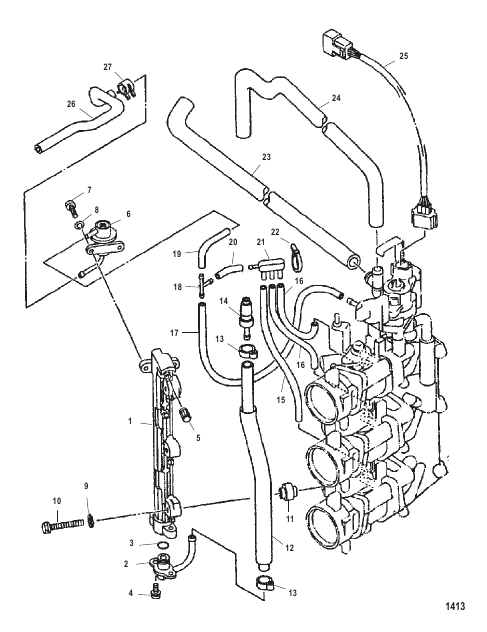

Throttle Body Hose Routing
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 888225T1 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ В СБОРЕ FUEL RAIL ASSEMBLY |
1 | discontinued |
| 10 | 881532 |
БОЛТ (M8 x 45) BOLT (M8 x 45) |
3 | discontinued |
| 11 | 881526 |
ВТУЛКА COLLAR |
3 | discontinued |
| 12 | 888230 |
РУКАВ HOSE |
1 | discontinued |
| 13 | 881331 |
ЗАЖИМ CLIP |
2 | discontinued |
| 14 | 888215 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 15 | 888234 |
РУКАВ HOSE |
1 | discontinued |
| 16 | 888234 |
РУКАВ HOSE |
2 | discontinued |
| 17 | 888234 |
РУКАВ HOSE |
1 | discontinued |
| 18 | 8815581 |
ТРОЙНИК TEE |
1 | |
| 19 | 888234 |
РУКАВ HOSE |
1 | discontinued |
| 2 | 888226 |
ПЛАСТИНА Топливо PLATE Fuel |
1 | discontinued |
| 20 | 881554 |
РУКАВ HOSE |
1 | discontinued |
| 21 | 888235 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 22 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | |
| 23 | 888229 |
РУКАВ HOSE |
1 | discontinued |
| 24 | 888228 |
РУКАВ HOSE |
1 | discontinued |
| 25 | 888237 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 26 | 888236 |
РУКАВ HOSE |
1 | discontinued |
| 27 | 881530 |
ЗАЖИМ CLIP |
1 | discontinued |
| 3 | 881522 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 4 | 881509 |
ВИНТ (M5 x 15) SCREW (M5 x 15) |
2 | discontinued |
| 5 | 881520 |
ПРОБКА CAP |
1 | discontinued |
| 6 | 888227 |
РЕГУЛЯТОР Давление топлива REGULATOR Fuel Pressure |
1 | discontinued |
| 7 | 881524 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | discontinued |
| 8 | 881525 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 9 | 881508 |
ШАЙБА WASHER |
3 | discontinued |
