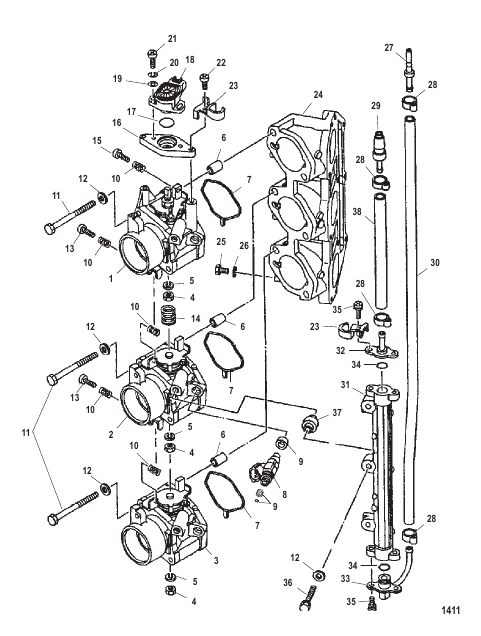

Throttle Body (Starboard)
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 888201T1 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ (Starboard) THROTTLE BODY ASSEMBLY (Starboard) |
1 | discontinued |
| - | 887810A03 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807875] & Below GASKET SET Powerhead [0T807875] & Below |
1 | discontinued |
| - | 887810A04 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807876] THRU [1B055687] GASKET SET Powerhead [0T807876] THRU [1B055687] |
1 | discontinued |
| - | 887810A05 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [1B055688] & Up GASKET SET Powerhead [1B055688] & Up |
1 | discontinued |
| 1 | 888201T2 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Верхняя часть THROTTLE BODY ASSEMBLY Top |
1 | discontinued |
| 10 | 881444 |
ПРУЖИНА SPRING |
5 | discontinued |
| 11 | 888211 |
БОЛТ BOLT |
6 | discontinued |
| 12 | 881508 |
ШАЙБА WASHER |
9 | discontinued |
| 13 | 888213 |
ВИНТ SCREW |
2 | discontinued |
| 14 | 888217 |
ПРУЖИНА SPRING |
1 | discontinued |
| 15 | 881442 |
ВИНТ SCREW |
1 | discontinued |
| 16 | 888203 |
РАЗДЕЛИТЕЛЬНАЯ ПЛАСТИНА SPACER PLATE |
1 | discontinued |
| 17 | 881504 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 18 | 888204T |
ДАТЧИК В СБОРЕ Дроссельная заслонка SENSOR ASSEMBLY Throttle |
1 | discontinued |
| 19 | 881450 |
ШАЙБА WASHER |
2 | |
| 2 | 888201T3 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Центральный THROTTLE BODY ASSEMBLY Center |
1 | discontinued |
| 20 | 82206M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 21 | 881502 |
ВИНТ SCREW |
2 | superseded |
| 22 | 881524 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | discontinued |
| 23 | 888200 |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 24 | 888208T |
КОЛЛЕКТОР MANIFOLD |
1 | discontinued |
| 25 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
3 | discontinued |
| 26 | 827610 |
ПРОКЛАДКА GASKET |
3 | discontinued |
| 27 | 888216 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 28 | 881331 |
ЗАЖИМ CLIP |
4 | discontinued |
| 29 | 888215 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | discontinued |
| 3 | 888201T4 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Нижняя часть THROTTLE BODY ASSEMBLY Bottom |
1 | discontinued |
| 30 | 888218 |
РУКАВ HOSE |
1 | discontinued |
| 31 | 888205T1 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ В СБОРЕ FUEL RAIL ASSEMBLY |
1 | discontinued |
| 32 | 888206 |
ПЛАСТИНА Топливо PLATE Fuel |
1 | discontinued |
| 33 | 888207 |
ПЛАСТИНА Топливо PLATE Fuel |
1 | discontinued |
| 34 | 881522 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 35 | 881509 |
ВИНТ (M5 x 15) SCREW (M5 x 15) |
4 | discontinued |
| 36 | 881532 |
БОЛТ (M8 x 45) BOLT (M8 x 45) |
3 | discontinued |
| 37 | 881526 |
ВТУЛКА COLLAR |
3 | discontinued |
| 38 | 888214 |
РУКАВ HOSE |
1 | discontinued |
| 4 | 888202 |
ГАЙКА NUT |
3 | discontinued |
| 5 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
3 | discontinued |
| 6 | 888210 |
ШТИФТ Штифт PIN Dowel |
6 | discontinued |
| 7 | 888209 |
ПРОКЛАДКА GASKET |
3 | discontinued |
| 8 | 888212 |
ФОРСУНКА В СБОРЕ INJECTOR ASSEMBLY |
3 | discontinued |
| 9 | 885183A1 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА O-RING KIT |
3 | discontinued |
