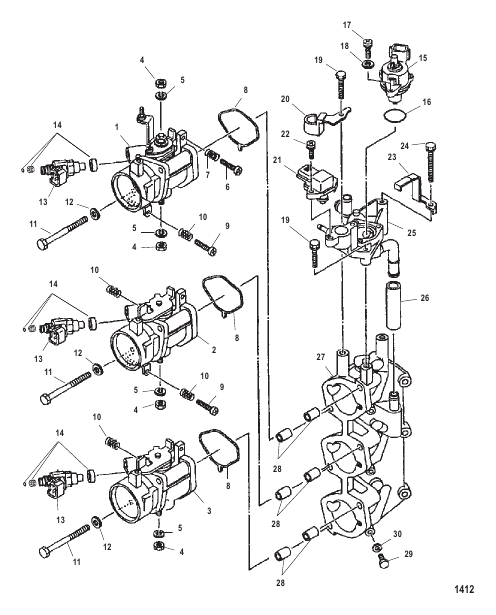

Throttle Body (Port)
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 888201T5 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ (Port) THROTTLE BODY ASSEMBLY (Port) |
1 | discontinued |
| - | 887810A03 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807875] & Below GASKET SET Powerhead [0T807875] & Below |
1 | discontinued |
| - | 887810A04 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0T807876] THRU [1B055687] GASKET SET Powerhead [0T807876] THRU [1B055687] |
1 | discontinued |
| - | 887810A05 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [1B055688] & Up GASKET SET Powerhead [1B055688] & Up |
1 | discontinued |
| 1 | 888201T6 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Верхняя часть THROTTLE BODY ASSEMBLY Top |
1 | discontinued |
| 10 | 881444 |
ПРУЖИНА SPRING |
4 | discontinued |
| 11 | 888211 |
БОЛТ BOLT |
6 | discontinued |
| 12 | 881508 |
ШАЙБА WASHER |
6 | discontinued |
| 13 | 888212 |
ФОРСУНКА В СБОРЕ INJECTOR ASSEMBLY |
3 | discontinued |
| 14 | 885183A1 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА O-RING KIT |
3 | discontinued |
| 15 | 881447T |
КЛАПАН УПРАВЛЕНИЯ CONTROL VALVE |
1 | discontinued |
| 16 | 881448 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 17 | 881449 |
ВИНТ (M4 x 12) SCREW (M4 x 12) |
3 | superseded |
| 18 | 881450 |
ШАЙБА WASHER |
3 | |
| 19 | 888220 |
БОЛТ BOLT |
2 | discontinued |
| 2 | 888201T7 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Центральный THROTTLE BODY ASSEMBLY Center |
1 | discontinued |
| 20 | 888224 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 21 | 880885T |
ДАТЧИК Давление SENSOR Pressure |
1 | discontinued |
| 22 | 881509 |
ВИНТ (M5 x 15) SCREW (M5 x 15) |
2 | discontinued |
| 23 | 888223 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 24 | 888221 |
БОЛТ BOLT |
1 | discontinued |
| 25 | 888219T |
КОРПУС HOUSING |
1 | discontinued |
| 26 | 888222 |
РУКАВ HOSE |
1 | discontinued |
| 27 | 888208T1 |
КОЛЛЕКТОР MANIFOLD |
1 | discontinued |
| 28 | 888210 |
ШТИФТ Штифт PIN Dowel |
6 | discontinued |
| 29 | 84088M |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
3 | discontinued |
| 3 | 888201T8 |
КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ В СБОРЕ Нижняя часть THROTTLE BODY ASSEMBLY Bottom |
1 | discontinued |
| 30 | 827610 |
ПРОКЛАДКА GASKET |
3 | discontinued |
| 4 | 888202 |
ГАЙКА NUT |
4 | discontinued |
| 5 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
4 | discontinued |
| 6 | 881442 |
ВИНТ (Top) SCREW (Top) |
1 | discontinued |
| 7 | 881444 |
ПРУЖИНА (Top) SPRING (Top) |
1 | discontinued |
| 8 | 888209 |
ПРОКЛАДКА GASKET |
3 | discontinued |
| 9 | 888213 |
ВИНТ SCREW |
2 | discontinued |
